Multi Purpose Magnets
Explore Multi Purpose Magnets parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Shape | Magnetization | Material | Finish | Grade | Gauss Strength | Size | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
G16-A-0188-50-030MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
G16-A-0750-25-002MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Magnalox | - | - | 1370G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0500-85-060MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0250-85-064MAGNET 1.005"D X 0.210"THICK CYL |
192 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0500-75-040MAGNET 1.005"D X 0.210"THICK CYL |
191 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|

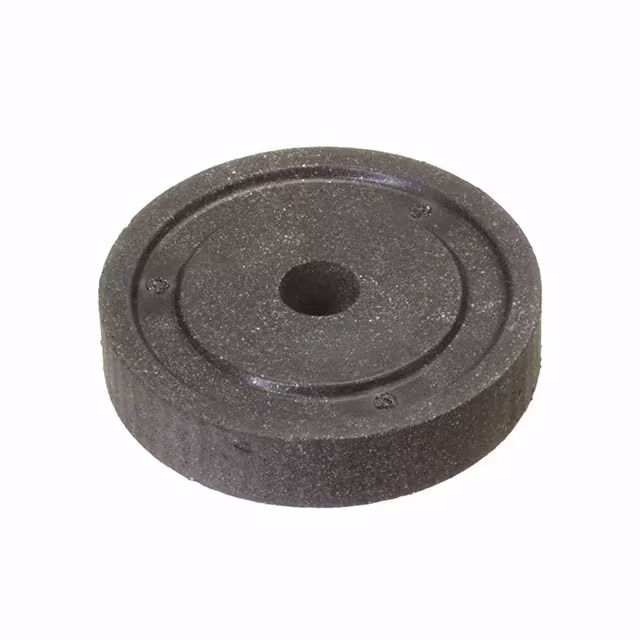

G16-A-0188-85-060MAGNET 1.005"D X 0.210"THICK CYL |
188 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0236-75-036MAGNET 1.005"D X 0.210"THICK CYL |
188 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0375-85-060MAGNET 1.005"D X 0.210"THICK CYL |
184 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0500-50-020MAGNET 1.005"D X 0.210"THICK CYL |
181 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 2500G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0236-85-064MAGNET 1.005"D X 0.210"THICK CYL |
178 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4300G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0315-75-032MAGNET 1.005"D X 0.210"THICK CYL |
169 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
|
G16-A-0157-75-040MAGNET 1.005"D X 0.210"THICK CYL |
159 |
|
Datasheet | G16 | Bulk | Active | Cylindrical | Diametric | Neobond | - | - | 4000G | 1.005" Dia x 0.210" H (25.53mm x 5.33mm) | 125°C (TA) |
|
MSM-226MMAGNET 0.236"D X 1.496"THICK CYL |
173 |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N30H | 11050G | 0.236" Dia x 1.496" H (6.00mm x 38.00mm) | 85°C (TA) |
|
MSM-228MMAGNET 0.315"D X 1.496"THICK CYL |
135 |
|
Datasheet | - | Bulk | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | Nickel (Ni) | N30H | 11900G | 0.315" Dia x 1.496" H (8.00mm x 38.00mm) | 85°C (TA) |
|
102MG15MAGNET 0.311"D X 0.480"THICK CYL |
183 |
|
Datasheet | MG | Bulk | Not For New Designs | Cylindrical | Axial | Alnico 8 (AlNiCo) | - | - | 1050G @ 0.01" | 0.311" Dia x 0.480" H (7.90mm x 12.2mm) | 140°C (TA) |
|
NE3712NP35MAGNET 0.375"D X 0.125"THICK RND |
1,410 |
|
Datasheet | Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.125" H (9.53mm x 3.18mm) | 82.2°C |
|
CA-0036MAGNET 0.800"LX0.250"WX0.250"H |
990 |
|
Datasheet | - | Box | Active | Rectangular | - | Alnico 5 (AlNiCo) | - | C5 | - | 0.800" L x 0.250" W x 0.250" H (20.32mm x 6.35mm x 6.35mm) | 525°C |
|
|
NE5020NP35MAGNET 0.500"D X 0.200"THICK RND |
480 |
|
Datasheet | Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.500" Dia x 0.200" H (12.70mm x 5.08mm) | 82.2°C |
|
|
NE3720NP35MAGNET 0.375"D X 0.200"THICK RND |
436 |
|
Datasheet | Mag-Mate® | Bag | Active | Round | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.200" H (9.53mm x 5.08mm) | 82.2°C |
|
|
NE3725NP35MAGNET 0.375"D X 0.250"THICK CYL |
650 |
|
Datasheet | Mag-Mate® | Bag | Active | Cylindrical | Axial | Neodymium Iron Boron (NdFeB) | NiCuNi | N35 | - | 0.375" Dia x 0.250" H (9.53mm x 6.35mm) | 82.2°C |
Frequently Asked Questions
What are Multi Purpose Magnets components used for?
Multi Purpose Magnets components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Multi Purpose Magnets part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Multi Purpose Magnets parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
