Gates and Inverters
Review Gates and Inverters Logic components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD4012BK3IC GATE NAND 2CH 4-INP 14CFP |
106 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NAND Gate | 2 | 4 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD40106BK3IC INVERT SCHMITT 6CH 1INP 14CFP |
171 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | Inverter | 6 | 1 | Schmitt Trigger | 3V ~ 18V | 20 µA | 6.8mA, 6.8mA | 0.9V ~ 4V | 3.6V ~ 10.8V | 120ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|

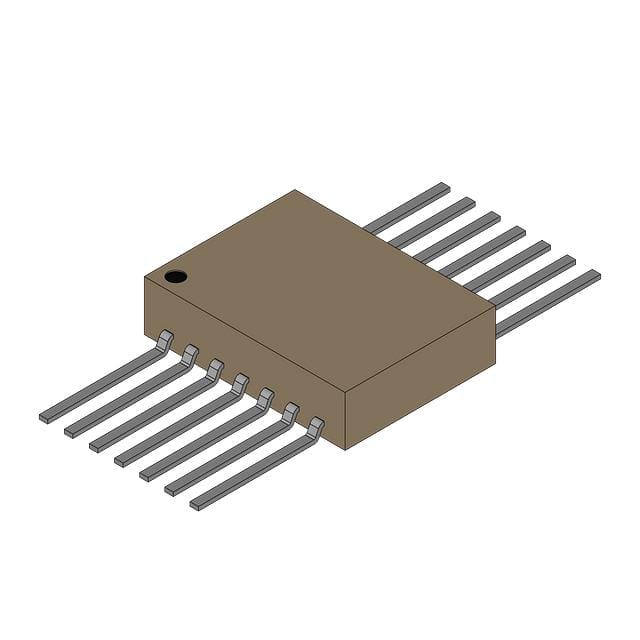

CD4000AKIC GATE NOR 2CH 3-INP 14CFP |
106 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NOR Gate | 2 | 3 | - | 3V ~ 12V | 2 µA | - | - | - | 65ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4023AK3IC GATE NAND 3CH 3-INP 14CFP |
128 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NAND Gate | 3 | 3 | - | 3V ~ 12V | 2 µA | - | - | - | 40ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4081BKIC GATE AND 4CH 2-INP 14CFP |
161 |
|
Datasheet | 4000B | 14-CFlatPack | Bulk | Active | AND Gate | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 90ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4093BKIC GATE NAND 4CH 2-INP 14CFP |
107 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NAND Gate | 4 | 2 | Schmitt Trigger | 3V ~ 18V | 20 µA | 6.8mA, 6.8mA | 2.8V ~ 9.6V | 3.6V ~ 12.7V | 130ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
|
CD4077BKIC GATE XNOR 4CH 2-INP 14CFP |
207 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | XNOR (Exclusive NOR) | 4 | 2 | - | 3V ~ 18V | 5 µA | 6.8mA, 6.8mA | 1.5V ~ 4V | 3.5V ~ 11V | 100ns @ 15V, 50pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
|
CD4049AQBIC HEX BUFFER/CONVERTER |
334 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RCD4001AK3IC GATE NOR QUAD 2-INP |
360 |
|
Datasheet | * | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CD4001AK3IC GATE NOR 4CH 2-INP 14CFP |
240 |
|
Datasheet | - | 14-CFlatPack | Bulk | Active | NOR Gate | 4 | 2 | - | 3V ~ 12V | 2 µA | - | - | - | 65ns @ 10V, 15pF | -55°C ~ 125°C | - | - | Surface Mount | 14-CFP |
