Gates and Inverters
Review Gates and Inverters Logic components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LCX00MIC GATE NAND 4CH 2-INP 14SOIC |
2,925 |
|
Datasheet | 74LCX | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 2V ~ 3.6V | 10 µA | 24mA, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5.2ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
74LCX38SJXIC GATE NAND 4CH 2-INP 14SOP |
1,757 |
|
Datasheet | 74LCX | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | NAND Gate | 4 | 2 | Open Drain | 2V ~ 3.6V | 10 µA | -, 24mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74LVQ86SCXIC GATE XOR 4CH 2-INP 14SOIC |
3,010 |
|
Datasheet | 74LVQ | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | XOR (Exclusive OR) | 4 | 2 | - | 2V ~ 3.6V | 2 µA | 12mA, 12mA | 0.8V | 2V | 11.5ns @ 3.3V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS05AMXIC INVERTER 6CH 1-INP 14SOIC |
4,780 |
|
Datasheet | 74ALS | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | Open Collector | 4.5V ~ 5.5V | - | -, 8mA | 0.8V | 2V | 54ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
|
DM74ALS1000AMIC GATE NAND 4CH 2-INP 14SOIC |
1,871 |
|
Datasheet | 74ALS | 14-SOIC (0.154", 3.90mm Width) | Tube | Obsolete | NAND Gate | 4 | 2 | - | 4.5V ~ 5.5V | - | 2.6mA, 24mA | 0.8V | 2V | 8ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOIC |
|
74AC11SJIC GATE AND 3CH 3-INP 14SOP |
2,016 |
|
Datasheet | 74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74AC11SJXIC GATE AND 3CH 3-INP 14SOP |
3,465 |
|
Datasheet | 74AC | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|
|
74AC32SJIC GATE OR 4CH 2-INP 14SOP |
2,280 |
|
Datasheet | 74AC | 14-SOIC (0.209", 5.30mm Width) | Tube | Obsolete | OR Gate | 4 | 2 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 7.5ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-SOP |
|

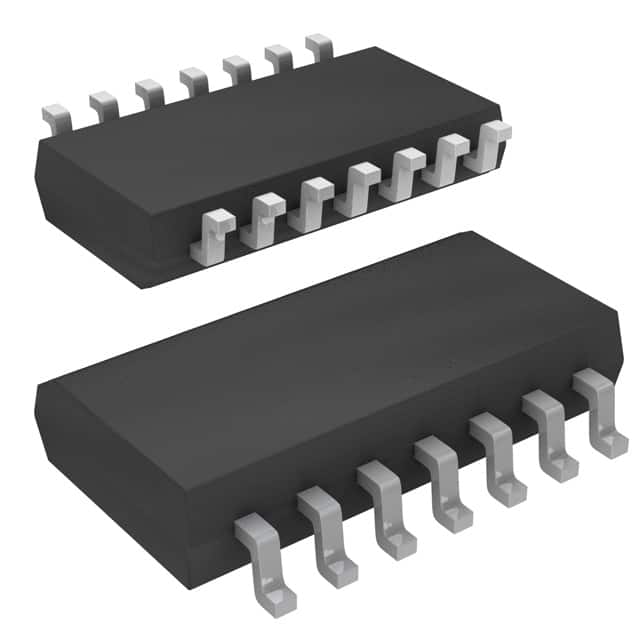

DM74ALS04BSJXIC INVERTER 6CH 1-INP 14SOP |
4,004 |
|
Datasheet | 74ALS | 14-SOIC (0.209", 5.30mm Width) | Tape & Reel (TR) | Obsolete | Inverter | 6 | 1 | - | 4.5V ~ 5.5V | - | 400µA, 8mA | 0.8V | 2V | 11ns @ 5V, 50pF | 0°C ~ 70°C | - | - | Surface Mount | 14-SOP |
|
74AC11MTCIC GATE AND 3CH 3-INP 14TSSOP |
4,180 |
|
Datasheet | 74AC | 14-TSSOP (0.173", 4.40mm Width) | Tube | Obsolete | AND Gate | 3 | 3 | - | 2V ~ 6V | 2 µA | 24mA, 24mA | 0.9V ~ 1.65V | 2.1V ~ 3.85V | 8ns @ 5V, 50pF | -40°C ~ 85°C | - | - | Surface Mount | 14-TSSOP |
