| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Logic Type | Number of Circuits | Number of Inputs | Features | Voltage - Supply | Current - Quiescent (Max) | Current - Output High, Low | Input Logic Level - Low | Input Logic Level - High | Max Propagation Delay @ V, Max CL | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74LVC2G08GT,115IC GATE AND 2CH 2-INP 8XSON |
73,918 |
|
Datasheet | 74LVC | 8-XFDFN | Tape & Reel (TR) | Active | AND Gate | 2 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 0.95V ~ 3.4V | 3.8ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-XSON, SOT833-1 (1.95x1) |
|
74LVC1G11GM,115IC GATE AND 1CH 3-INP 6XSON |
16,829 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 3 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.5ns @ 5V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
|
74LVC1G08GM,115IC GATE AND 1CH 2-INP 6XSON |
14,889 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 4ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
.jpg "74LV1T08GWH")
|
74LV1T08GWHIC GATE AND 1CH 2-INP 5TSSOP |
5,296 |
|
Datasheet | 74LV | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 1.6V ~ 5.5V | 1 µA | 8mA, 8mA | 0.1V ~ 0.3V | 1.28V ~ 4.6V | 4.6ns @ 5V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74LVC2G04GV-Q100HIC INVERTER 2CH 2-INP 6TSOP |
2,887 |
|
Datasheet | 74LVC | SC-74, SOT-457 | Tape & Reel (TR) | Active | Inverter | 2 | 2 | - | 1.65V ~ 5.5V | 10 µA | 32mA, 32mA | 0.7V ~ 0.8V | 1.7V ~ 2V | 3.2ns @ 5V, 50pF | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 6-TSOP |
|
74LVC14AD,118IC INVERT SCHMITT 6CH 1-INP 14SO |
1,952 |
|
Datasheet | 74LVC | 14-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Inverter | 6 | 1 | Schmitt Trigger | 1.2V ~ 3.6V | 40 µA | 24mA, 24mA | 0.12V ~ 0.8V | 1V ~ 2V | 6.4ns @ 3.3V, 50pF | -40°C ~ 125°C | - | - | Surface Mount | 14-SO |
|
|
74LVC1G04GM,115IC INVERTER 1CH 1-INP 6XSON |
1,456 |
|
Datasheet | 74LVC | 6-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.58V ~ 1.65V | 1.07V ~ 3.85V | 5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
|
74AUP1GU04GW,125IC INVERTER 1CH 1-INP 5TSSOP |
34,785 |
|
Datasheet | 74AUP | 5-TSSOP, SC-70-5, SOT-353 | Tape & Reel (TR) | Active | Inverter | 1 | 1 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | - | - | 4.3ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 5-TSSOP |
|
74AUP1G08GS,132IC GATE AND 1CH 2-INP 6XSON |
19,740 |
|
Datasheet | 74AUP | 6-XFDFN | Tape & Reel (TR) | Active | AND Gate | 1 | 2 | - | 0.8V ~ 3.6V | 500 nA | 4mA, 4mA | 0.7V ~ 0.9V | 1.6V ~ 2V | 6.2ns @ 3.3V, 30pF | -40°C ~ 125°C | - | - | Surface Mount | 6-XSON, SOT1202 (1x1) |
|

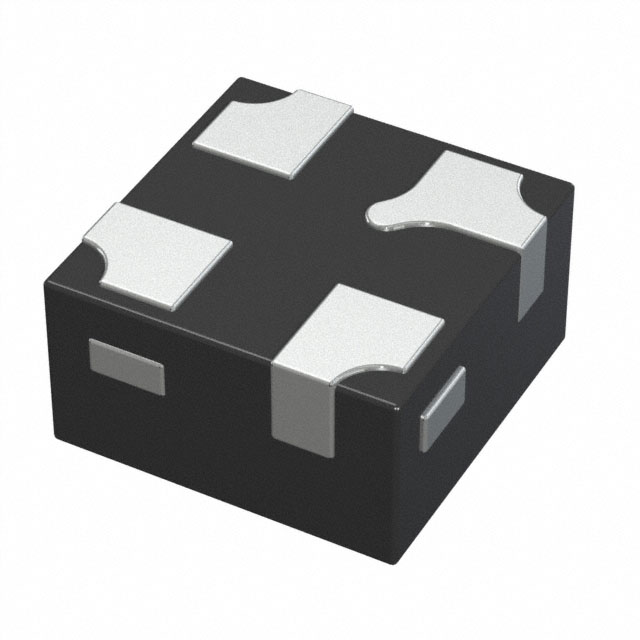

74LVC1G14GX4ZIC INVERT SCHMITT 1CH 1IN 4X2SON |
8,037 |
|
Datasheet | 74LVC | 4-XFDFN | Tape & Reel (TR) | Active | Inverter | 1 | 1 | Schmitt Trigger | 1.65V ~ 5.5V | 4 µA | 32mA, 32mA | 0.46V ~ 1.58V | 1.14V ~ 2.79V | 6.5ns @ 5V, 50pF | -40°C ~ 125°C (TA) | - | - | Surface Mount | 4-X2SON (0.6x0.6) |
