Instrumentation, Op Amps, Buffer Amps
Review Instrumentation, Op Amps, Buffer Amps Linear components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Amplifier Type | Number of Circuits | Output Type | Slew Rate | Gain Bandwidth Product | -3db Bandwidth | Current - Input Bias | Voltage - Input Offset | Current - Supply | Current - Output / Channel | Voltage - Supply Span (Min) | Voltage - Supply Span (Max) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
THS4061MJG180-MHZ HIGH-SPEED AMPLIFIERS 8- |
4,641 |
|
Datasheet | - | 8-CDIP (0.300", 7.62mm) | Tube | Active | Voltage Feedback | 1 | Push-Pull | 500V/µs | - | 180 MHz | 3 µA | 2.5 mV | 7.8mA | 115 mA | 9 V | 32 V | -55°C ~ 125°C (TA) | - | - | Through Hole | 8-CDIP |
|
|
LM124AWBQUAD, 30-V, 1.2-MHZ, 3-MV OFFSET |
2,612 |
|
Datasheet | - | 14-CFlatPack | Tube | Active | General Purpose | 4 | Push-Pull | 0.5V/µs | 1.2 MHz | - | 50 nA | - | 1.4mA | 30 mA | 3 V | 32 V | -55°C ~ 125°C (TA) | - | - | Surface Mount | 14-CFP |
|

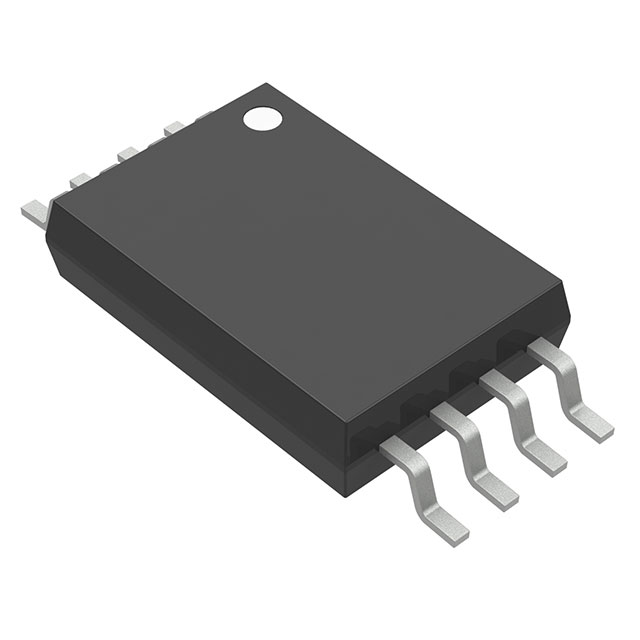

LM358PWR-JFPROTOTYPE |
2,137 |
|
Datasheet | - | 8-TSSOP (0.173", 4.40mm Width) | Bulk | Obsolete | General Purpose | 2 | Push-Pull | 0.3V/µs | 700 kHz | - | 20 nA | 3 mV | 500µA (x2 Channels) | 30 mA | 3 V | 30 V | 0°C ~ 70°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-TSSOP |
|
|
TLE2142MFKBHIGH SPEED HIGH DRIVE PRECISION |
1,851 |
|
Datasheet | Excalibur™ | 20-CLCC | Tube | Active | General Purpose | 2 | Push-Pull, Rail-to-Rail | 45V/µs | 5.9 MHz | - | 700 nA | 290 µV | 6.9mA | 50 mA | 4 V | 44 V | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
LM158A MDRSPACE-GRADE, DUAL, 32-V, 700-KHZ |
1,845 |
|
Datasheet | - | Die | Tube | Active | General Purpose | 2 | Push-Pull | 0.3V/µs | 700 kHz | - | 50 nA | - | 1mA | 20 mA | 3 V | 32 V | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | Die |
|
|
LMH6702WGFLQMLVPROTOTYPE |
2,672 |
|
Datasheet | - | 10-CSOIC (0.241", 6.12mm Width) | Bulk | Active | Current Feedback | 1 | Single-Ended | 3100V/µs | - | 1.7 GHz | 8 µA | 1 mV | 12.5mA | 80 mA | 8 V | 12 V | -55°C ~ 125°C | - | - | Surface Mount | 10-CFP |
|
|
THS4051MFKB70-MHZ HIGH-SPEED AMPLIFIER 20-L |
2,824 |
|
Datasheet | - | 20-CLCC | Tube | Active | Voltage Feedback | 1 | Push-Pull | 240V/µs | 70 MHz | 38 MHz | 2.5 µA | 2.5 mV | 8.5mA | 100 mA | 9 V | 32 V | -55°C ~ 125°C | - | - | Surface Mount | 20-LCCC (8.89x8.89) |
|
|
LMC6035IMX/S5000965PROTOTYPE |
1,107 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Bulk | Obsolete | CMOS | 2 | Differential, Rail-to-Rail | 1.5V/µs | 1.4 MHz | - | 0.2 pA | 500 µV | 650µA (x2 Channels) | 8 mA | 2 V | 15.5 V | -40°C ~ 85°C | Automotive | AEC-Q100 | Surface Mount | 8-SOIC |
|
|
LM101AHLQMLVSPACE-GRADE, SINGLE, 40-V, 250-K |
4,063 |
|
Datasheet | - | TO-99-8 Metal Can | Tube | Active | General Purpose | 1 | Push-Pull | 0.3V/µs | 250 kHz | - | 75 nA | - | - | 60 mA | 10 V | 44 V | -55°C ~ 125°C (TA) | - | - | Through Hole | TO-99-8 |
|
|
LMV844QMAX-B/NOPBPROTOTYPE |
3,996 |
|
Datasheet | LMV® | 14-SOIC (0.154", 3.90mm Width) | Bulk | Active | General Purpose | 4 | Rail-to-Rail | 2.5V/µs | 4.5 MHz | - | 0.3 pA | 50 µV | 1.03mA (x4 Channels) | 37 mA | 2.7 V | 12 V | -40°C ~ 125°C | Automotive | AEC-Q100 | Surface Mount | 14-SOIC |
Frequently Asked Questions
What are Instrumentation, Op Amps, Buffer Amps components used for?
Instrumentation, Op Amps, Buffer Amps components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Instrumentation, Op Amps, Buffer Amps part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Instrumentation, Op Amps, Buffer Amps parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
