Isolators - Gate Drivers
Review Isolators - Gate Drivers Isolators components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACFL-3161T-000EAUTOMOTIVE OPTOCOUPLER, LF |
3,727 |
|
Datasheet | - | 12-BSOP (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 95ns, 95ns | 25ns | 7ns, 7ns | 6A, 6A | 10A | 1.55V | 20 mA | 15V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 12-SO Stretched | CSA, IEC/EN/DIN, UR, VDE |
|
HCPL-3180OPTOISO 3.75KV 1CH GATE DVR 8DIP |
3,201 |
|
Datasheet | - | 8-DIP (0.300", 7.62mm) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 200ns, 200ns | 65ns | 25ns, 25ns | 2A, 2A | 2.5A | 1.5V | 25 mA | 10V ~ 20V | - | - | -40°C ~ 125°C | Through Hole | 8-DIP | CSA, UR |
|
|
ACFJ-332B-000EGATE DRIVE OPTOCOUPLER,IEC+LF |
3,904 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tube | Active | Optical Coupling | 2 | 5000Vrms | 150kV/µs | 65ns, 65ns | 22ns | 10ns, 10ns | 2.5A, 2.4A | 4A | - | - | 10V ~ 25V | - | - | -40°C ~ 125°C | Surface Mount | 24-SO | cUR, UR |
|
|
ACFJ-332BT-000EAUTOMOTIVE OPTOCOUPLER, LF |
4,917 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width), 20 Leads | Tube | Active | Optical Coupling | 2 | 5000Vrms | 150kV/µs | 65ns, 65ns | 22ns | 10ns, 10ns | 2.5A, 2.4A | 4A | - | - | 10V ~ 25V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SO | cUL, UL |
|
|
ACPL-338J-000EPLASTIC OPTOCOUPLER LEADFREE |
3,875 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 135ns, 135ns | 30ns | 20ns, 10ns | 2A, 2A | 3A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|
|
ACPL-334J-000EPLASTIC OPTOCOUPLER LEADFREE |
3,626 |
|
Datasheet | - | 16-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 100kV/µs | 135ns, 135ns | 30ns | 20ns, 10ns | 2A, 2A | 3A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|
|
ACFJ-3531T-000EAUTOMOTIVE OPTOCOUPLER, LF |
1,502 |
|
Datasheet | - | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 50kV/µs | 200ns, 200ns | 100ns | 15ns, 15ns | 1.5A, 1.5A | 1.5A | 1.55V | 20 mA | 17.4V ~ 19.2V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CSA, IEC/EN/DIN, UR, VDE |
|

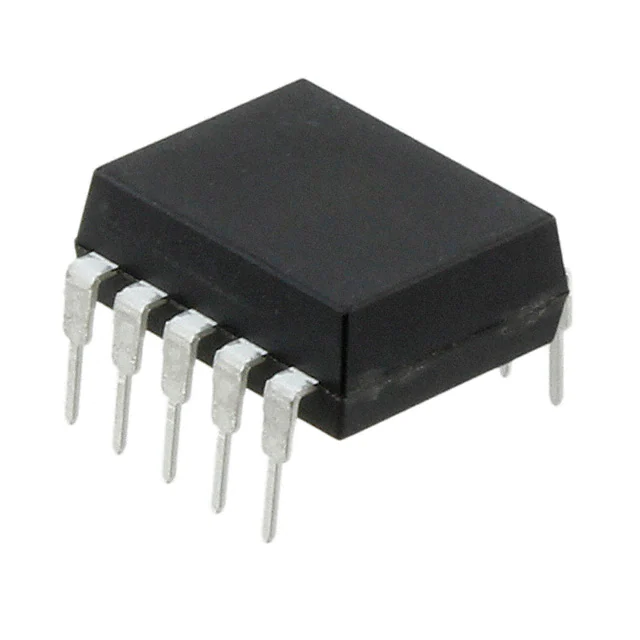

ACNV3130-000EOPTOISO 7.5KV 1CH GATE DVR 10DIP |
4,661 |
|
Datasheet | - | 10-DIP (0.512", 13.01mm) | Tube | Active | Optical Coupling | 1 | 7500Vrms | 40kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 2A, 2A | 2.5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 105°C | Through Hole | 10-DIP | CSA, IEC/EN/DIN, UR |
|
HCPL-3020-300EOPTOISO 3.75KV 1CH GT DVR 8DIP |
4,040 |
|
Datasheet | - | 8-SMD, Gull Wing | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-DIP Gull Wing | CSA, UR |
|
HCPL-0302-060EOPTOISO 3.75KV 1CH GATE DVR 8SO |
3,602 |
|
Datasheet | - | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 10kV/µs | 700ns, 700ns | - | 50ns, 50ns | 200mA, 200mA | 400mA | 1.5V | 20 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, IEC/EN/DIN, UR |
Frequently Asked Questions
What are Isolators - Gate Drivers components used for?
Isolators - Gate Drivers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Isolators - Gate Drivers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Isolators - Gate Drivers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
