Analog Switches - Special Purpose
Explore Analog Switches - Special Purpose parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FSAV430QSCXIC VIDEO SWITCH QUAD 2X1 16QSOP |
3,471 |
|
Datasheet | - | 16-LSSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 4 | 6Ohm | 3V ~ 3.6V | - | 1.1GHz | Bi-Directional, RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
FSUSB40L10XIC USB SWITCH DPDT 10MICROPAK |
3,406 |
|
Datasheet | - | 10-UFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 720MHz | Break-Before-Make, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MicroPak™ |
|
MAX4850ETE+TIC SWITCH DUAL SPDT 16TQFN |
1,617 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio, USB | 2:1 | SPDT | 2 | 9Ohm | 2V ~ 5.5V | - | 135MHz | Break-Before-Make, USB 1.1, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
FSUSB22BQXIC USB SWITCH QUAD 2X1 16DQFN |
4,868 |
|
Datasheet | - | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 4 | 6.5Ohm | 3V ~ 3.6V | - | 750MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-DQFN (2.5x3.5) |
|

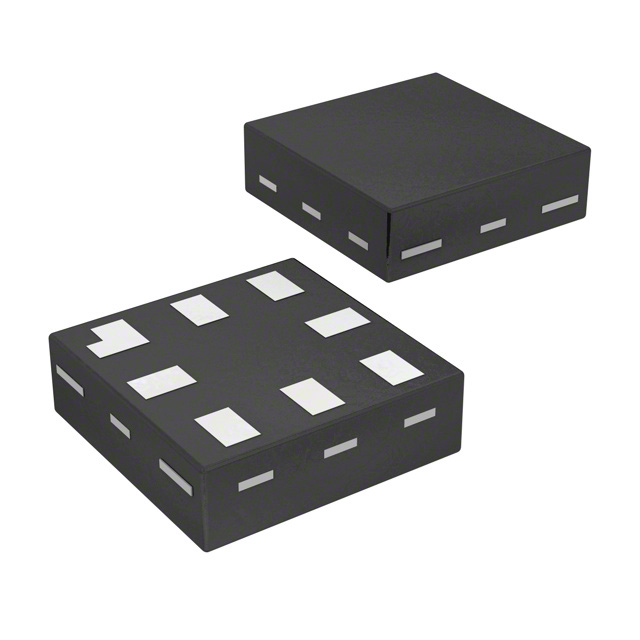

PI3USB32XAEXIC USB SWITCH 8TLLGA |
2,491 |
|
Datasheet | - | 8-UFLGA | Tape & Reel (TR) | Obsolete | USB | 2:1 | - | 1 | 10Ohm | 3V ~ 4.3V | - | 2.11GHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TLLGA (1.5x1.5) |
|
MAX4906FELB+TG24IC USB SWITCH DUAL 1X2 10UDFN |
4,849 |
|
Datasheet | - | 10-WFDFN | Tape & Reel (TR) | Obsolete | USB | 2:1 | SPDT | 2 | 7Ohm | 3V ~ 3.6V | - | 1GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
MAX4764ETB+TG104IC SWITCH DUAL SPDT 10TDFN |
3,772 |
|
Datasheet | - | 10-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 2 | 850mOhm | 1.8V ~ 5.5V | - | 27MHz | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-TDFN (3x3) |
|
CBTU04082BS,518IC MUX 4 X 2:1 42HVQFN |
3,314 |
|
Datasheet | - | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | DisplayPort, PCIe, Video | 2:1 | - | 4 | - | 1.8V ~ 2V | - | 4.1GHz | LVDS, SATA | -40°C ~ 105°C (TA) | - | - | Surface Mount | 42-HVQFN (3.5x9) |
|
PI3V514BEIC VIDEO MUX/DEMUX 4X1 48BQSOP |
4,256 |
|
Datasheet | - | 48-FSOP (0.154", 3.90mm Width) | Tube | Obsolete | Video | 4:1 | - | 5 | 8Ohm | 2.5V, 3.3V | - | 400MHz | RGB | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-BQSOP |
|
PI3VDP3212ZLE+DAIC DEMULTIPLEXER 2LANE 32TQFN |
2,336 |
|
Datasheet | - | 32-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | 10Ohm (Typ) | 3.3V | - | 4.7GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
|
|
MAX4745HELB+TIC SWITCH DUAL SPDT 10UDFN |
1,914 |
|
Datasheet | - | 10-WFDFN | Tape & Reel (TR) | Obsolete | Audio | 2:1 | SPDT | 2 | 950mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-µDFN (2x2) |
|
MAX4587EUB+TIC AUDIO/VIDEO MUXI 4X1 10UMAX |
1,564 |
|
Datasheet | - | 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) | Tape & Reel (TR) | Obsolete | Audio, Video | 4:1 | - | 1 | 65Ohm | 2.7V ~ 5.5V | - | 300MHz | Break-Before-Make, SPI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX14510EEVB+TIC AUD SWITCH USB 2.0 HS 10UTQFN |
1,076 |
|
Datasheet | - | 10-UFQFN | Tape & Reel (TR) | Active | Audio, USB | 2:1, 2:2 | - | 2 | 5Ohm | 2.7V ~ 5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.4x1.8) |
|
MAX4908EBC+TIC MULTIPLEXER DUAL 3X1 12UCSP |
3,689 |
|
Datasheet | - | 12-WFBGA, CSPBGA | Tape & Reel (TR) | Obsolete | Audio | 3:1 | SP3T | 2 | 750mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UCSP |
|
PI3CH1012QEIC SWITCH SPST 500MHZ 24QSOP |
2,216 |
|
Datasheet | - | 24-SSOP (0.154", 3.90mm Width) | Tube | Obsolete | - | 1:1 | SPST | 10 | 8Ohm | 3.3V | - | 500MHz | Differential Compatibility | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-QSOP |
|
PI3WVR31313AZLEXIC MUX/DEMUX 3:1 15 OHM 60TQFN |
3,017 |
|
Datasheet | - | 60-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | HDMI | 3:1 | - | 4 | 50Ohm | 3V ~ 3.6V | - | 5.6GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
|
PI3L110QEXIC ETHERNET SWITCH QUAD 16QSOP |
3,434 |
|
Datasheet | - | 16-SSOP (0.154", 3.90mm Width) | Tape & Reel (TR) | Obsolete | Telecommunications | 2:1 | - | 4 | 8Ohm | 3V ~ 3.6V | - | 350MHz | 10/100 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
NJU7311AM#IC SWITCH DUAL SPST 30DMP |
3,123 |
|
Datasheet | - | - | Tube | Obsolete | - | - | - | 1 | 200Ohm | - | ±8V ~ 16V | - | - | -30°C ~ 75°C (TA) | - | - | Surface Mount | 30-SO |
|
MAX4908EWC+TIC MULTIPLEXER DUAL 3X1 12WLP |
4,311 |
|
Datasheet | - | 12-WFBGA, WLBGA | Tape & Reel (TR) | Active | Audio | 3:1 | SP3T | 2 | 750mOhm | 1.8V ~ 5.5V | - | - | Break-Before-Make, Clickless | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-WLP (2.14x1.56) |
|
TS5L100DG4IC ETHERNET SWITCH QUAD 16SOIC |
3,188 |
|
Datasheet | - | 16-SOIC (0.154", 3.90mm Width) | Tube | Discontinued at Digi-Key | Networking | 2:1 | SPDT | 4 | 19Ohm | 6V ~ 6.5V | - | 350MHz | 10/100 Base-T | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
Frequently Asked Questions
What are Analog Switches - Special Purpose components used for?
Analog Switches - Special Purpose components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches - Special Purpose part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches - Special Purpose parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
