Analog Switches, Multiplexers, Demultiplexers
Explore Analog Switches, Multiplexers, Demultiplexers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9204202XAIC SW SP4TX2 100OHM 16FLATPACK |
4,867 |
|
Datasheet | - | Bulk | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | - | ±15V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-Flatpack |
|
|
DG1411EEQ-T1-GE3IC SWITCH SPST-NC X 4 1.8OHM |
4,680 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 1.8Ohm | 80mOhm | 4.5V ~ 24V | ±4.5V ~ 15V | 150ns, 120ns | 210MHz | -20pC | 11pF, 24pF | 500pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | - | - |
|
DG2788ADN-T1-E4IC SW DPDTX2 500MOHM 16MINIQFN |
3,801 |
|
Datasheet | - | Tape & Reel (TR) | Active | DPDT | 2:1 | 2 | 500mOhm | 50mOhm | 1.8V ~ 5.5V | - | 50µs, 1µs | 338MHz | -245pC | - | 100nA | -61dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
ADG506AKPZ-REELIC MUX 16:1 300OHM 28PLCC |
3,965 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKP-REELIC MUX 16:1 300OHM 28PLCC |
3,421 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
|
|
ADG506AKPZ-RLIC MUX 16:1 300OHM 28PLCC |
4,212 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-PLCC (11.51x11.51) |
.jpg "ADG731BCP_REEL7")
|
ADG731BCP_REEL7IC MUX 32:1 5.5OHM 48LFCSP |
1,797 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 32:1 | 1 | 5.5Ohm | - | 1.8V ~ 5.5V | ±2.5V | - | 18MHz | 1pC | 13pF, 260pF | 250pA | -72dB @ 1MHz | -40°C ~ 80°C (TA) | - | - | Surface Mount | 48-LFCSP (7x7) |
|

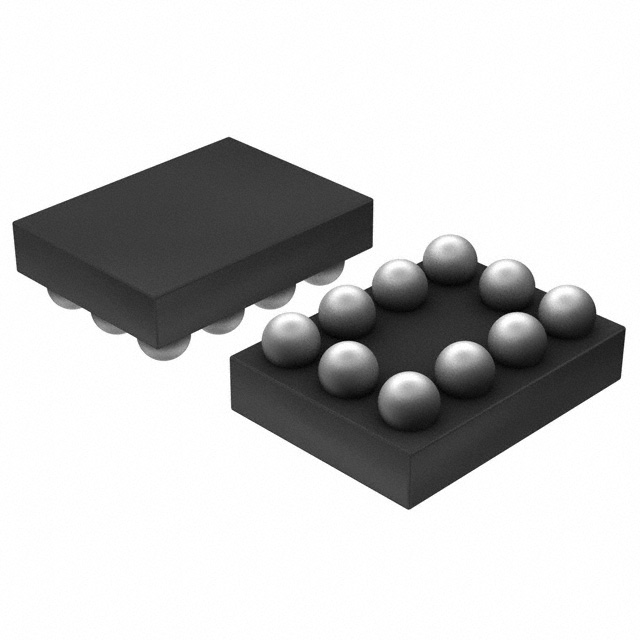

ADG787BCB-REELIC SWITCH SPDT X 2 3OHM 10WLCSP |
3,351 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
ADG802BRT-1REELIC SW SPST-NCX1 300MOHM SOT23-6 |
2,364 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG802BRT-1REEL7IC SW SPST-NCX1 300MOHM SOT23-6 |
4,769 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG1202BRJZ-R2IC SW SPST-NOX1 200OHM SOT23-6 |
3,752 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 200Ohm | - | - | ±5V ~ 16.5V | 170ns, 105ns | 660MHz | -0.8pC | 2.4pF, 2.8pF | 100pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG1202BRJZ-REEL7IC SW SPST-NOX1 200OHM SOT23-6 |
3,453 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 200Ohm | - | - | ±5V ~ 16.5V | 170ns, 105ns | 660MHz | -0.8pC | 2.4pF, 2.8pF | 100pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
|
ADG426BRSZ-REEL7IC MUX 16:1 80OHM 28SSOP |
1,011 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 80Ohm | 4Ohm | 12V | ±15V | 160ns, 150ns | - | 8pC | 5pF, 50pF | 500pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SSOP |
|
ADG774BRQ-500RL7IC SWITCH SPDT X 4 2.2OHM 16QSOP |
1,698 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 2.2Ohm (Typ) | 150mOhm | 3V ~ 5V | - | 15ns, 8ns | 240MHz | 10pC | 10pF, 20pF | 500pA | -75dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
ADG787-BCB-500RL7IC SWITCH SPDT X 2 3OHM 10WLCSP |
4,454 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
|
ADG787BCB-500RL7U1IC SWITCH SPDT X 2 3OHM 10WLCSP |
4,178 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 3Ohm | 20mOhm | 1.8V ~ 5.5V | - | 19ns, 5ns | 145MHz | 14pC | 16pF | 50pA (Typ) | -110dB @ 1MHz | -25°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
|
ADG508ATCHIPSIC MUX 8:1 300OHM DIE |
2,529 |
|
Datasheet | - | Bulk | Obsolete | - | 8:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | Die |
|
|
ADG526ATCHIPSIC MUX 16:1 450OHM DIE |
3,111 |
|
Datasheet | - | Bulk | Obsolete | - | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
|
ADG528ATCHIPSIC MUX 8:1 450OHM DIE |
2,969 |
|
Datasheet | - | Bulk | Obsolete | - | 8:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | Die |
|
ADG802BRM-1IC SW SPST-NCX1 300MOHM 8MSOP |
4,511 |
|
Datasheet | - | Tube | Obsolete | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
