Analog Switches, Multiplexers, Demultiplexers
Explore Analog Switches, Multiplexers, Demultiplexers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG2038DQ-T1-E3IC SWITCH SPST-NO X 2 5OHM 8MSOP |
4,038 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5Ohm | 200mOhm (Max) | 1.8V ~ 5.5V | - | 30ns, 22ns | - | 1pC | 15pF, 17pF | 1nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2042DN-T1-E4IC SWITCH SPST-NOX4 1.5OHM 16QFN |
2,327 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 1.5Ohm | 300mOhm (Max) | 1.8V ~ 5.5V | - | 42ns, 32ns | - | 3pC | 26pF | 1nA | -93dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (4x4) |
|
DG2303DL-T1-E3IC SWITCH SPST-NOX1 7OHM SC70-5 |
2,521 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 7Ohm | - | 1.65V ~ 5.5V | - | 2ns, 7.5ns | - | 0.5pC | 9pF | 10µA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|

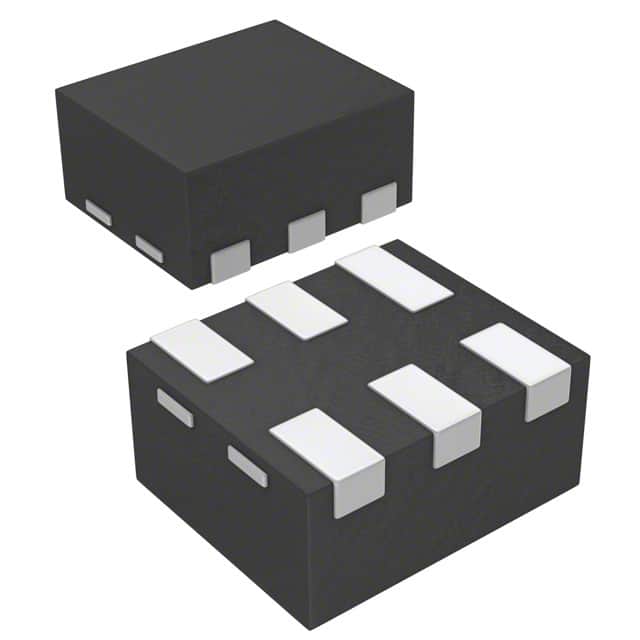

DG2511DN-T1-E4IC SWITCH SPDTX1 1.3OHM 6MINIQFN |
4,625 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.3Ohm | 150mOhm (Max) | 1.8V ~ 5.5V | - | 35ns, 31ns | - | 14pC | 19pF | 2nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-miniQFN (1x1.2) |
|
DG2517DN-T1-E4IC SWITCH SPDT X 2 4OHM 10DFN |
2,562 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
DG2517DQ-T1-E3IC SWITCH SPDT X 2 4OHM 10MSOP |
1,937 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 4Ohm | 100mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 242MHz | 2pC | 8pF | 1nA | -73dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2535DN-T1-E4IC SWITCH SPDT X 2 500MOHM 10DFN |
1,000 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 50mOhm (Max) | 3V | - | 82ns, 73ns | - | 21pC | 145pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
DG2535DQ-T1-E3IC SWITCH SPDTX2 500MOHM 10MSOP |
2,188 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 500mOhm | 50mOhm (Max) | 3V | - | 82ns, 73ns | - | 21pC | 145pF | 1nA | -69dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2616DN-T1-E4IC SWITCH SPDT X 2 7OHM 10DFN |
2,939 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 7Ohm | 100mOhm | 1.5V ~ 3.6V | - | 69ns, 39ns | - | 7pC | 9pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
|
DG2618DN-T1-E4IC SWITCH SPDT X 2 7OHM 10DFN |
3,131 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 7Ohm | 100mOhm | 1.5V ~ 3.6V | - | 69ns, 39ns | - | 7pC | 9pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
DG2707DN-T1-E4IC SW SP4TX2 5.5OHM 16MINIQFN |
1,842 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 5.5Ohm | 300mOhm | 1.65V ~ 4.3V | - | 45ns, 35ns | 120MHz | -14pC | 16pF, 42pF | 5nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG2711DL-T1-E3IC SWITCH SPDTX1 600MOHM SC70-6 |
2,815 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 70mOhm (Max) | 1.6V ~ 3.6V | - | 46ns, 38ns | - | 28pC | 70pF | 1nA | -56dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
DG2715DL-T1-E3IC SW SPST-NOX1 600MOHM SC70-5 |
3,550 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 600mOhm | - | 1.5V ~ 3.6V | - | 29ns, 26ns | - | 9pC | 72pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2716DL-T1-E3IC SW SPST-NCX1 600MOHM SC70-5 |
4,308 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 600mOhm | - | 1.5V ~ 3.6V | - | 29ns, 26ns | - | 9pC | 72pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
|
DG2733DQ-T1-E3IC SWITCH SPDTX2 450MOHM 10MSOP |
1,888 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 450mOhm | 30mOhm | 1.65V ~ 4.3V | - | 110ns, 30ns | - | 9pC | 104pF | 1nA | -75dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
DG2741DQ-T1-E3IC SW SPST-NOX2 800MOHM 8MSOP |
3,515 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | - | 1.5V ~ 3.6V | - | 30ns, 28ns | - | 5.8pC | 81pF | 1nA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
DG2741DS-T1-E3IC SW SPST-NOX2 800MOHM SOT23-8 |
2,913 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 800mOhm | - | 1.5V ~ 3.6V | - | 30ns, 28ns | - | 5.8pC | 81pF | 1nA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
DG2789DN-T1-E4IC SW SPDTX4 500MOHM 16MINIQFN |
3,020 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 500mOhm | 50mOhm | 1.65V ~ 4.3V | - | 72ns, 43ns | - | 87pC | 81pF | 1nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
|
DG3002DB-T1-E1IC SWITCH SPST 700MOHM 6MICRO FT |
1,362 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 700mOhm | 10mOhm | 1.8V ~ 5.5V | - | 71ns, 59ns | - | 64pC | 100pF | 1nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
|
|
DG3003DB-T1-E1IC SW SPDTX1 700MOHM 6MICRO FOOT |
4,752 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 700mOhm | 10mOhm | 1.8V ~ 5.5V | - | 71ns, 59ns | - | 64pC | 100pF | 1nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-Micro Foot™ (1.5x1) |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
