Analog Switches, Multiplexers, Demultiplexers
Explore Analog Switches, Multiplexers, Demultiplexers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG611EEN-T1-GE4IC SW SPST-NCX4 115OHM 16MINIQFN |
8,943 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 115Ohm | 2.5Ohm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
TC74HC4051APFIC MUX 8:1 100OHM 16DIP |
1,083 |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 100Ohm | 5Ohm | 2V ~ 6V | ±2V ~ 6V | 18ns, 29ns (Typ) | 85MHz | - | 2pF, 70pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-DIP |
|
TMUX4157NDCKRIC SWITCH SPDT X 1 8OHM SC70-6 |
12,596 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 8Ohm | 300mOhm (Typ) | 4V ~ 12V | - | 20µs | 340MHz | -25pC | 10pF | 15µA | -42dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-70-6 |
|
MC14053BDTR2GIC SWITCH SPDTX3 280OHM 16TSSOP |
2,500 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MC74HC4052ADGIC SWITCH SP4T X 2 100OHM 16SOIC |
4,081 |
|
Datasheet | - | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 95MHz | - | 80pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|

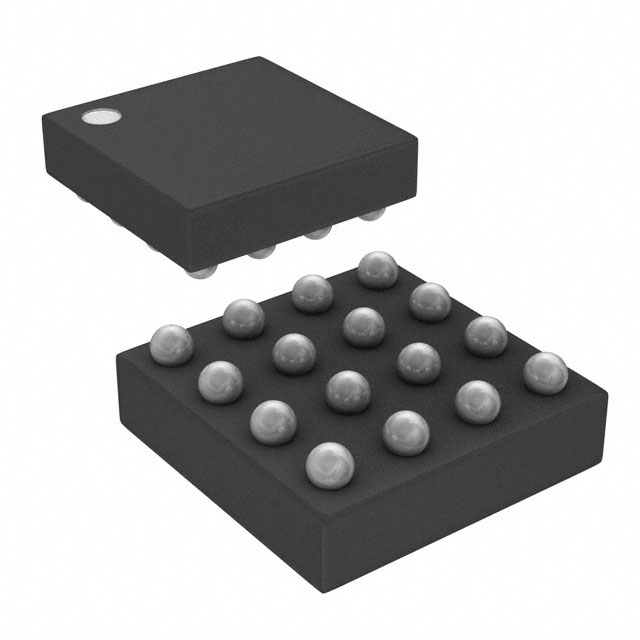

DG2502DB-T2-GE1IC SW SPST-NOX4 200OHM 16WCSP |
3,722 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 200Ohm | - | 1.8V ~ 5.5V | - | 100ns, 60ns | 550MHz | -2pC | 2.9pF, 2.8pF | 400pA | -83dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-WCSP (1.44x1.44) |
.jpg "STG3856QTR")
|
STG3856QTRIC SWITCH SP3T X 2 1OHM 12QFN |
21,839 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP3T | 3:1 | 2 | 1Ohm | 10mOhm | 1.65V ~ 4.3V | - | 40ns, 20ns | 100MHz | 55pC | 5pF | 20nA | -84dB @ 100kHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 12-QFN (2.2x1.4) |
|
TMUXHS4212IRKSRIC SW DPST, SPDTX2 8.4OHM 20VQFN |
4,210 |
|
Datasheet | - | Tape & Reel (TR) | Active | DPST, SPDT | 1:2, 2:1 | 2 | 8.4Ohm | 500mOhm | 1.71V ~ 1.98V, 3V ~ 3.6V | - | 100ns, 100ns | 13GHz | - | - | 5µA | -27dB @ 10GHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 20-VQFN (4.5x2.5) |
|
|
MC14052BDR2GIC SWITCH DP4T X 2 280OHM 16SOIC |
2,417 |
|
Datasheet | - | Tape & Reel (TR) | Active | DP4T | 2:4 | 2 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC14052BDGIC SWITCH DP4T X 2 280OHM 16SOIC |
662 |
|
Datasheet | - | Tube | Active | DP4T | 2:4 | 2 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
74HCT4067BQ,118IC MUX 16:1 120OHM 24DHVQFN |
4,121 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | - | 65ns, 60ns | 100MHz | - | 3.5pF | 800nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 24-DHVQFN (5.5x3.5) |
|
|
MC14551BDR2GIC SWITCH SPDT X 4 280OHM 16SOIC |
2,729 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
NS5A4684SMNTBGIC SWITCH SPDTX2 400MOHM 10WQFN |
5,817 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 400mOhm | 100mOhm (Max) | 1.65V ~ 5.5V | - | 50ns, 30ns | 19MHz | 38pC | 60pF | 100nA | -70dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WQFN (1.4x1.8) |
|
DG2032EDN-T1-GE4IC SWITCH SPDT X 2 3.1OHM 12QFN |
578 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 3.1Ohm | 10mOhm | 1.8V ~ 5.5V | - | 40ns, 33ns | 221MHz | -19.4pC | - | - | -62dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-QFN (3x3) |
|
|
MC14051BDR2GIC MUX 8:1 280OHM 16SOIC |
7,738 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC14051BDGIC MUX 8:1 280OHM 16SOIC |
853 |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
74HCT4067PW-Q100JIC MUX 16:1 120OHM 24TSSOP |
6,621 |
|
Datasheet | 74HCT | Tape & Reel (TR) | Active | - | 16:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | - | 65ns, 60ns | 100MHz | - | 3.5pF | 800nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-TSSOP |
|
|
MC14052BDTR2GIC SWITCH DP4TX2 280OHM 16TSSOP |
631 |
|
Datasheet | - | Tape & Reel (TR) | Active | DP4T | 2:4 | 2 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG2034EDQ-T1-GE3IC SWITCH SP4T X 1 2.5OHM 10MSOP |
3,755 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 2.5Ohm | 20mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 166MHz | -2.6pC | 7pF, - | 2nA | -71dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
TS3A24159YZPRIC SWITCH SPDTX2 300MOHM 10DSBGA |
14,653 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 300mOhm | 10mOhm | 1.65V ~ 3.6V | - | 35ns, 25ns | 23MHz | 9pC | 90pF | 10nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DSBGA |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
