Analog Switches, Multiplexers, Demultiplexers
Explore Analog Switches, Multiplexers, Demultiplexers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74HC4052PW,118IC SWITCH SP4TX2 150OHM 16TSSOP |
151,010 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 150Ohm | 6Ohm | 2V ~ 10V | ±1.5V ~ 5V | 58ns, 48ns | 180MHz | - | 3.5pF | 2µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
CD4066BPWRIC QUAD BILATERAL SWITCH 14TSSOP |
24,097 |
|
Datasheet | 4000B | Tape & Reel (TR) | Active | SPST | 1:1 | 4 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 40MHz | - | 8pF | - | - | -55°C ~ 125°C | - | - | Surface Mount | 14-TSSOP |
|
TS5A3160DCKRIC SWITCH SPDTX1 900MOHM SC70-6 |
8,975 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 6ns, 13ns | 100MHz | 36.5pC | 18pF | 20nA | -64dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
|
TS5A63157DCKRIC SWITCH SPDT X 1 10OHM SC70-6 |
5,506 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 10Ohm | 100mOhm | 1.65V ~ 5.5V | - | 5ns, 3.4ns | 371MHz | -21pC | 5pF | 30nA | -61dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
CD74HCT4053PWRIC SWITCH SPDTX3 130OHM 16TSSOP |
21,233 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 130Ohm | 5Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | - | 200MHz | - | 5pF, 8pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

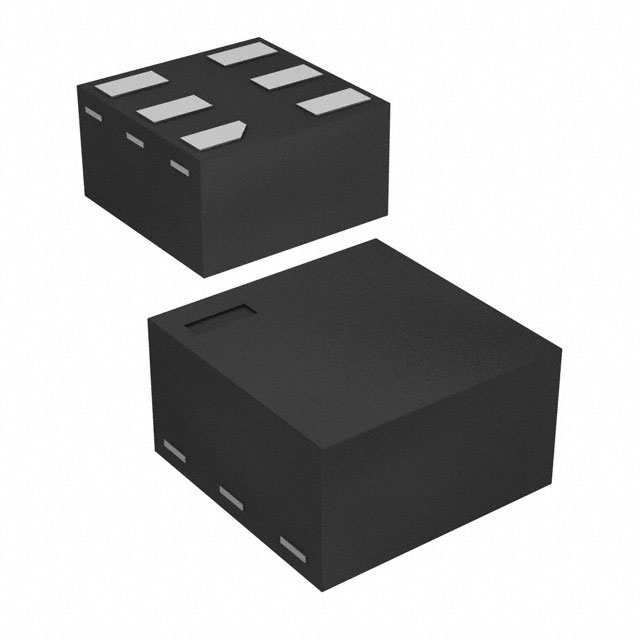

DG3257DN-T1-GE4IC SWITCH SPDT X 1 6OHM 6UDFN |
10,589 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 6Ohm | 600mOhm | 1.65V ~ 5.5V | - | 50ns, 45ns | 714MHz | 4pC | 3pF, 9pF | - | -32dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-µDFN (1x1) |
|
HEF4053BT,653IC SWITCH SPDT X 3 155OHM 16SO |
93,652 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
TS5A3167DCKRIC SW SPST-NCX1 900MOHM SC70-5 |
17,811 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 900mOhm | - | 1.65V ~ 5.5V | - | 7.5ns, 11ns | 150MHz | 6pC | 19pF, 18pF | 20nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-5 |
|
SN74LV4051ARGYRIC MUX 8:1 75OHM 16VQFN |
15,186 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 35MHz | - | 0.5pF, 23.4pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
|
74HCT4053D,118IC SWITCH SPDT X 3 120OHM 16SO |
78,443 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 34ns, 31ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SO |
|
|
74HCT4051PW,118IC MUX 8:1 120OHM 16TSSOP |
3,272 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 39ns, 32ns | 180MHz | - | 3.5pF | 400nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
74LVC2G66DC,125IC SWITCH SPST-NOX2 10OHM 8VSSOP |
128,487 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 10Ohm | - | 1.65V ~ 5.5V | - | 3.9ns, 5ns | 500MHz | 7.5pC | 5pF | 5µA | -56dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
74HC4053BQ,115IC SWITCH SPDTX3 120OHM 16DHVQFN |
45,784 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 120Ohm | 6Ohm | 2V ~ 10V | ±1.5V ~ 5V | 31ns, 29ns | 170MHz | - | 3.5pF | 100nA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-DHVQFN (2.5x3.5) |
|
DG2002EDL-T1-GE3IC SWITCH SPDT X 1 8OHM SC70-6 |
12,552 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 8Ohm | 40mOhm (Typ) | 1.8V ~ 5.5V | - | 30ns, 24ns | - | 1pC | 7pF, 7pF | 1.5nA | -77dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | SC-70-6 |
|
TMUX4052PWRIC SWITCH SP4TX2 240OHM 16TSSOP |
2,398 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T - Open | 4:1 | 2 | 240Ohm | 2Ohm (Typ) | 5V ~ 24V | - | 110ns, 85ns (Typ) | 700MHz | - | 3pF, 5pF | - | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX4051PWRIC SWITCH SP8T X 1 40OHM 16TSSOP |
2,297 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP8T - Open | 8:1 | 1 | 40Ohm | 2Ohm | 5V ~ 24V | ±12V | 85ns, 110ns | 430MHz | 2pC | 3pF, 9pF | 100nA | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
TMUX4053BQBR+/-12-V, 2:1, 3-CHANNEL MULTIPLE |
1,894 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - Open/Closed | 2:1 | 3 | 240Ohm | 2Ohm | 5V ~ 24V | - | 110ns, 85ns (Typ) | 850MHz | - | 3pF, 3pF | - | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (2.5x3.5) |
|
|
SN74LV4052ARGYRIC SWITCH SP4T X 2 75OHM 16VQFN |
1,425 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 75Ohm | 700mOhm | 2V ~ 5.5V | - | 14ns, 14ns | 50MHz | - | 0.5pF, 13.1pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-VQFN (4x3.5) |
|
SN74LVC2G66QDCURQ1IC SWITCH SPST-NOX2 15OHM 8VSSOP |
3,865 |
|
Datasheet | 74LVC | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 15Ohm | 5Ohm (Max) | 1.65V ~ 5.5V | - | 5.9ns, 8.3ns | 300MHz | - | 6pF | 100nA | -58dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-VSSOP |
|
|
TMUX4053PWRIC SW SPDT-NO/NC 240OHM 16TSSOP |
2,378 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 3 | 240Ohm | 2Ohm (Typ) | 5V ~ 24V | - | 110ns, 85ns (Typ) | 850MHz | - | 3pF, 3pF | - | -90dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
