Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

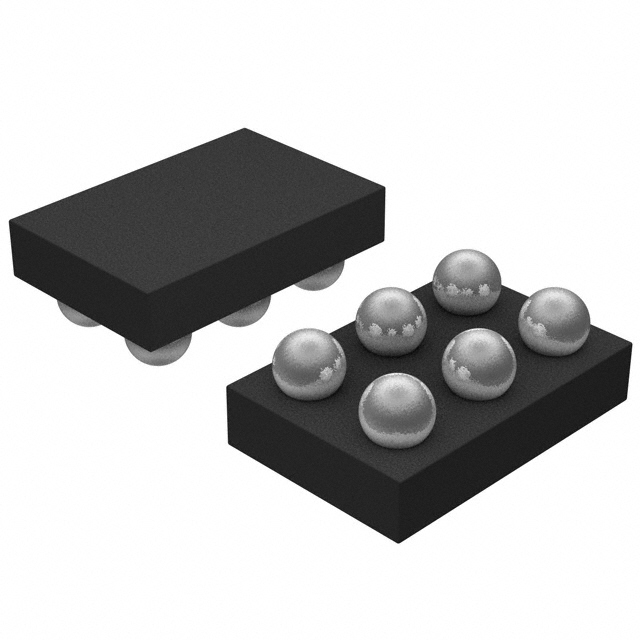

ADG819BCBZ-REEL7IC SWITCH SPDTX1 600MOHM 6WLCSP |
15,679 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-WLCSP (1.14x2.18) |
|
ADG819BRMZ-REEL7IC SWITCH SPDT X 1 600MOHM 8MSOP |
2,496 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG722BRMZ-REEL7IC SWITCH SPST-NC X 2 4OHM 8MSOP |
1,176 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG722BRMZIC SWITCH SPST-NC X 2 4OHM 8MSOP |
585 |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 2 | 4Ohm | 300mOhm | 1.8V ~ 5.5V | - | 14ns, 6ns (Typ) | 200MHz | 2pC | 7pF, 7pF | 250pA | -97dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ADG1312YRUZ-REEL7IC SW SPST-NOX4 200OHM 16TSSOP |
1,015 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 200Ohm | 5Ohm | 12V | ±15V | 125ns, 50ns | 600MHz | 2pC | 5pF, 5pF | 10nA | -90dB @ 1MHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG1311YRUZIC SW SPST-NCX4 200OHM 16TSSOP |
764 |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 200Ohm | 5Ohm | 12V | ±15V | 125ns, 50ns | 600MHz | 2pC | 5pF, 5pF | 10nA | -90dB @ 1MHz | -40°C ~ 105°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ADG782BCPZIC SWITCH SPST-NOX4 4OHM 20LFCSP |
1,463 |
|
Datasheet | - | Tray | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
ADG441BRZ-REELIC SWITCH SPST-NCX4 70OHM 16SOIC |
12,322 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG441BRZIC SWITCH SPST-NCX4 70OHM 16SOIC |
1,332 |
|
Datasheet | - | Tube | Active | SPST - NC | 1:1 | 4 | 70Ohm | - | 12V | ±15V | 110ns, 60ns | - | 1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG712BRUZIC SWITCH SPST-NOX4 4OHM 16TSSOP |
6,981 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 4Ohm | - | 1.8V ~ 5.5V | - | 11ns, 6ns (Typ) | 200MHz | 3pC | 10pF, 10pF | 100pA | -90dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
