Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG401DVZ-TIC SW SPST-NOX2 45OHM 16TSSOP |
1,062 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | 3Ohm | 5V ~ 34V | ±5V ~ 17V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL54056IRUZ-TIC SWITCH SPDTX4 550MOHM 16UTQFN |
4,708 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 33ns, 16ns | - | 248pC | 38pF | 70nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UTQFN (2.6x1.8) |
|
ISL54048IRUZ-TIC SW SPST-NOX2 300MOHM 10UTQFN |
3,353 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 300mOhm (Typ) | 60mOhm | 1.65V ~ 4.5V | - | 40ns, 20ns | - | 170pC | 62pF | 100nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
ISL54047IRUZ-TIC SW SPST-NOX2 450MOHM 10UTQFN |
1,643 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 450mOhm (Typ) | 40mOhm | 1.65V ~ 4.5V | - | 40ns, 35ns | - | 192pC | 46pF | 100nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
ISL54057IRUZ-TIC SWITCH SP4TX1 750MOHM 16UTQFN |
1,158 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 1 | 750mOhm | 90mOhm | 1.6V ~ 3.6V | - | 27ns, 18ns | - | - | 44pF, 149pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UTQFN (2.6x1.8) |
|
ISL54051IRUZ-TIC SW SPST-NOX1 860MOHM 6UTDFN |
3,861 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 860mOhm (Typ) | - | 1.8V ~ 5.5V | - | 24ns, 10ns | 190MHz | 26pC | 16pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|

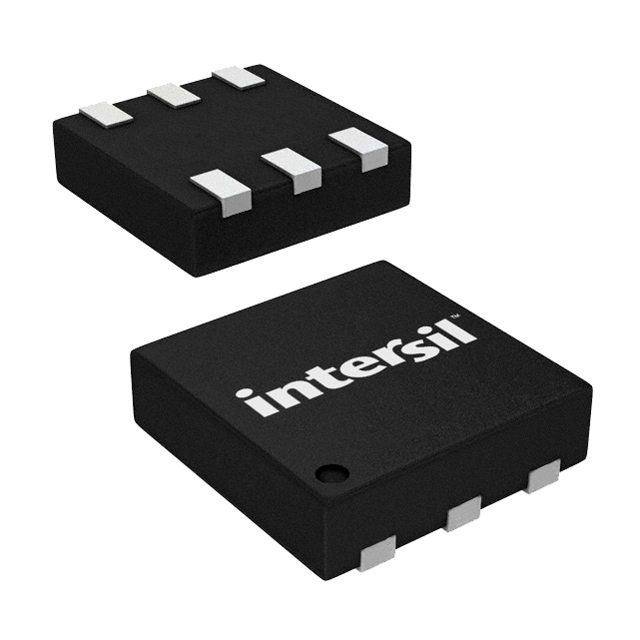

ISL54052IRUZ-TIC SW SPST-NCX1 860MOHM 6UTDFN |
2,832 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 860mOhm (Typ) | - | 1.8V ~ 5.5V | - | 24ns, 10ns | 190MHz | 26pC | 16pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|
|
ISL54054IRUZ-TIC SW SPST-NOX1 360MOHM 6UTDFN |
1,577 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 360mOhm (Typ) | - | 1.8V ~ 5.5V | - | 12ns, 12ns | 72MHz | 71pC | 30pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|
|
ISL54055IRUZ-TIC SW SPST-NCX1 360MOHM 6UTDFN |
2,389 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 360mOhm (Typ) | - | 1.8V ~ 5.5V | - | 12ns, 12ns | 72MHz | 71pC | 30pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|
|
ISL54505IRUZ-TIC SW SPST-NCX1 2.5OHM 6UTDFN |
2,215 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 2.5Ohm | - | 1.8V ~ 5.5V | - | 25ns, 15ns | 250MHz | 24pC | 7pF | 25nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
