Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL54500IRUZ-TIC SWITCH SPDT X 1 5OHM 6UTDFN |
4,993 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 5Ohm | 46mOhm | 1.8V ~ 5.5V | - | 22ns, 15ns | 350MHz | 16pC | 6pF | 25nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|
ISL54503IHZ-TIC SWITCH SPDT X 1 2.5OHM 6SOT |
1,251 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 2.5Ohm | 3mOhm | 1.8V ~ 5.5V | - | 25ns, 15ns | 250MHz | 24pC | 7pF | 25nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
|
ISL54500IHZ-TIC SWITCH SPDT X 1 5OHM 6SOT |
2,276 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 5Ohm | 46mOhm | 1.8V ~ 5.5V | - | 22ns, 15ns | 350MHz | 16pC | 6pF | 25nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-SOT |
|
ISL84781IRZ-TIC MUX 8:1 750MOHM 16TQFN |
1,283 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ISL54233IRUZ-T7AIC SWITCH SP3T X 2 15OHM 12UTQFN |
4,032 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 2 | 15Ohm | 70mOhm | 2.7V ~ 4.6V | - | - | 1.6GHz | - | 3pF | 15nA | -36dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-UTQFN (2.2x1.4) |
|
ISL84781IVZ-TIC MUX 8:1 750MOHM 16TSSOP |
3,790 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -39pC | 65pF, 470pF | 4nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL76123AHZ-T7AIC SWITCH SPDT X 1 23OHM 6SOT |
3,979 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 23Ohm | 800mOhm | 2.7V ~ 12V | - | 25ns, 17ns (Typ) | - | 5pC | 8pF, 8pF | 3nA | -105dB @ 1MHz | -40°C ~ 105°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-SOT |
|

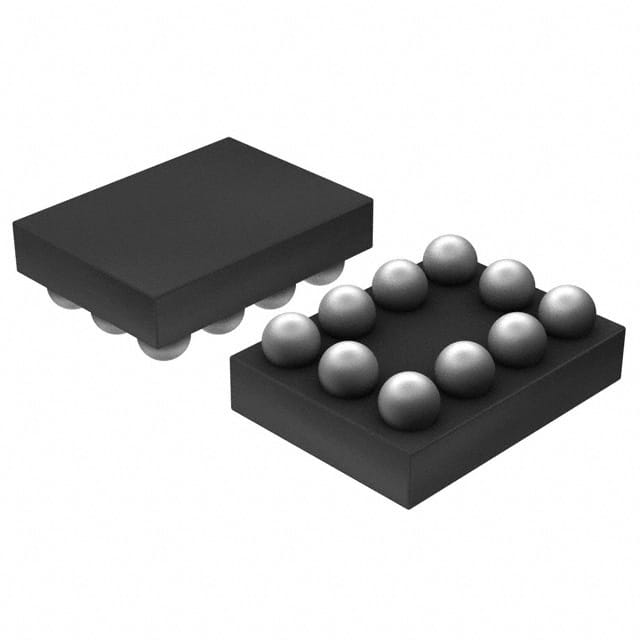

ISL84684IIZ-TIC SWITCH SPDTX2 140MOHM 10WLCSP |
2,469 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 140mOhm (Typ) | 50mOhm | 1.8V ~ 4.5V | - | 40ns, 35ns | - | 260pC | 140pF | 900nA (Typ) | -105dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-WLCSP (2x1.5) |
|
ISL43240IRZIC SWITCH SPDT X 4 25OHM 20QFN |
3,430 |
|
Datasheet | - | Tube | Obsolete | SPDT | 2:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 10pF | 200pA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
ISL84714IHZ-T7AIC SWITCH SPDTX1 600MOHM SC70-6 |
1,895 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 600mOhm | 5mOhm | 1.65V ~ 3.6V | - | 11ns, 7ns | - | 20pC | 40pF | 2nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
