Analog Switches, Multiplexers, Demultiplexers
Explore Analog Switches, Multiplexers, Demultiplexers parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG5412BCPZ-REEL7IC SW SPST-NOX4 10OHM 16LFCSP |
4,579 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
|
ADG5413BCPZ-REEL7IC SW SPST-NO/NCX4 10OHM 16LFCSP |
4,500 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
ADG728BRUZ-REEL7IC MUX 8:1 4.5OHM 16TSSOP |
2,440 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG728BRUZIC MUX 8:1 4.5OHM 16TSSOP |
1,796 |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG729BRUZ-REEL7IC SWITCH SP4TX2 4.5OHM 16TSSOP |
1,388 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 100MHz | 3pC | 13pF, 42pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

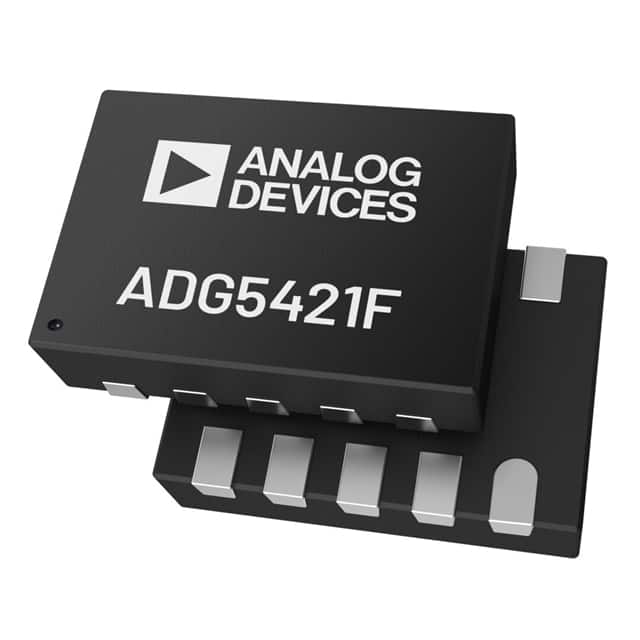

ADG5421FBCPZ-RL7IC SW SPST-NCX2 14OHM 10LFCSP |
3,420 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 2 | 14Ohm | 20mOhm | 8V ~ 44V | ±5V ~ 22V | 15.9µs, 160ns | 630MHz | -150pC | 6pF, 5pF | 200pA | -78dB @ 1MHz | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP (3x2) |
|
MAX4782EUE+TIC SWITCH SP4T X 2 1OHM 16TSSOP |
1,482 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 158pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4052AESE+TIC SWITCH SP4T X 2 100OHM 16SOIC |
623 |
|
Datasheet | - | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4051ACSE+TIC MUX 8:1 100OHM 16SOIC |
775 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4660EUA+TIC SWITCH SPDT X 1 25OHM 8UMAX |
5,955 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX-EP|8-uSOP-EP |
|
MAX4659ESA+TIC SWITCH SPDT X 1 25OHM 8SOIC |
1,419 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
ADG1412YRUZIC SW SPST-NOX4 1.8OHM 16TSSOP |
5,247 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 1.8Ohm | 100mOhm | 5V ~ 16.5V | ±4.5V ~ 16.5V | 150ns, 120ns | 170MHz | -20pC | 23pF, 23pF | 550pA | -100dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG5412BRUZ-REEL7IC SW SPST-NOX4 10OHM 16TSSOP |
3,025 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
MAX392CSE+IC SWITCH SPST-NOX4 35OHM 16SOIC |
1,833 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 35Ohm | 300mOhm | 3V ~ 15V | ±3V ~ 8V | 130ns, 75ns | - | 2pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADG5412BRUZIC SW SPST-NOX4 10OHM 16TSSOP |
1,133 |
|
Datasheet | - | Tube | Active | SPST - NO | 1:1 | 4 | 10Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 187ns, 138ns | 160MHz | 310pC | 17pF, 17pF | 250pA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG608BRUZ-REEL7IC MUX 8:1 30OHM 16TSSOP |
8,652 |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 8:1 | 1 | 30Ohm | 5Ohm (Max) | 3.3V ~ 5V | ±5V | 75ns, 45ns | - | 6pC | 9pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4052AEEE+IC SWITCH SP4T X 2 100OHM 16QSOP |
450 |
|
Datasheet | - | Tube | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4659EUA+TIC SWITCH SPDT X 1 25OHM 8UMAX |
3,411 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 25Ohm | 400mOhm | 9V ~ 40V | ±4.5V ~ 20V | - | 225MHz | 1.5pC | 6pF | 1nA | -76dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
ADG1634BCPZ-REEL7IC SWITCH SPDTX4 4.5OHM 20LFCSP |
16,001 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPDT | 2:1 | 4 | 4.5Ohm | 120mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 38ns, 152ns | 109MHz | -12.4pC | 19pF, 32pF | 100pA | -64dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
|
|
MAX4617ESE+IC MUX 8:1 10OHM 16SOIC |
2,408 |
|
Datasheet | - | Tube | Active | - | 8:1 | 1 | 10Ohm | 200mOhm | 2V ~ 5.5V | - | 15ns, 10ns | - | 3pC | 5pF, 27pF | 1nA | -96dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
