Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

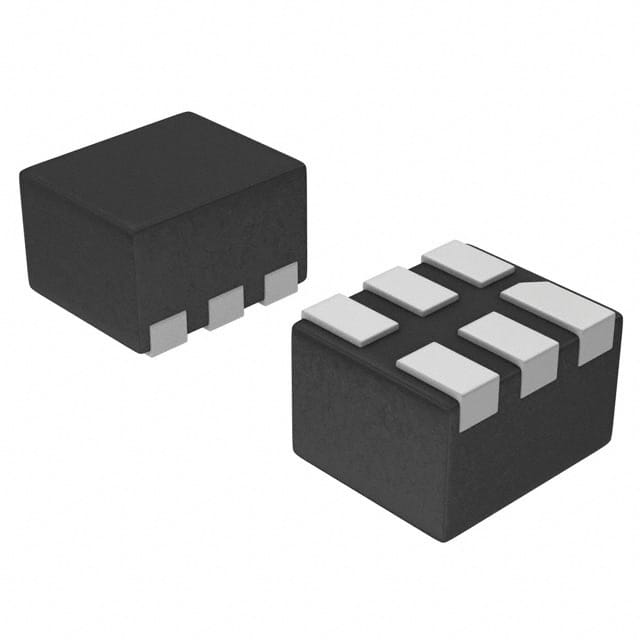

NLASB3157MTR2GIC SWITCH SPDT X 1 7OHM 6WDFN |
3,213 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 7Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.2ns, 3.5ns | 250MHz | 7pC | 6.5pF | 100nA | -54dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 6-WDFN (1.2x1) |
|
MC74LVX4052DTGIC SWITCH SP4T X 2 26OHM 16TSSOP |
4,784 |
|
Datasheet | - | Tube | Obsolete | SP4T | 4:1 | 2 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
NLAS3699MN1R2GIC SWITCH DPDT X 2 550MOHM 16QFN |
3,093 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 50ns, 50ns | 20MHz | 50pC | 7pF | 500nA | -62dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
FSA266K8XIC SWITCH SPST-NO X 2 10OHM US8 |
2,635 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 10Ohm | 200mOhm | 1.65V ~ 5.5V | - | 3.2ns, 4.1ns | 300MHz | - | 5pF | 100nA | -70dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | US8 |
|
MC14052BFELGIC SWITCH DP4TX2 280OHM 16SOEIAJ |
1,877 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | DP4T | 2:4 | 2 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOEIAJ |
|
NLAST4501DFT2GIC SWITCH SPST-NOX1 25OHM SC88A |
5,453 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 25Ohm | - | 2V ~ 5.5V | - | 9ns, 10ns | 220MHz | 3pC | 10pF, 10pF | 1nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
NLAS2750MUTAGIC SWITCH SPDT X 2 1.3OHM 10UQFN |
3,778 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 1.3Ohm | 100mOhm | 1.8V ~ 5V | - | 150ns, 130ns | 44MHz | 60pC | 5pF | 250nA | -60dB @ 300kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
NLHV4051DR2GIC MUX 8:1 280OHM 16SOIC |
4,445 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
NS5B1G385DFT2GIC SWITCH SPST-NOX1 15OHM SC88A |
13,214 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 15Ohm | - | 2V ~ 5.5V | - | 6ns, 2ns | 330MHz | - | 4.1pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-88A (SC-70-5/SOT-353) |
|
MM74HC4052MXIC SWITCH SP4T X 2 100OHM 16SOIC |
1,890 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm | 2V ~ 6V | ±2V ~ 6V | 41ns, 32ns | 35MHz | - | 5pF, 45pF | 100nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
Frequently Asked Questions
What are Analog Switches, Multiplexers, Demultiplexers components used for?
Analog Switches, Multiplexers, Demultiplexers components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Analog Switches, Multiplexers, Demultiplexers part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Analog Switches, Multiplexers, Demultiplexers parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
