Analog Switches, Multiplexers, Demultiplexers
Review Analog Switches, Multiplexers, Demultiplexers Interface components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX4610EUD+TIC SW SPST-NOX4 100OHM 14TSSOP |
2,966 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MAX4610ESD+TIC SW SPST-NOX4 100OHM 14SOIC |
4,443 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
|
MAX4611ESD+TIC SW SPST-NCX4 100OHM 14SOIC |
4,316 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | - | 65ns, 28ns | 300MHz | 1pC | 16pF, 16pF | 100pA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
MAX4066CEE+TIC SWITCH SPST-NOX4 45OHM 16QSOP |
2,313 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 45Ohm | 500mOhm | 2V ~ 16V | - | 100ns, 75ns | 100MHz | 1pC | 9pF, 9pF | 1nA | -86dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
DG418LEUA+TIC SWITCH SPST-NOX1 35OHM 8UMAX |
4,099 |
|
Datasheet | - | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 1 | 35Ohm | 100mOhm | 9V ~ 36V | ±4.5V ~ 20V | 175ns, 185ns | - | 15pC | 8pF, 8pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
MAX4621CPEIC SWITCH SPST-NO X 2 5OHM 16DIP |
2,131 |
|
Datasheet | - | Tube | Obsolete | SPST - NO | 1:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4622CPEIC SWITCH SPDT X 2 5OHM 16DIP |
1,717 |
|
Datasheet | - | Tube | Obsolete | DPST | 1:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4622CSEIC SWITCH SPDT X 2 5OHM 16SOIC |
1,192 |
|
Datasheet | - | Tube | Obsolete | DPST | 1:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4623CSEIC SWITCH DPST-NOX2 5OHM 16SOIC |
3,811 |
|
Datasheet | - | Tube | Obsolete | DPST - NO | 2:1 | 2 | 5Ohm | 250mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 250ns, 200ns | - | 480pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|

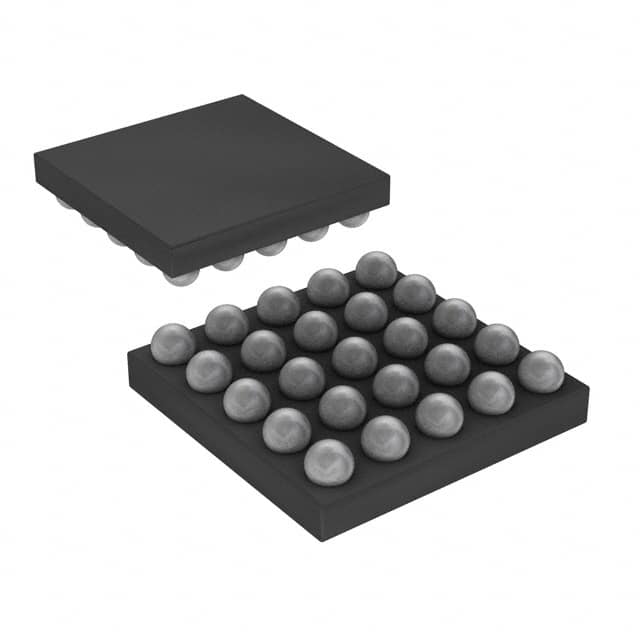

MAX4948EBA+TIC SWITCH SPDT X 6 5.5OHM 25UCSP |
2,478 |
|
Datasheet | - | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 6 | 5.5Ohm | 300mOhm | 1.8V ~ 5.5V | - | 800ns, 800ns | 300MHz | 10pC | 15pF | 3nA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-UCSP (2.54x2.54) |
