Single IGBTs
Review Single IGBTs IGBTs components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "IXGX120N120A3")
|
IXGX120N120A3IGBT 1200V 240A 830W PLUS247 |
8,616 |
|
Datasheet | GenX3™ | TO-247-3 Variant | Tube | Active | PT | 1200 V | 240 A | 600 A | 2.2V @ 15V, 100A | 830 W | 10mJ (on), 33mJ (off) | Standard | 420 nC | 40ns/490ns | 960V, 100A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
MMIX1Y100N120C3H1IGBT 1200V 92A 400W SMPD |
8,074 |
|
Datasheet | GenX3™, XPT™ | 24-PowerSMD, 21 Leads | Tube | Active | - | 1200 V | 92 A | 440 A | 3.5V @ 15V, 100A | 400 W | 6.5mJ (on), 2.9mJ (off) | Standard | 270 nC | 48ns/123ns | 600V, 100A, 1Ohm, 15V | 420 ns | -55°C ~ 175°C (TJ) | - | - | Surface Mount | 24-SMPD |
|

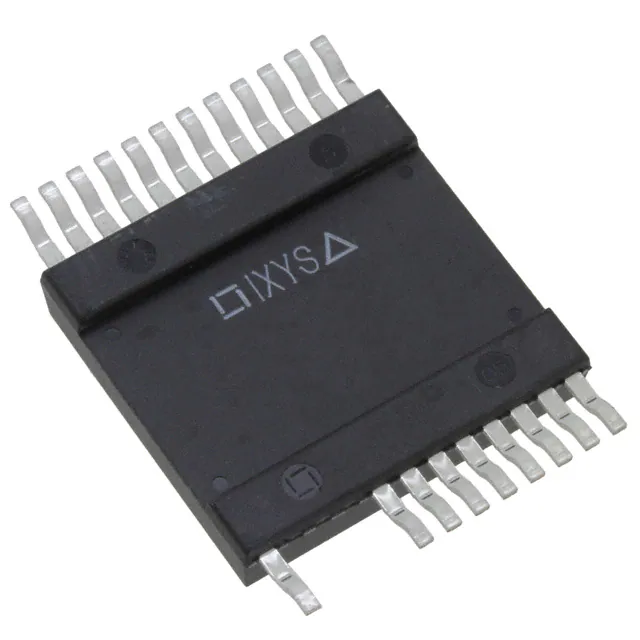

MMIX1X200N60B3H1IGBT 600V 175A 520W SMPD |
4,522 |
|
Datasheet | GenX3™, XPT™ | 24-PowerSMD, 21 Leads | Tube | Active | - | 600 V | 175 A | 1000 A | 1.7V @ 15V, 100A | 520 W | 2.85mJ (on), 2.9mJ (off) | Standard | 315 nC | 48ns/160ns | 360V, 100A, 1Ohm, 15V | 100 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | 24-SMPD |
|
IXGF25N250IGBT 2500V 30A 114W I4-PAK |
4,390 |
|
Datasheet | - | i4-Pac™-5 (3 Leads) | Tube | Active | NPT | 2500 V | 30 A | 200 A | 5.2V @ 15V, 75A | 114 W | - | Standard | 75 nC | - | - | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
IXBF32N300IGBT 3000V 40A ISOPLUSI4 |
6,382 |
|
Datasheet | BIMOSFET™ | i4-Pac™-5 (3 Leads) | Tube | Active | - | 3000 V | 40 A | 250 A | 3.2V @ 15V, 32A | 160 W | - | Standard | 142 nC | - | - | 1.5 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | ISOPLUS i4-PAC™ |
|
|
IXYP48N65A5650V, 48A, XP Gen5 A5 IGBT in |
6,438 |
|
Datasheet | Gen5 XPT™ | TO-220-3 | Bulk | Active | Trench Field Stop | 650 V | 130 A | 236 A | 1.4V @ 15V, 30A | 326 W | 400µJ (on), 1.25mJ (off) | Standard | 100 nC | 20ns/205ns | 400V, 30A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 (IXYP) |
|
|
IXYP35N65C5650V, 35A, XP Gen5 C5 IGBT in TO |
7,521 |
|
Datasheet | Gen5 XPT™ | TO-220-3 | Bulk | Active | Trench Field Stop | 650 V | 90 A | 190 A | 2V @ 15V, 30A | 326 W | 230µJ (on), 180µJ (off) | Standard | 96 nC | 21ns/122ns | 300V, 20A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220 (IXYP) |
|
|
IXYA48N65A5650V, 48A, XP Gen5 A5 IGBT in TO |
8,885 |
|
Datasheet | Gen5 XPT™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | Trench Field Stop | 650 V | 130 A | 236 A | 1.4V @ 15V, 30A | 326 W | 400µJ (on), 1.25mJ (off) | Standard | 100 nC | 20ns/205ns | 400V, 30A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
.jpg "IXGH48N60C3")
|
IXGH48N60C3IGBT 600V 75A 300W TO247AD |
1 |
|
Datasheet | GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 75 A | 250 A | 2.5V @ 15V, 30A | 300 W | 410µJ (on), 230µJ (off) | Standard | 77 nC | 19ns/60ns | 400V, 30A, 3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IXYA60N65A5650V, 60A, XP Gen5 A5 IGBT in TO |
8,983 |
|
Datasheet | Gen5 XPT™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Bulk | Active | Trench Field Stop | 650 V | 134 A | 260 A | 1.35V @ 15V, 36A | 395 W | 600µJ (on), 1.45mJ (off) | Standard | 128 nC | 28ns/230ns | 400V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
