Fuses
Review Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
02200044DRT1PFUSE GLASS 1A 350VAC 2AG |
7,084 |
|
Datasheet | 220 | Tape & Reel (TR) | Active | Through Hole | Cartridge, Glass | 1 A | 350 V | - | - | 100A | 2.22 | CE, CSA, METI, UL | -55°C ~ 125°C | - | 0.177" Dia x 0.571" L (4.50mm x 14.50mm) | |
|
0267003.VXTFUSE BRD MNT 3A 125VAC/VDC AXIAL |
3,668 |
|
Datasheet | 267 | Bag | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 125 V | 125 V | Fast Blow | - | - | - | -55°C ~ 125°C | - | 0.093" Dia x 0.280" L (2.36mm x 7.11mm) | |
|
0313001.HXC932PFUSE GLASS 1A 250VAC 3AB 3AG |
3,087 |
|
Datasheet | 313 | Bulk | Active | Requires Holder | Cartridge, Glass | 1 A | 250 V | - | Slow Blow | 35A | 14.0 | CE, CSA, PSE, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0315020.MXSSPFUSE GLASS 20A 32VAC 3AB 3AG |
2,433 |
|
Datasheet | 315 | Bulk | Active | Through Hole | Cartridge, Glass | 20 A | 32 V | - | Slow Blow | 300A | 9560.0 | UL | -55°C ~ 125°C | - | 0.275" Dia x 1.275" L (6.99mm x 32.39mm) | |
|
|
0505020.UXEPFUSE CERAMIC 20A 500VDC 3AB 3AG |
8,905 |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 20 A | - | 500 V | Fast Blow | 30kA AC, 20kA DC | 101.0 | CE, cURus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
021601.6MXESPPFUSE CERAMIC 1.6A 250VAC 5X20MM |
3,224 |
|
Datasheet | 216SP | Bulk | Active | Through Hole | Cartridge, Ceramic | 1.6 A | 250 V | - | Fast Blow | 1.5kA | 1.005 | CE, CSA, CQC, KC, PSE, UR, VDE | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0257001.UFUSE AUTO 1A 32VDC BLADE 500 PC |
6,600 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | 0.4 | cULus | -40°C ~ 105°C | Black | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|

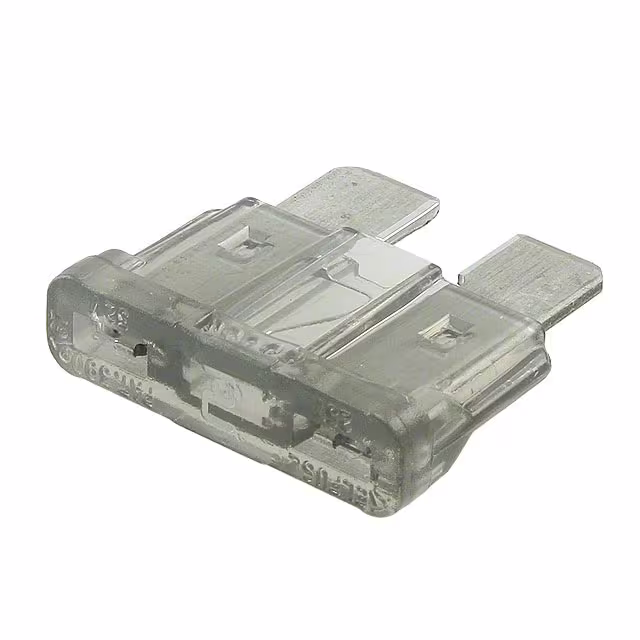

0257002.UFUSE AUTO 2A 32VDC BLADE 500 PC |
6,909 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 1.4 | cULus | -40°C ~ 105°C | Gray | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257005.UFUSE AUTO 5A 32VDC BLADE 500 PC |
4,743 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 5 A | - | 32 V | Fast Blow | 1kA | 26.0 | cULus | -40°C ~ 105°C | Tan | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) | |
|
|
0257003.LFUSE AUTO 3A 32VDC BLADE 50 PC |
8,988 |
|
Datasheet | ATO® | Bulk | Obsolete | Requires Holder | Automotive | 3 A | - | 32 V | Fast Blow | 1kA | 7.4 | cULus | -40°C ~ 105°C | Violet | 0.750" L x 0.200" W x 0.480" H (19.05mm x 5.08mm x 12.19mm) |
Frequently Asked Questions
What are Fuses components used for?
Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
