Fuses
Review Fuses Circuit Protection components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
37313000000FUSE BOARD MNT 3A 250VAC RADIAL |
4,288 |
|
Datasheet | TR5® 373 | Tape & Box (TB) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 3 A | 250 V | - | Fast Blow | - | - | - | -40°C ~ 85°C | - | 0.335" Dia x 0.315" H (8.50mm x 8.00mm) | |
|
0456020.ERGFUSE BRD MT 20A 125VAC 100VDC |
4,102 |
|
Datasheet | NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 20 A | 125 V | 100 V | Fast Blow | 100A AC, 300A DC | 18.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
|
0456030.ERGFUSE BRD MT 30A 125VAC 72VDC SMD |
8,355 |
|
Datasheet | NANO²® 456 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 125 V | 72 V | Fast Blow | 100A AC, 500A DC | 81.0 | cULus, PSE | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
|
166.6885.5501FUSE AUTO 50A 80VDC BLADE MAX |
3,467 |
|
Datasheet | FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 50 A | - | 80 V | Slow Blow | 1kA | 25500.0 | cULus | - | Red | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|
166.6885.5301FUSE AUTO 30A 80VDC BLADE MAX |
6,270 |
|
Datasheet | FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 30 A | - | 80 V | Slow Blow | 1kA | 4950.0 | cULus | - | Green | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|

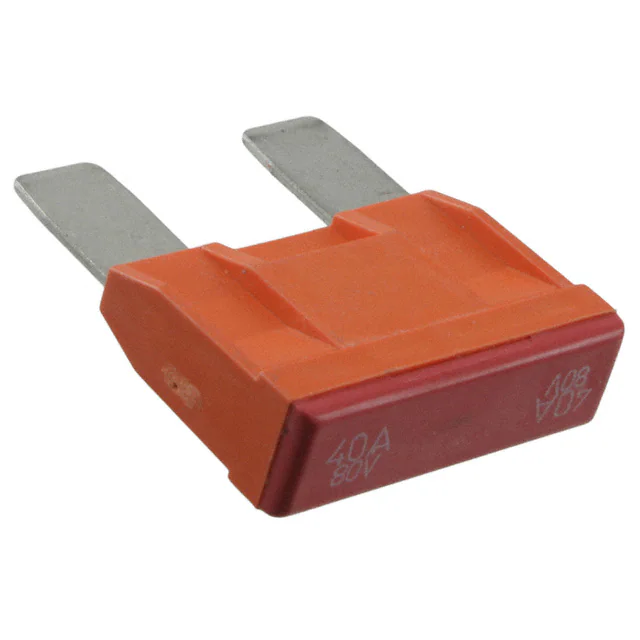

166.6885.5401FUSE AUTO 40A 80VDC BLADE MAX |
2,952 |
|
Datasheet | FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 40 A | - | 80 V | Slow Blow | 1kA | 12800.0 | cULus | - | Orange | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|
166.6885.5201FUSE AUTO 20A 80VDC BLADE MAX |
9,947 |
|
Datasheet | FK3 MAXI™ | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 20 A | - | 80 V | Slow Blow | 1kA | 2160.0 | cULus | - | Yellow | 1.169" L x 0.358" W x 0.839" H (29.70mm x 9.10mm x 21.30mm) | |
|

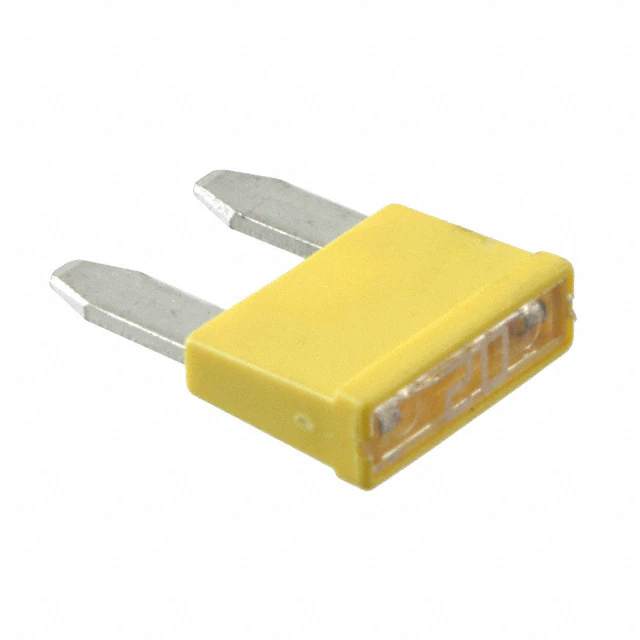

168.6785.5207FUSE AUTO 20A 32VDC BLADE MINI |
6,883 |
|
Datasheet | FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 20 A | - | 32 V | Fast Blow | 1kA | 331.0 | cULus | - | Yellow | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.5157FUSE AUTO 15A 32VDC BLADE MINI |
2,575 |
|
Datasheet | FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 15 A | - | 32 V | Fast Blow | 1kA | 178.0 | cULus | - | Blue | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) | |
|
168.6785.4207FUSE AUTOMOTIVE 2A 32VDC BLADE |
6,223 |
|
Datasheet | FK1 MINI® | Bulk | Discontinued at Digi-Key | Requires Holder | Automotive | 2 A | - | 32 V | Fast Blow | 1kA | 3.31 | cULus | - | Gray | 0.469" L x 0.150" W x 0.339" H (11.90mm x 3.80mm x 8.60mm) |
Frequently Asked Questions
What are Fuses components used for?
Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
