Fuses
Explore Fuses parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ADBC0200-BEFUSE CERM 200MA 1KVAC 1KVDC 3AB |
799 |
|
Datasheet | 0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 200 mA | 1 kV | 1 kV | Fast Blow | 10kA | 0.0031 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
|
0ADBC3000-BEFUSE CERM 3A 1KVAC 1KVDC 3AB 3AG |
233 |
|
Datasheet | 0ADBC | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3 A | 1 kV | 1 kV | Fast Blow | 10kA | 7.54 | cURus | -55°C ~ 125°C | - | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) | |
|
0463030.ERFUSE BRDMT 30A 250VAC/100VDC SMD |
5,273 |
|
Datasheet | 463 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 250 V | 100 V | Fast Blow | 100A AC, 50A DC | 916.0 | cURus | -55°C ~ 125°C | - | 0.398" L x 0.123" W x 0.123" H (10.10mm x 3.12mm x 3.12mm) | |
 Series.jpg "0505025.MXEP")
|
0505025.MXEPFUSE CERM 25A 500VAC 500VDC 3AB |
1,058 |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 25 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 145.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0456050.DRSDFUSE BRD MT 50A 125VAC 75VDC SMD |
2,515 |
|
Datasheet | NANO²® 456SD | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 50 A | 125 V | 75 V | Fast Blow | 100A AC, 600A DC | 2700.0 | cURus, PSE | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
0324040.MXPFUSE CERM 40A 250VAC 150VDC 3AB |
187 |
|
Datasheet | 324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 40 A | 250 V | 150 V | Fast Blow | 1kA AC, 400A DC | 22925.0 | CE, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0456060.DRSDEFUSE BRD MT 60A 250VAC 80VDC SMD |
1,232 |
|
Datasheet | NANO²® 456SDE | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 60 A | 250 V | 80 V | Fast Blow | 150A AC, 600A DC | 4260.0 | cURus | -55°C ~ 125°C | - | 0.480" L x 0.177" W x 0.177" H (12.20mm x 4.50mm x 4.50mm) | |
|
SF-2410FP0062T-2FUSE BRDMT 62MA 125VAC/125DC SMD |
1,003 |
|
Datasheet | SinglFuse™ SF-2410FP-T | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 62 mA | 125 V | 125 V | Fast Blow | 50A | 0.0012 | cUL, UL | -55°C ~ 125°C | - | 0.240" L x 0.102" W x 0.102" H (6.10mm x 2.59mm x 2.59mm) | |
|
0275030.MXLFUSE BRD MNT 30A 32VAC 32VDC AXL |
353 |
|
Datasheet | PICO® 275 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 30 A | 32 V | 32 V | Fast Blow | 100A AC, 300A DC | 288.0 | UL | -55°C ~ 125°C | - | 0.133" Dia x 0.310" L (3.38mm x 7.87mm) | |
|
0ADBP1000-REFUSE CERM 1A 1KVAC 1KVDC 3AB 3AG |
417 |
|
Datasheet | 0ADBP | Bulk | Active | Through Hole | Cartridge, Ceramic | 1 A | 1 kV | 1 kV | Fast Blow | 10kA | 0.21 | cURus | -55°C ~ 125°C | - | 0.266" Dia x 1.292" H (6.76mm x 32.82mm) | |
|
0298150.ZXEHFUSE AUTO 150A 32VDC AUTO LINK |
1,704 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 32 V | Slow Blow | 2kA | 100000.0 | UL | -40°C ~ 125°C | Orange | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0298200.ZXEHFUSE AUTO 200A 32VDC AUTO LINK |
399 |
|
Datasheet | MEGA® | Bulk | Active | Bolt Mount | Automotive | 200 A | - | 32 V | Slow Blow | 2kA | 204000.0 | UL | -40°C ~ 125°C | Blue | 1.149" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0505030.MXEPFUSE CERM 30A 500VAC 500VDC 3AB |
4,352 |
|
Datasheet | 505 | Bulk | Active | Through Hole | Cartridge, Ceramic | 30 A | 500 V | 500 V | Fast Blow | 30kA AC, 20kA DC | 280.0 | CE, cULus | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
0ACH-9800-TEFUSE BRD MT 80A 125VAC 72VDC SMD |
1,068 |
|
Datasheet | 0ACH | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 80 A | 125 V | 72 V | Fast Blow | 500A AC, 1kA DC | 1700.0 | AEC-Q200, cURus | -40°C ~ 125°C | - | 0.484" L x 0.177" W x 0.177" H (12.30mm x 4.50mm x 4.50mm) | |
|

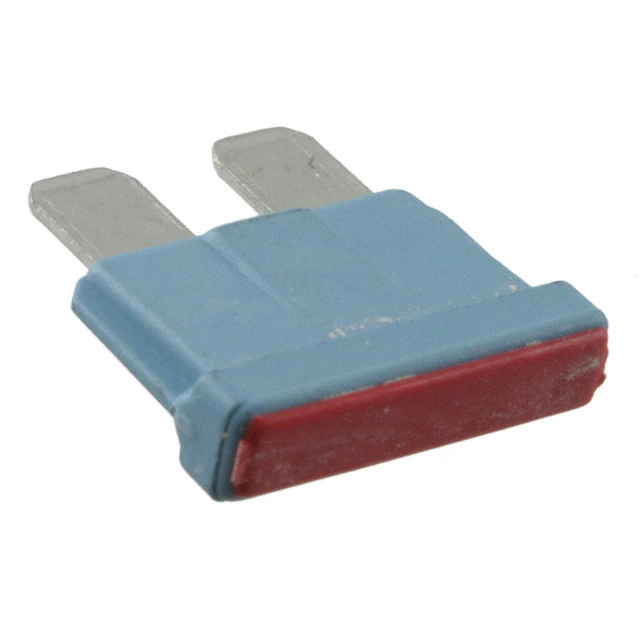

166.7000.5152FUSE AUTO 15A 80VDC BLADE ATO |
944 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 15 A | - | 80 V | Slow Blow | 1kA | 162.0 | cULus | - | Blue | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

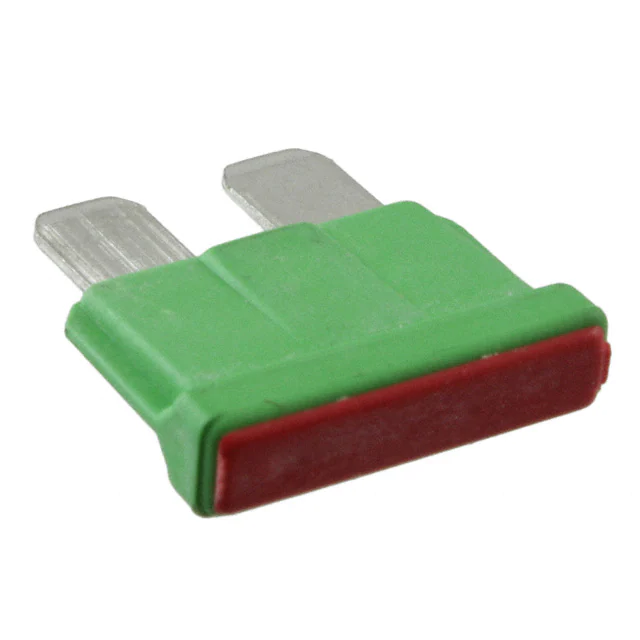

166.7000.5302FUSE AUTO 30A 80VDC BLADE ATO |
508 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 30 A | - | 80 V | Slow Blow | 1kA | 1500.0 | cULus | - | Green | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|

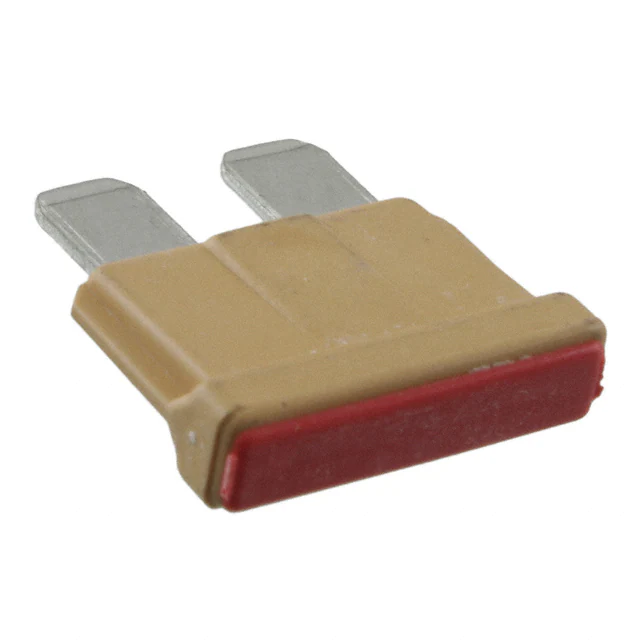

166.7000.4502FUSE AUTO 5A 80VDC BLADE ATO/ATC |
502 |
|
Datasheet | FKS ATO® | Bulk | Active | Requires Holder | Automotive | 5 A | - | 80 V | Slow Blow | 1kA | 24.3 | cULus | - | Tan | 0.748" L x 0.197" W x 0.520" H (19.00mm x 5.00mm x 13.20mm) | |
|
0273004.HFUSE BRD MNT 4A 125VAC/VDC RAD |
674 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Fast Blow | 10kA | 1.38 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273005.HFUSE BRD MNT 5A 125VAC/VDC RAD |
598 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 5 A | 125 V | 125 V | Fast Blow | 10kA | 2.21 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) | |
|
|
0273002.HFUSE BRD MNT 2A 125VAC/VDC RAD |
480 |
|
Datasheet | MICRO™ 273 | Bulk | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Fast Blow | 10kA | 0.3 | CSA, QPL, UL | -55°C ~ 85°C | - | 0.250" Dia x 0.350" H (6.35mm x 8.89mm) |
Frequently Asked Questions
What are Fuses components used for?
Fuses components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fuses part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fuses parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
