Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ER1641-512JSFIXED IND 5.1UH 335MA 720MOHM TH |
191 |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.1 µH | ±5% | 335 mA | - | Unshielded | 720mOhm Max | 44 @ 7.9MHz | 65MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
1140-330K-RCFIXED IND 33UH 15.8A 11 MOHM TH |
131 |
|
Datasheet | 1140 | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 15.8 A | 36.5A | Unshielded | 11mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.500" Dia (38.10mm) | 1.030" (26.16mm) |
|

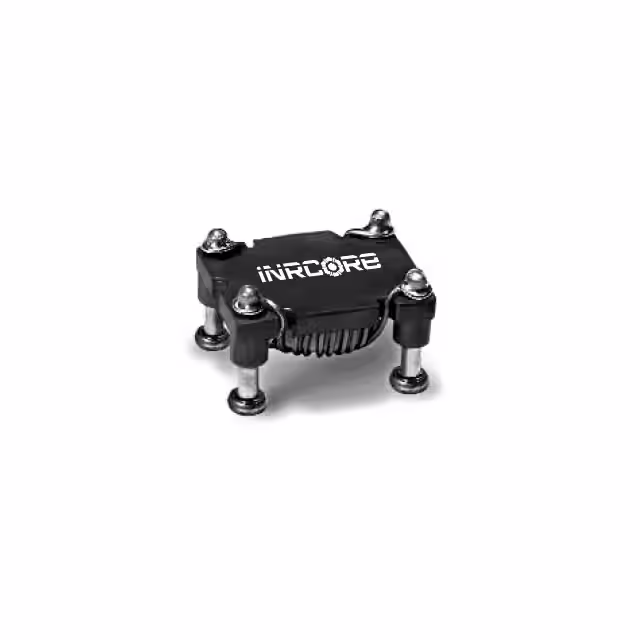

PL8705TFIXED IND 18.5UH 5.2A 23.24MOHM |
5,495 |
|
Datasheet | POGO | Nonstandard | Tape & Reel (TR) | Active | Toroidal | - | 18.5 µH | ±20% | 5.2 A | - | Unshielded | 23.24mOhm | - | - | - | -40°C ~ 130°C | - | - | Surface Mount | - | 0.725" L x 0.575" W (18.42mm x 14.61mm) | 0.380" (9.65mm) |
|
IHDM1008BCEV4R7M3AFIXED IND 4.7UH 45A 950 MOHM TH |
345 |
|
Datasheet | IHDM-1008BC-3A | Nonstandard | Tray | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 45 A | 70A | Unshielded | 950mOhm Max | - | 15MHz | - | -40°C ~ 180°C | 100 kHz | - | Through Hole | - | 1.005" L x 0.816" W (25.53mm x 20.73mm) | 0.896" (22.75mm) |
|
PE-51518NLFIXED IND 335UH 6A 95 MOHM TH |
142 |
|
Datasheet | - | Radial, Vertical, 4 Leads (Open) | Tray | Active | Toroidal | - | 335 µH | - | 6 A | - | Unshielded | 95mOhm Max | - | - | - | -40°C ~ 130°C | 50 kHz | - | Through Hole | - | 2.300" L x 1.110" W (58.42mm x 28.19mm) | 2.300" (58.42mm) |
|
PFC3519QM-301K06B-00CHOKE COMMON MODE |
119 |
|
Datasheet | PFC | Radial, Horizontal, 8 Leads | Bulk | Not For New Designs | Drum Core, Wirewound | Ferrite | 300 µH | ±10% | 5.5 A | - | Unshielded | - | - | - | - | -30°C ~ 120°C | 50 kHz | Choke Coils for PFC (Pin Terminal Type) | Through Hole | - | 1.457" L x 1.181" W (37.00mm x 30.00mm) | 0.827" (21.00mm) |
|
HRSPD127-223MFIXED IND 22UH 3.2A 53 MOHM SMD |
1,000 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 3.2 A | 3.71A | Shielded | 53mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-103MFIXED IND 10UH 4.2A 35 MOHM SMD |
381 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±20% | 4.2 A | 5.65A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-104MFIXED IND 100UH 1.7A 182MOHM SMD |
250 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 µH | ±20% | 1.7 A | 1.78A | Shielded | 182mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-473MFIXED IND 47UH 2.5A 88 MOHM SMD |
250 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 47 µH | ±20% | 2.5 A | 2.55A | Shielded | 88mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-563MFIXED IND 56UH 2.3A 110MOHM SMD |
250 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 56 µH | ±20% | 2.3 A | 2.36A | Shielded | 110mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-823MFIXED IND 82UH 1.8A 166MOHM SMD |
250 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 82 µH | ±20% | 1.8 A | 1.94A | Shielded | 166mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-683MFIXED IND 68UH 2.1A 125MOHM SMD |
249 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 68 µH | ±20% | 2.1 A | 2.13A | Shielded | 125mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-333MFIXED IND 33UH 2.8A 69 MOHM SMD |
238 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 2.8 A | 3.17A | Shielded | 69mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-105MFIXED IND 1MH 550MA 1.86 OHM SMD |
235 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±20% | 550 mA | 550mA | Shielded | 1.86Ohm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-334MFIXED IND 330UH 1A 540 MOHM SMD |
231 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±20% | 1 A | 960mA | Shielded | 540mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-222MFIXED IND 2.2UH 6.7A 14MOHM SMD |
223 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±20% | 6.7 A | 11.82A | Shielded | 14mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
|
HRSPD127-273MFIXED IND 27UH 2.9A 63 MOHM SMD |
151 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±20% | 2.9 A | 3.33A | Shielded | 63mOhm Max | - | - | - | -55°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
|
ER1537-02KRFIXED IND 220NH 1.81A 55 MOHM TH |
550 |
|
Datasheet | Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±10% | 1.81 A | - | Unshielded | 55mOhm Max | 50 @ 25MHz | 460MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
ER1537-30KRFIXED IND 5.6UH 495MA 320MOHM TH |
510 |
|
Datasheet | Military, MIL-PRF-39010/07, ER1537 | Axial | Tape & Reel (TR) | Active | - | Iron | 5.6 µH | ±10% | 495 mA | - | Unshielded | 320mOhm Max | 45 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
