Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82111E0000C022FIXED IND 22UH 3A 70 MOHM TH |
782 |
|
Datasheet | B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 3 A | - | Unshielded | 70mOhm | - | 110MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - |
|
B82476B1222M100FIXED IND 2.2UH 6.7A 10.5MOHM SM |
1,516 |
|
Datasheet | B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.7 A | 7A | Unshielded | 10.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
B82134A5301M000FIXED IND 210UH 300MA 6.4 OHM TH |
933 |
|
Datasheet | B82134 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 210 µH | ±20% | 300 mA | - | Unshielded | 6.4Ohm | - | 18MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.295" Dia x 1.181" L (7.50mm x 30.00mm) | - |
|
|
B82476B1153M100FIXED IND 15UH 3.4A 40 MOHM SMD |
230 |
|
Datasheet | B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.4 A | 3A | Unshielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
B82559A7103A016FIXED IND 10UH 11A 7.9 MOHM SMD |
18,951 |
|
Datasheet | ERU16 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11 A | 12.2A | Shielded | 7.9mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.736" L x 0.681" W (18.70mm x 17.30mm) | 0.343" (8.70mm) |
|
B82111B0000C013FIXED IND 8UH 3A 25 MOHM TH |
5,056 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 8 µH | ±20% | 3 A | - | Unshielded | 25mOhm | - | 145MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - |
|
B82111B0000C012FIXED IND 6UH 4A 17 MOHM TH |
3,099 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 6 µH | ±20% | 4 A | - | Unshielded | 17mOhm | - | 170MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 0.945" L (7.50mm x 24.00mm) | - |
|

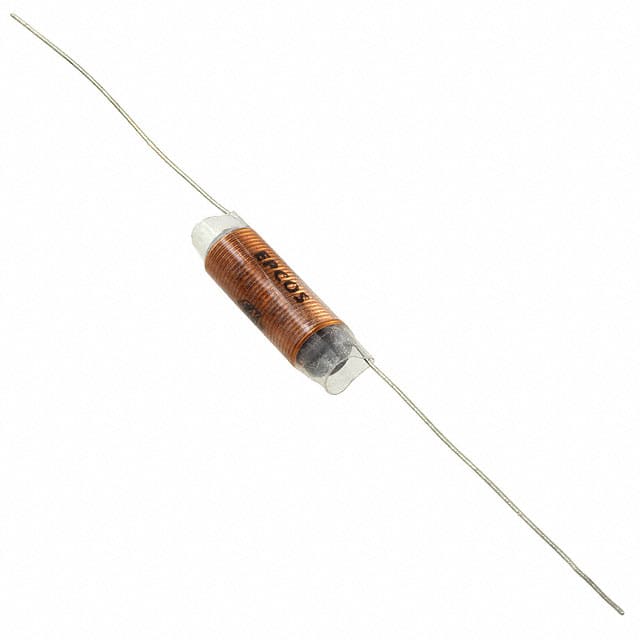

B82111B0000C014FIXED IND 17UH 2A 63 MOHM TH |
155 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 17 µH | ±20% | 2 A | - | Unshielded | 63mOhm | - | 100MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 0.945" L (7.00mm x 24.00mm) | - |
|
B82111B0000C020FIXED IND 20UH 3A 54 MOHM TH |
319 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 20 µH | ±20% | 3 A | - | Unshielded | 54mOhm | - | 125MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.236" Dia x 1.142" L (6.00mm x 29.00mm) | - |
|
B82111B0000C011FIXED IND 4UH 6A 14 MOHM TH |
901 |
|
Datasheet | B82111B | Axial | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 6 A | - | Unshielded | 14mOhm | - | 105MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 0.945" L (7.50mm x 24.00mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
