Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg "B82422H1334J000")
|
B82422H1334J000FIXED IND 330UH 90MA 13 OHM SMD |
4,000 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±5% | 90 mA | - | Unshielded | 13Ohm Max | 20 @ 796kHz | 4.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.094" (2.40mm) |
|
B82144F2822K000FIXED IND 8.2UH 2.65A 0.105OHM |
1,049 |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±10% | 2.65 A | 3.1A | Unshielded | 105mOhm Max | 40 @ 252kHz | 28MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|
B82498F3100J000FIXED IND 10NH 700MA 90 MOHM SMD |
16,543 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 10 nH | ±5% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 500MHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3151J000FIXED IND 150NH 400MA 420MOHM SM |
10,898 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 150 nH | ±5% | 400 mA | - | Unshielded | 420mOhm Max | 45 @ 250MHz | 1.15GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3390J000FIXED IND 39NH 600MA 120MOHM SMD |
7,866 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±5% | 600 mA | - | Unshielded | 120mOhm Max | 65 @ 500MHz | 2.1GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3689K000FIXED IND 6.8NH 800MA 50MOHM SMD |
6,456 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±10% | 800 mA | - | Unshielded | 50mOhm Max | 50 @ 1GHz | 6GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3181J001FIXED IND 180NH 340MA 530MOHM SM |
5,778 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 180 nH | ±5% | 340 mA | - | Unshielded | 530mOhm Max | 45 @ 250MHz | 1.05GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144A2225J000FIXED IND 2.2MH 120MA 9 OHM TH |
4,364 |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 120 mA | - | Unshielded | 9Ohm Max | 60 @ 252kHz | 800kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82144F2123K000FIXED IND 12UH 2.4A 0.13OHM TH |
3,877 |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±10% | 2.4 A | 2.65A | Unshielded | 130mOhm Max | 40 @ 252kHz | 20MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

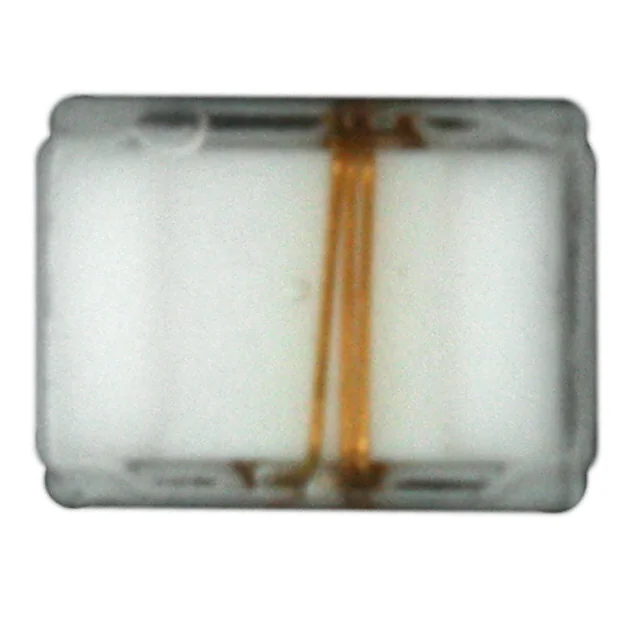

B82498F3150J000FIXED IND 15NH 650MA 130MOHM SMD |
3,854 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 15 nH | ±5% | 650 mA | - | Unshielded | 130mOhm Max | 50 @ 500MHz | 3.3GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
