Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

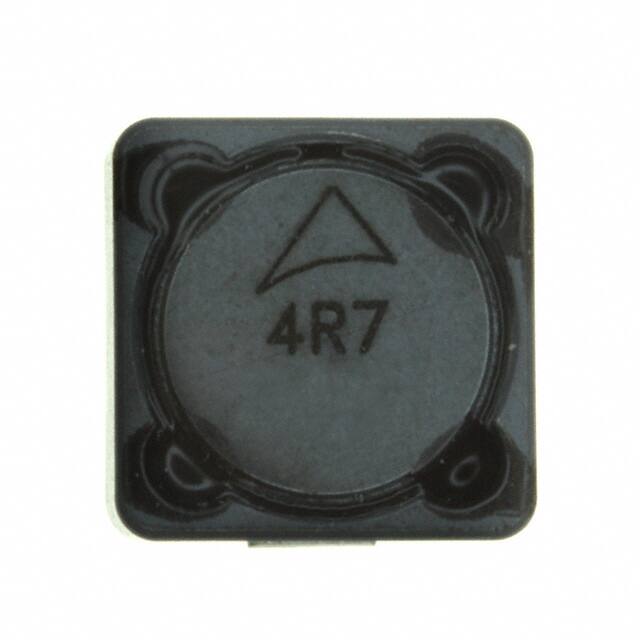

B82464Z4472MFIXED IND 4.7UH 4.9A 15 MOHM SMD |
2,921 |
|
Datasheet | B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4.9 A | 5.2A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4474MFIXED IND 470UH 500MA 930MOHM SM |
4,305 |
|
Datasheet | B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 500 mA | 550mA | Shielded | 930mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4684MFIXED IND 680UH 420MA 1.3OHM SMD |
3,763 |
|
Datasheet | B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

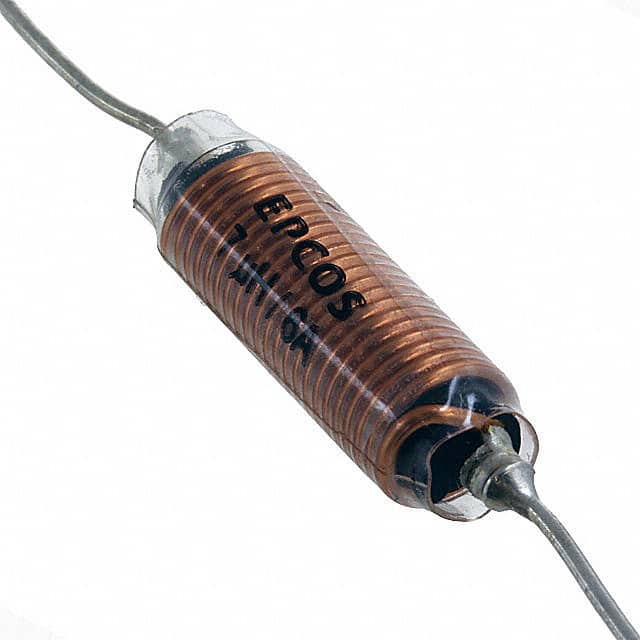

B82111E0000C020FIXED IND 7UH 6A 20 MOHM TH |
3,897 |
|
Datasheet | B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7 µH | ±20% | 6 A | - | Unshielded | 20mOhm | - | 180MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.295" Dia x 1.024" L (7.50mm x 26.00mm) | - |
|
|
B78108T1102J009FIXED IND 1UH 630MA 250 MOHM TH |
2,869 |
|
Datasheet | MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 630 mA | - | Unshielded | 250mOhm Max | 35 @ 25.2MHz | 180MHz | - | -55°C ~ 125°C | 25.2 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1103J000FIXED IND 10UH 230MA 1.7 OHM TH |
3,087 |
|
Datasheet | MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±5% | 230 mA | - | Unshielded | 1.7Ohm Max | 50 @ 7.96MHz | 60MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1104J000FIXED IND 100UH 85MA 12.5 OHM TH |
1,827 |
|
Datasheet | MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±5% | 85 mA | - | Unshielded | 12.5Ohm Max | 60 @ 2.52MHz | 11MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1153J009FIXED IND 15UH 185MA 2.7 OHM TH |
2,876 |
|
Datasheet | MCC | Axial | Tape & Box (TB) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 185 mA | - | Unshielded | 2.7Ohm Max | 55 @ 2.52MHz | 45MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1183J000FIXED IND 18UH 175MA 2.9 OHM TH |
3,901 |
|
Datasheet | MCC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±5% | 175 mA | - | Unshielded | 2.9Ohm Max | 55 @ 2.52MHz | 40MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
|
|
B78108T1222J000FIXED IND 2.2UH 520MA 350MOHM TH |
1,877 |
|
Datasheet | MCC | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±5% | 520 mA | - | Unshielded | 350mOhm Max | 40 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | - | 0.130" Dia x 0.276" L (3.30mm x 7.00mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
