Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82131A5402M000FIXED IND 1UH 4A 14 MOHM TH |
4,142 |
|
Datasheet | B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 1 µH | ±20% | 4 A | - | Unshielded | 14mOhm | - | 199MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|
|
B82131A5701M000FIXED IND 14UH 700MA 760 MOHM TH |
4,777 |
|
Datasheet | B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 14 µH | ±20% | 700 mA | - | Unshielded | 760mOhm | - | 53MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|
B82111E0000C024FIXED IND 56UH 1.5A 300 MOHM TH |
3,618 |
|
Datasheet | B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.5 A | - | Unshielded | 300mOhm | - | 70MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 1.024" L (6.50mm x 26.00mm) | - |
|
|
B82131A5301M000FIXED IND 40UH 300MA 4.1 OHM TH |
2,060 |
|
Datasheet | B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 40 µH | ±20% | 300 mA | - | Unshielded | 4.1Ohm | - | 31MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|
B82476B1152M100FIXED IND 1.5UH 6.9A 9 MOHM SMD |
1,323 |
|
Datasheet | B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.9 A | 8A | Unshielded | 9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|
B82477R4152M100FIXED IND 1.5UH 9.75A 6.5MOHM SM |
1,048 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 9.75 A | 20A | Shielded | 6.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4362M100FIXED IND 3.6UH 8.5A 10 MOHM SMD |
4,866 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 8.5 A | 13A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4562M100FIXED IND 5.6UH 7.6A 11.5MOHM SM |
4,186 |
|
Datasheet | B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 7.6 A | 11A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|

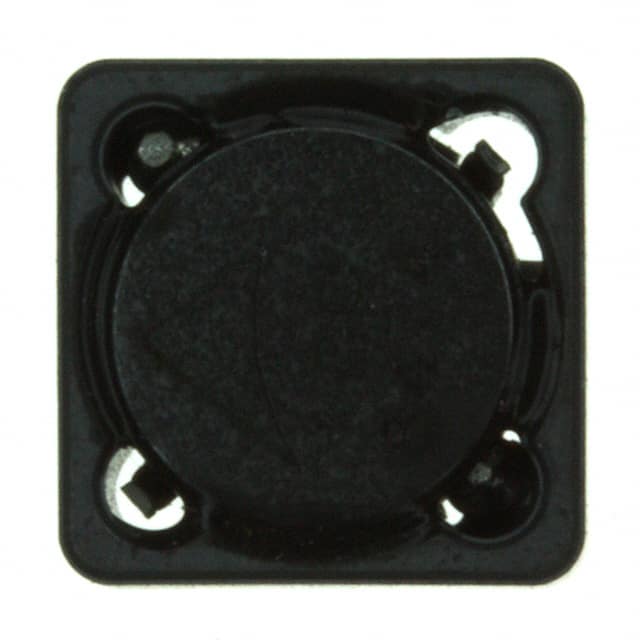

B82464Z4103MFIXED IND 10UH 3.4A 30 MOHM SMD |
4,219 |
|
Datasheet | B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82464Z4222MFIXED IND 2.2UH 6.5A 10 MOHM SMD |
4,108 |
|
Datasheet | B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.5 A | 7A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
