Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1394J000SMT-INDUCTOR 2220-T 390 UH 10% |
1,595 |
|
Datasheet | B82442T1 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 390 µH | ±5% | 260 mA | 520mA | Unshielded | 3.7Ohm Max | 20 @ 796kHz | 3MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442T1474J000SMT-INDUCTOR 2220-T 470 UH 10%, |
4,349 |
|
Datasheet | B82442T1 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | Ferrite | 470 µH | ±5% | 240 mA | 460mA | Unshielded | 4.73Ohm Max | 20 @ 796kHz | 2.6MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82442T1274K000FIXED IND 270UH 290MA 2.95OHM SM |
3,904 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 270 µH | ±10% | 290 mA | 560mA | Unshielded | 2.95Ohm Max | 20 @ 796kHz | 3.5MHz | AEC-Q200 | -55°C ~ 150°C | 796 kHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|

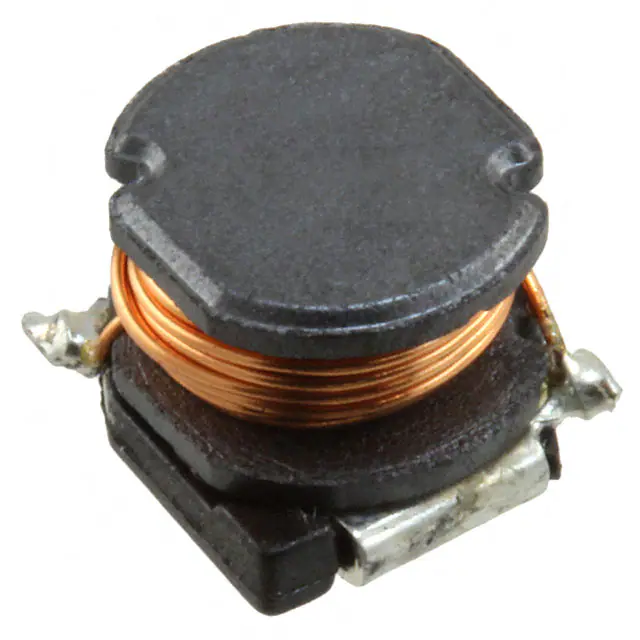

B82471A1153M000FIXED IND 15UH 1.3A 140 MOHM SMD |
1,162 |
|
Datasheet | B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.3 A | 1.45A | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|
|
B82471A1154K000FIXED IND 150UH 400MA 1.1OHM SMD |
1,057 |
|
Datasheet | B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 400 mA | 480mA | Unshielded | 1.1Ohm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|
|
B82471A1683K000FIXED IND 68UH 610MA 460MOHM SMD |
4,802 |
|
Datasheet | B82471A1 | Nonstandard | Tape & Reel (TR) | Not For New Designs | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 610 mA | 700mA | Unshielded | 460mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.240" L x 0.220" W (6.10mm x 5.60mm) | 0.193" (4.90mm) |
|
B82131A5202M000FIXED IND 3UH 2A 90 MOHM TH |
1,664 |
|
Datasheet | B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 3 µH | ±20% | 2 A | - | Unshielded | 90mOhm | - | 113MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
.jpg "B82422A3180K100")
|
B82422A3180K100FIXED IND 18NH 640MA 120MOHM SMD |
3,886 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 18 nH | ±10% | 640 mA | - | Unshielded | 120mOhm Max | 30 @ 100MHz | 2.5GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A3390K100FIXED IND 39NH 530MA 180MOHM SMD |
4,014 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 39 nH | ±10% | 530 mA | - | Unshielded | 180mOhm Max | 25 @ 50MHz | 1.45GHz | AEC-Q200 | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
|
|
B82422A3391K100FIXED IND 390NH 190MA 1.4OHM SMD |
3,413 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 390 nH | ±10% | 190 mA | - | Unshielded | 1.4Ohm Max | 22 @ 30MHz | 540MHz | AEC-Q200 | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.083" (2.10mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
