Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82442T1272K000FIXED IND 2.7UH 2.53A 42MOHM SMD |
2,737 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±10% | 2.53 A | 5.5A | Unshielded | 42mOhm Max | 15 @ 7.96MHz | 36MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82472G4824M000SMT-INDUCTOR 7.3X7.3 820 UH 0.20 |
2,870 |
|
Datasheet | B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 820 µH | ±20% | 500 mA | 170mA | Shielded | 3.9Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|
|
B82472G4334M000SMT-INDUCTOR 7X 7 330 UH 0,26 |
3,408 |
|
Datasheet | B82472G4 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 330 µH | ±20% | 290 mA | 260mA | Shielded | 1.98Ohm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.177" (4.50mm) |
|

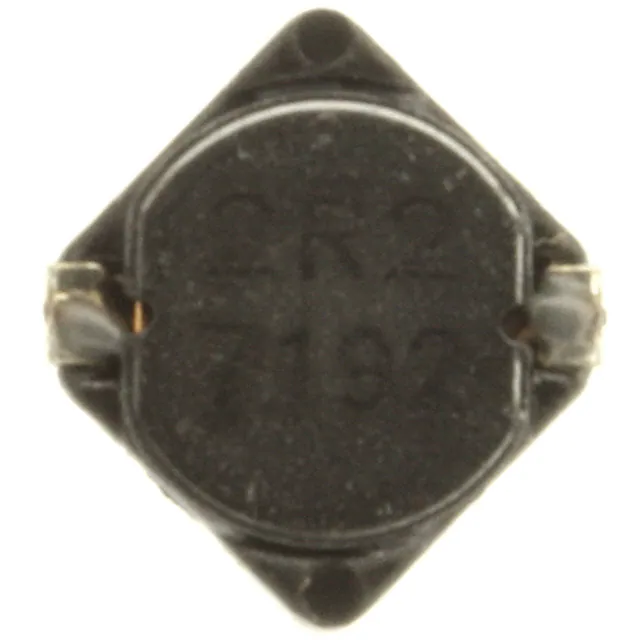

B82470A1222MFIXED IND 2.2UH 1.35A 90MOHM SMD |
3,236 |
|
Datasheet | B82470-A1-M | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 1.35 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.047" (1.20mm) |
|
B82498F3279MFIXED IND 2.7NH 1A 30 MOHM SMD |
4,348 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 nH | ±20% | 1 A | - | Unshielded | 30mOhm Max | 50 @ 1.5GHz | 9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3569MFIXED IND 5.6NH 900MA 40MOHM SMD |
1,297 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 5.6 nH | ±20% | 900 mA | - | Unshielded | 40mOhm Max | 50 @ 1GHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
|
B82498F3829MFIXED IND 8.2NH 700MA 90MOHM SMD |
4,440 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 8.2 nH | ±20% | 700 mA | - | Unshielded | 90mOhm Max | 50 @ 1GHz | 5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82473A1103K000FIXED IND 10UH 2.3A 70 MOHM SMD |
1,392 |
|
Datasheet | B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 2.3 A | 2.5A | Unshielded | 70mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473A1153K000FIXED IND 15UH 1.8A 90 MOHM SMD |
3,703 |
|
Datasheet | B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±10% | 1.8 A | 2A | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
|
|
B82473A1154K000FIXED IND 150UH 580MA 640MOHM SM |
1,338 |
|
Datasheet | B82473A1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 580 mA | 650mA | Unshielded | 640mOhm Max | - | - | - | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.327" L x 0.287" W (8.30mm x 7.30mm) | 0.217" (5.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
