Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

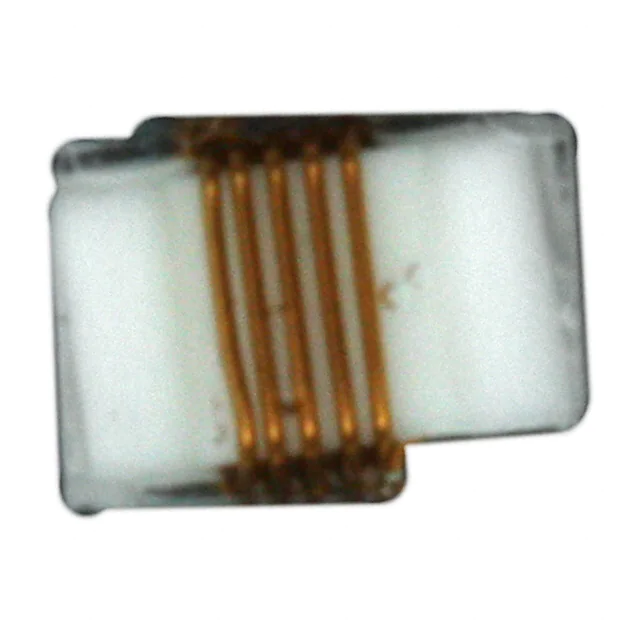

B82498F3270J000FIXED IND 27NH 700MA 90 MOHM SMD |
40,992 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 27 nH | ±5% | 700 mA | - | Unshielded | 90mOhm Max | 60 @ 500MHz | 2.5GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144A2476J000FIXED IND 47MH 30MA 230 OHM TH |
28,572 |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 mH | ±5% | 30 mA | - | Unshielded | 230Ohm Max | 40 @ 79.6kHz | 180kHz | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
B82498F3470J000FIXED IND 47NH 600MA 130MOHM SMD |
28,207 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 47 nH | ±5% | 600 mA | - | Unshielded | 130mOhm Max | 65 @ 500MHz | 2GHz | - | -55°C ~ 125°C | 200 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3101J000FIXED IND 100NH 450MA 280MOHM SM |
27,171 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 100 nH | ±5% | 450 mA | - | Unshielded | 280mOhm Max | 55 @ 500MHz | 1.35GHz | - | -55°C ~ 125°C | 150 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3471J000FIXED IND 470NH 190MA 1.9OHM SMD |
22,911 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 470 nH | ±5% | 190 mA | - | Unshielded | 1.9Ohm Max | 30 @ 100MHz | 650MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3681J000FIXED IND 680NH 190MA 1.7OHM SMD |
18,075 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 680 nH | ±5% | 190 mA | - | Unshielded | 1.7Ohm Max | 23 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3821J000FIXED IND 820NH 180MA 1.9OHM SMD |
11,774 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 1.9Ohm Max | 23 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3569K000FIXED IND 5.6NH 900MA 40MOHM SMD |
11,742 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 5.6 nH | ±10% | 900 mA | - | Unshielded | 40mOhm Max | 50 @ 1GHz | 7GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82498F3279K000FIXED IND 2.7NH 1A 30 MOHM SMD |
10,118 |
|
Datasheet | SIMID | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2.7 nH | ±10% | 1 A | - | Unshielded | 30mOhm Max | 50 @ 1.5GHz | 9GHz | - | -55°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.091" L x 0.067" W (2.30mm x 1.70mm) | 0.055" (1.40mm) |
|
B82144A2106J000FIXED IND 10MH 60MA 42 OHM TH |
10,025 |
|
Datasheet | LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 60 mA | - | Unshielded | 42Ohm Max | 50 @ 79.6kHz | 350kHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
