Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82477P2153M000FIXED IND 15UH 3.7A 30 MOHM SMD |
4,664 |
|
Datasheet | B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.7 A | 3.3A | Shielded | 30mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
B82477P4684M000FIXED IND 680UH 690MA 1.05OHM SM |
3,633 |
|
Datasheet | B82477P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 690 mA | 780mA | Shielded | 1.05Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477P2224M000FIXED IND 220UH 1.15A 300MOHM SM |
1,142 |
|
Datasheet | B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.15 A | 800mA | Shielded | 300mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
|
B82477P2683M000FIXED IND 68UH 1.85A 110MOHM SMD |
2,827 |
|
Datasheet | B82477P2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.85 A | 1.5A | Shielded | 110mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.256" (6.50mm) |
|
B82464P4684M000FIXED IND 680UH 420MA 1.3OHM SMD |
1,215 |
|
Datasheet | B82464P4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 420 mA | 460mA | Shielded | 1.3Ohm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|
B82559B5332A019FIXED IND 3.3UH 25.1A 2.25 MOHM |
2,642 |
|
Datasheet | ERU19 - Flat Wire Inductor | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±10% | 25.1 A | 35.1A | Shielded | 2.25mOhm | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.783" L x 0.728" W (19.90mm x 18.50mm) | 0.417" (10.60mm) |
|

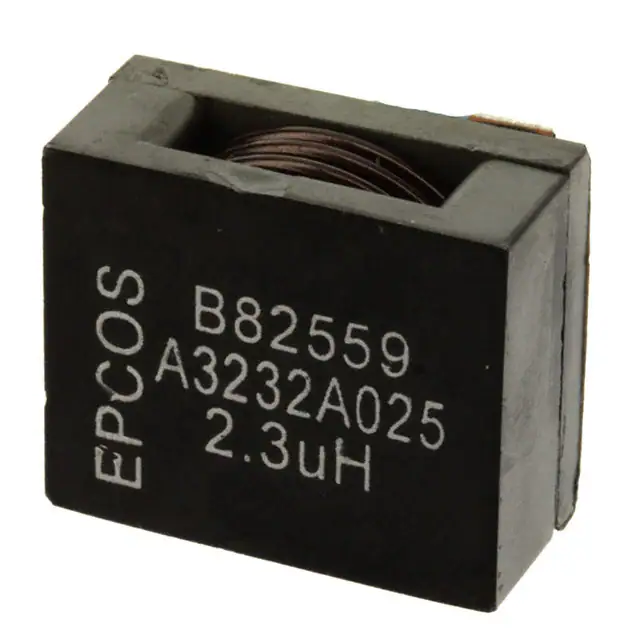

B82559A3232A025FIXED IND 2.3UH 0.6 MOHM SMD |
4,913 |
|
Datasheet | ERU25 - Flat Wire Inductor | Nonstandard | Tray | Active | Drum Core, Wirewound | Ferrite | 2.3 µH | ±7% | - | 41A | Shielded | 0.6mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.520" (13.20mm) |
|
B82559A4472A 20FIXED IND 4.7UH 2.4 MOHM SMD |
1,624 |
|
Datasheet | ERU20 - Flat Wire Inductor | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±10% | - | 22A | Shielded | 2.4mOhm Max | - | - | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.846" L x 0.827" W (21.50mm x 21.00mm) | 0.386" (9.80mm) |
|
B82559A6792A025FIXED IND 7.9UH 2 MOHM SMD |
2,059 |
|
Datasheet | ERU25 - Flat Wire Inductor | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 7.9 µH | ±7% | - | 26A | Shielded | 2mOhm | - | - | - | -40°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.996" L x 0.925" W (25.30mm x 23.50mm) | 0.506" (12.85mm) |
|
B82442T1682K000FIXED IND 6.8UH 1.68A 106MOHM SM |
4,038 |
|
Datasheet | SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 1.68 A | 3.7A | Unshielded | 106mOhm Max | 15 @ 7.96MHz | 23MHz | AEC-Q200 | -55°C ~ 150°C | 7.96 MHz | - | Surface Mount | - | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
