Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1107R1-R40-RFIXED IND 400NH 55A 0.29MOHM SMD |
1,355 |
|
Datasheet | FLAT-PAC, FP1107 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 400 nH | ±10% | 55 A | 25A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.283" W (11.00mm x 7.20mm) | 0.295" (7.50mm) |
|
FP1007R6-R22-RFIXED IND 220NH 61A 0.29MOHM SMD |
705 |
|
Datasheet | FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 61 A | 50A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
MPIA4020V2-3R3-RFIXED IND 3.3UH 3.3A 85 MOHM SMD |
5,714 |
|
Datasheet | MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 3.3 µH | ±20% | 3.3 A | 4A | Shielded | 85mOhm Max | - | 25MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.079" (2.00mm) |
|
HCM1A1305V2-150-RFIXED IND 15UH 6.5A 27.1MOHM SMD |
399 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 6.5 A | 9.5A | Shielded | 27.1mOhm Max | - | 6MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
MPIA4015V2-4R7-RFIXED IND 4.7UH 2.2A 130MOHM SMD |
2,995 |
|
Datasheet | MPIA40-V2 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Molded | Metal Composite | 4.7 µH | ±20% | 2.2 A | 3A | Shielded | 130mOhm Max | - | 22MHz | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.195" L x 0.165" W (4.95mm x 4.20mm) | 0.059" (1.50mm) |
|
HCP0805-R68-RFIXED IND 680NH 17.5A 4.5MOHM SM |
18,713 |
|
Datasheet | HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 680 nH | ±20% | 17.5 A | 25A | Shielded | 4.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
|
SD7030-7R3-RFIXED IND 7UH 2.3A 54 MOHM SMD |
1,119 |
|
Datasheet | SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 2.3 A | 2.1A | Shielded | 54mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
|
HCM1A1305V2-3R3-RFIXED IND 3.3UH 12A 9.2 MOHM SMD |
950 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 12 A | 19A | Shielded | 9.2mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
FP1308-R32-RFIXED IND 320NH 68A 0.24MOHM SMD |
383 |
|
Datasheet | FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 320 nH | ±10% | 68 A | 45A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|

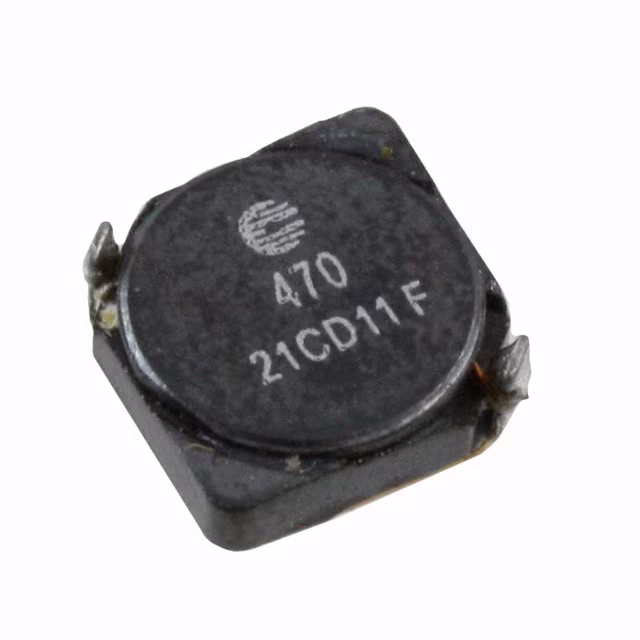

SD6020-470-RFIXED IND 47UH 610MA 595MOHM SMD |
2,613 |
|
Datasheet | SD6020 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 610 mA | 540mA | Shielded | 595mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
