Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

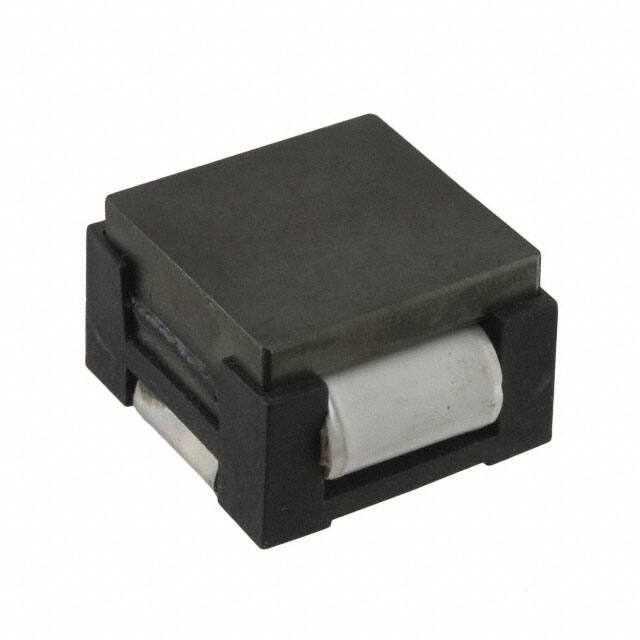

HC3-2R2-RFIXED IND 2.2UH 55.5A 0.7MOHM SM |
2,137 |
|
Datasheet | HC3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 55.5 A | 60A | Unshielded | 0.7mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 1.181" L x 0.996" W (30.00mm x 25.30mm) | 0.689" (17.50mm) |
-,65-White-Field.jpg "MCL1005-2R2-R")
|
MCL1005-2R2-RFIXED IND 2.2NH 300MA 150MOHM SM |
37,237 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.2 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-1R8-RFIXED IND 1.8NH 300MA 120MOHM SM |
29,750 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1.8 nH | ±0.3nH | 300 mA | - | Unshielded | 120mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-4R7-RFIXED IND 4.7NH 300MA 250MOHM SM |
25,662 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 250mOhm Max | 8 @ 100MHz | 4GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
MCLA1005V2-200-RFIXED IND 20NH 300MA 600MOHM SMD |
24,943 |
|
Datasheet | MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 20 nH | ±5% | 300 mA | - | Unshielded | 600mOhm Max | 8 @ 100MHz | 2GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-2R7-RFIXED IND 2.7NH 300MA 150MOHM SM |
19,825 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 2.7 nH | ±0.3nH | 300 mA | - | Unshielded | 150mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-560-RFIXED IND 56NH 200MA 1.2 OHM SMD |
19,512 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 56 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 750MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-331-RFIXED IND 330NH 50MA 7 OHM SMD |
19,510 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 330 nH | ±5% | 50 mA | - | Unshielded | 7Ohm Max | 6 @ 500MHz | 350MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCL1005-271-RFIXED IND 270NH 100MA 4.5OHM SMD |
19,319 |
|
Datasheet | MCL1005 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 270 nH | ±5% | 100 mA | - | Unshielded | 4.5Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
|
|
MCLA1005V2-150-RFIXED IND 15NH 300MA 500MOHM SMD |
19,317 |
|
Datasheet | MCLA1005V2 | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 15 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.3GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.026" (0.65mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
