Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1707V2-6R8-RFIXED IND 6.8UH 14A 7.16MOHM SMD |
3,406 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 14 A | 20A | Shielded | 7.16mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
HCF1007-R30-RFIXED IND 300NH 30A 0.9 MOHM SMD |
4,644 |
|
Datasheet | HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±20% | 30 A | 48A | Unshielded | 0.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|

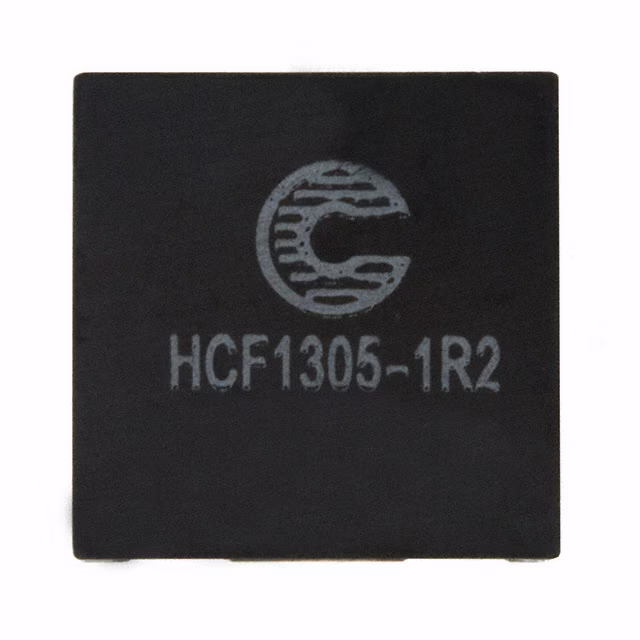

HCF1305-1R2-RFIXED IND 1.2UH 22A 1.9 MOHM SMD |
3,930 |
|
Datasheet | HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 22 A | 20A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
CPL2-3-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD |
3,246 |
|
Datasheet | CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.063" L x 0.335" W (27.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
CL1110R1-4-R050-RFIXED IND 250NH 0.3OHM SMD |
2,546 |
|
Datasheet | CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 250 nH | ±20% | - | 20A | - | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 0.748" L x 0.449" W (19.00mm x 11.40mm) | 0.413" (10.50mm) |
|
HCM1305-1R8-RFIXED IND 1.8UH 21A 4.6 MOHM SMD |
3,454 |
|
Datasheet | HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.8 µH | ±20% | 21 A | 40A | Shielded | 4.6mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-6R8-RFIXED IND 6.8UH 11A 15 MOHM SMD |
4,633 |
|
Datasheet | HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 11 A | 21A | Shielded | 15mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1305-R33-RFIXED IND 330NH 42A 0.92MOHM SMD |
3,804 |
|
Datasheet | HCM1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 330 nH | ±20% | 42 A | 80A | Shielded | 0.92mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
CPL-4-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
4,572 |
|
Datasheet | CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.417" L x 0.394" W (36.00mm x 10.00mm) | 0.189" (4.80mm) |
|
|
CL1110-4-100TR-RFIXED IND 470NH 0.69OHM SMD |
3,054 |
|
Datasheet | CL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±20% | - | 15A | - | 690mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 4 Phase | Surface Mount | - | 0.748" L x 0.449" W (19.00mm x 11.40mm) | 0.413" (10.50mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
