Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP2.8B-331-RFIXED IND 330UH 420MA SMD |
1,348 |
|
Datasheet | UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 420 mA | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
|
FP1012V2-R470-RIND FLAT PAC 470NH 22A SMT 2 |
2,897 |
|
Datasheet | FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±15% | 84 A | 22A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|

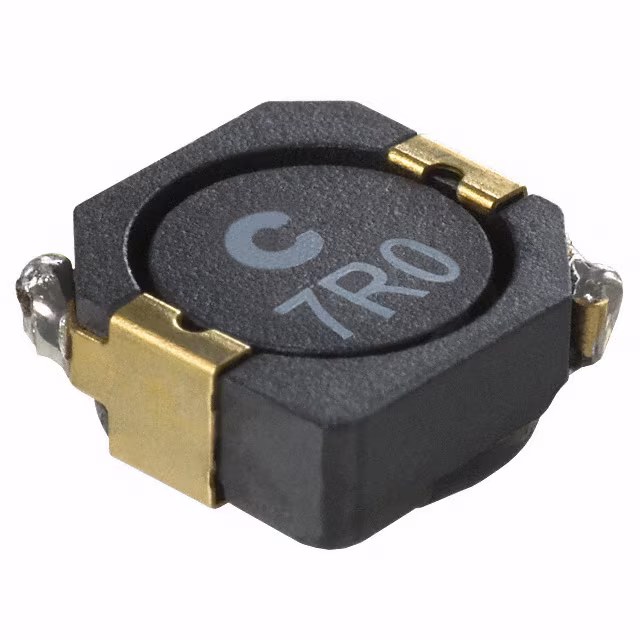

CD1-7R0-RFIXED IND 7UH 4.55A 27 MOHM SMD |
4,235 |
|
Datasheet | CD | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 7 µH | ±30% | 4.55 A | 4.8A | Shielded | 27mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.409" W (10.50mm x 10.40mm) | 0.157" (4.00mm) |
|
HCM1A1105V2-R68-RFIXED IND 680NH 24.5A 1.93 MOHM |
1,446 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 680 nH | ±20% | 24.5 A | 30A | Shielded | 1.93mOhm Max | - | 57MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.394" W (10.80mm x 10.00mm) | 0.197" (5.00mm) |
|
|
MP2A-R47-RFIXED IND 470NH 3.52A 24MOHM SMD |
4,889 |
|
Datasheet | MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 470 nH | ±20% | 3.52 A | 5.8A | Unshielded | 24mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
UP1B-151-RFIXED IND 150UH 400MA 1.61OHM SM |
2,923 |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 400 mA | 460mA | Unshielded | 1.61Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.350" L x 0.240" W (8.89mm x 6.10mm) | 0.197" (5.00mm) |
|
|
RL1218-331-RFIXED IND 330UH 1.25A 366MOHM TH |
4,719 |
|
Datasheet | RL1218 | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.25 A | 1.73A | Unshielded | 366mOhm Max | - | 2MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.480" Dia (12.20mm) | 0.709" (18.00mm) |
|
|
CPL-3-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
1,035 |
|
Datasheet | CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.063" L x 0.335" W (27.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
MP2A-1R0-RFIXED IND 1UH 2.11A 67 MOHM SMD |
1,835 |
|
Datasheet | MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 1 µH | ±20% | 2.11 A | 3.63A | Unshielded | 67mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
|
|
MP2A-R68-RFIXED IND 680NH 3.31A 27MOHM SMD |
3,243 |
|
Datasheet | MICRO-PAC PLUS™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 680 nH | ±20% | 3.31 A | 4.83A | Unshielded | 27mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.205" W (7.50mm x 5.20mm) | 0.071" (1.80mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
