Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

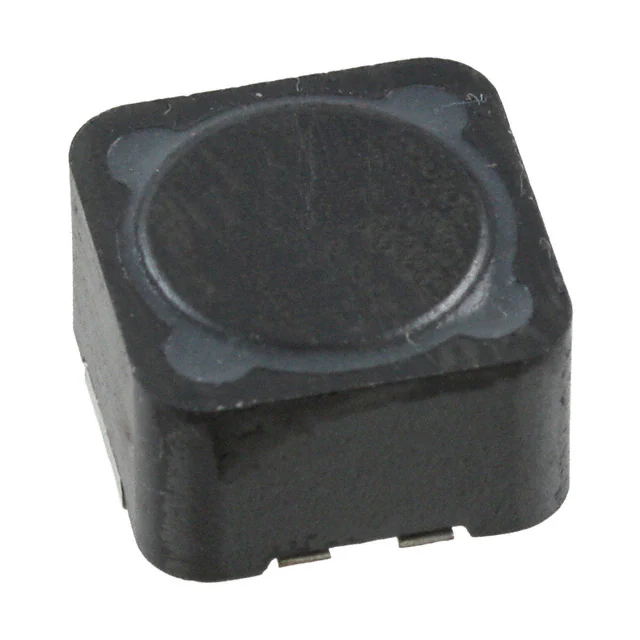

DR127-681FIXED IND 680UH 760MA 1.08OHM SM |
1,438 |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 760 mA | 1.39A | Shielded | 1.08Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
DR127-821FIXED IND 820UH 650MA 1.47OHM SM |
3,161 |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 820 µH | ±20% | 650 mA | 1.27A | Shielded | 1.47Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

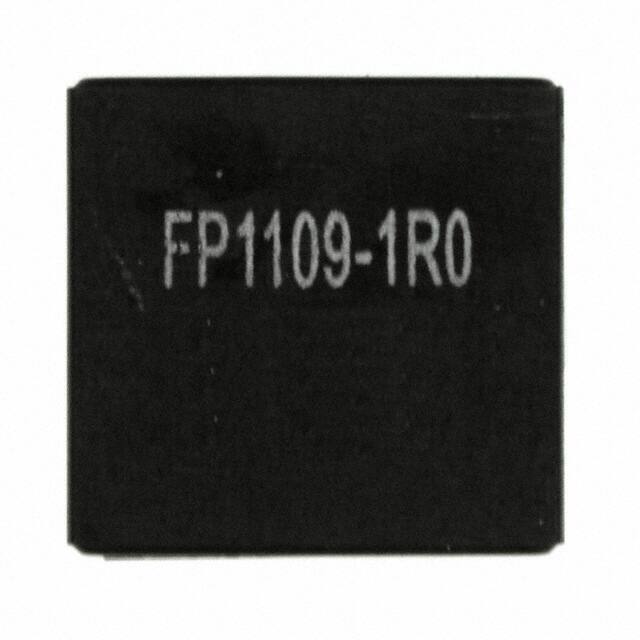

FP1109-1R0-RFIXED IND 950NH 35A 0.42MOHM SMD |
1,503 |
|
Datasheet | FLAT-PAC, FP1109 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 950 nH | ±10% | 35 A | 11.5A | Unshielded | 0.42mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.441" L x 0.441" W (11.20mm x 11.20mm) | 0.354" (9.00mm) |
|
UP2-3R3-RFIXED IND 3.3UH 6.5A 13.8MOHM SM |
4,957 |
|
Datasheet | UNI-PAC™ 2 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 6.5 A | 5.1A | Unshielded | 13.8mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.541" L x 0.345" W (13.74mm x 8.76mm) | 0.231" (5.86mm) |
|
UP3B-R47-RFIXED IND 470NH 16A 2.1 MOHM SMD |
2,669 |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 16 A | 25.1A | Unshielded | 2.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.760" L x 0.520" W (19.30mm x 13.21mm) | 0.268" (6.80mm) |
|
SD3112-151-RFIXED IND 150UH 149MA 6.01OHM SM |
4,532 |
|
Datasheet | SD3112 | Nonstandard | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 149 mA | 142mA | Shielded | 6.01Ohm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.047" (1.20mm) |
|
DRA127-R47-RFIXED IND 470NH 22.5A 1.2MOHM SM |
4,892 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 470 nH | ±20% | 22.5 A | 56A | Shielded | 1.2mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
FP1010R3-R270-RIND FLAT PAC 270NH 63A 2 PADS |
2,832 |
|
Datasheet | FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 270 nH | ±10% | 78 A | 30A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010R3-R330-RIND FLAT PAC 330NH 63A 2 PADS |
2,486 |
|
Datasheet | FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 78 A | 20A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010R3-R300-RIND FLAT PAC 300NH 63A 2 PADS |
2,936 |
|
Datasheet | FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 210 nH | ±10% | 78 A | 27A | Shielded | 0.145mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
