Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP5-680-RFIXED IND 68UH 2.3A 130 MOHM SMD |
1,190 |
|
Datasheet | UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 68 µH | ±20% | 2.3 A | 3.5A | Unshielded | 130mOhm Max | - | 6.5MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
|
UP5-681-RFIXED IND 680UH 720MA 1.1OHM SMD |
4,362 |
|
Datasheet | UNI-PAC™ 5 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 720 mA | 1.2A | Unshielded | 1.1Ohm Max | - | 2.2MHz | - | -25°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
FP1010R1-R330-RFIXED IND 330NH 50A 0.185MOHM SM |
4,540 |
|
Datasheet | FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 nH | ±15% | 50 A | 23A | Shielded | 0.185mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.276" W (10.00mm x 7.00mm) | 0.394" (10.00mm) |
|

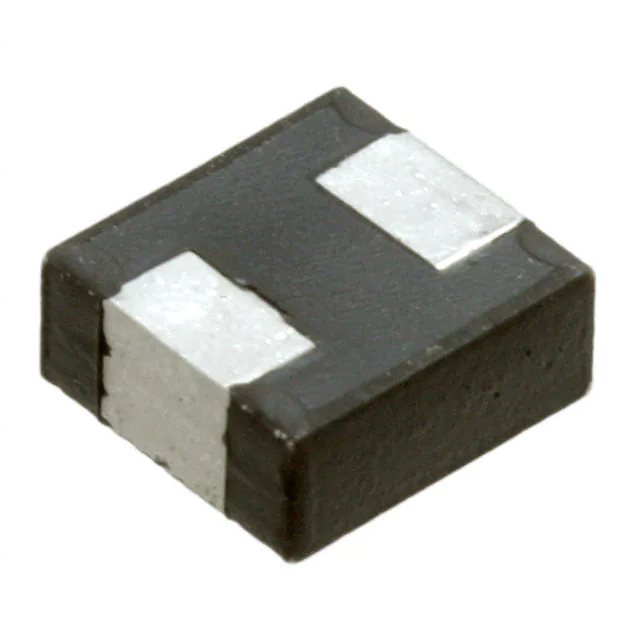

MPI4040R4-R22-RFIXED IND 220NH 10.1A 5.3MOHM SM |
2,363 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 220 nH | ±20% | 10.1 A | 15A | Shielded | 5.3mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPI4040R4-R33-RFIXED IND 330NH 9.5A 6 MOHM SMD |
3,371 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 9.5 A | 12.8A | Shielded | 6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPI4040R4-R47-RFIXED IND 450NH 8.1A 8.2MOHM SMD |
4,767 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 450 nH | ±20% | 8.1 A | 11.5A | Shielded | 8.2mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPI4040R4-1R0-RFIXED IND 1UH 5.7A 17 MOHM SMD |
4,722 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 5.7 A | 8.2A | Shielded | 17mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPI4040R4-2R2-RFIXED IND 2.2UH 3.9A 35 MOHM SMD |
4,311 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 2.2 µH | ±20% | 3.9 A | 5.7A | Shielded | 35mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPI4040R4-3R3-RFIXED IND 3.3UH 3.3A 49 MOHM SMD |
2,387 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 3.3 µH | ±20% | 3.3 A | 4.5A | Shielded | 49mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
MPI4040R4-4R7-RFIXED IND 4.7UH 2.9A 67 MOHM SMD |
2,005 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 2.9 A | 3.9A | Shielded | 67mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
