Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TP4-470-RFIXED IND 47UH 590MA 908MOHM SMD |
3,439 |
|
Datasheet | THIN-PAC™ | Nonstandard | Tape & Reel (TR) | Obsolete | Toroidal | - | 47 µH | ±20% | 590 mA | 720mA | Unshielded | 908mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.480" L x 0.370" W (12.20mm x 9.40mm) | 0.118" (3.00mm) |
|
|
FP1012V3-R090-RIND FP1012V3-R090-R FLAT-PAC |
1,622 |
|
Datasheet | FP1012 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 90 nH | ±10% | 84 A | 150A | Unshielded | 138mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.236" W (10.00mm x 6.00mm) | 0.472" (12.00mm) |
|
LDS0705-4R7M-RFIXED IND 4.7UH 3.32A 21MOHM SMD |
1,202 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 3.32 A | 3.53A | Shielded | 21mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

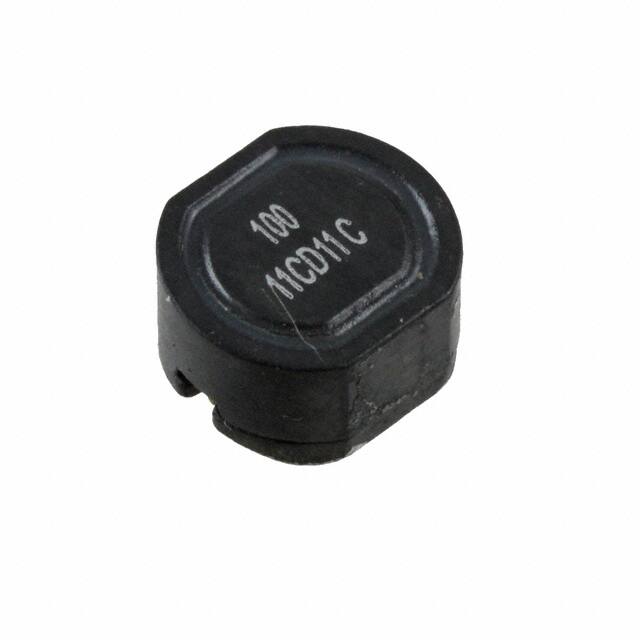

LDS0705-100M-RFIXED IND 10UH 2.54A 36 MOHM SMD |
2,610 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.54 A | 2.61A | Shielded | 36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-150M-RFIXED IND 15UH 2.04A 56 MOHM SMD |
4,447 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 2.04 A | 2.07A | Shielded | 56mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

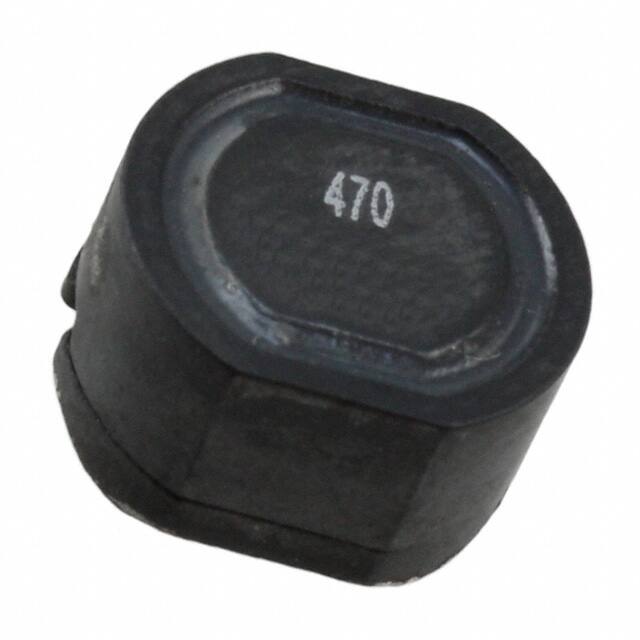

LDS0705-470M-RFIXED IND 47UH 1.21A 158MOHM SMD |
1,403 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.21 A | 1.18A | Shielded | 158mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|

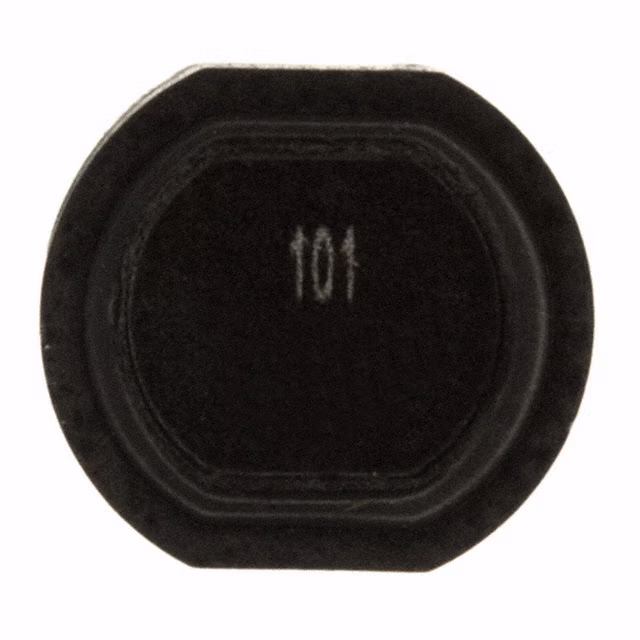

LDS0705-101M-RFIXED IND 100UH 808MA 357MOHM SM |
4,674 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 808 mA | 800mA | Shielded | 357mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-151M-RFIXED IND 150UH 649MA 554MOHM SM |
2,164 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 649 mA | 645mA | Shielded | 554mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
LDS0705-221M-RFIXED IND 220UH 584MA 680MOHM SM |
3,796 |
|
Datasheet | LDS0705 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 584 mA | 541mA | Shielded | 680mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.197" (5.00mm) |
|
MPI4040R1-1R0-RFIXED IND 1UH 3.7A 40 MOHM SMD |
1,759 |
|
Datasheet | MPI4040 | 1816 (4540 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 3.7 A | 7.7A | Shielded | 40mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.047" (1.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
