Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1006R2-R12-RFIXED IND 120NH 45A 0.36MOHM SMD |
4,010 |
|
Datasheet | FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 nH | ±10% | 45 A | 71A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|

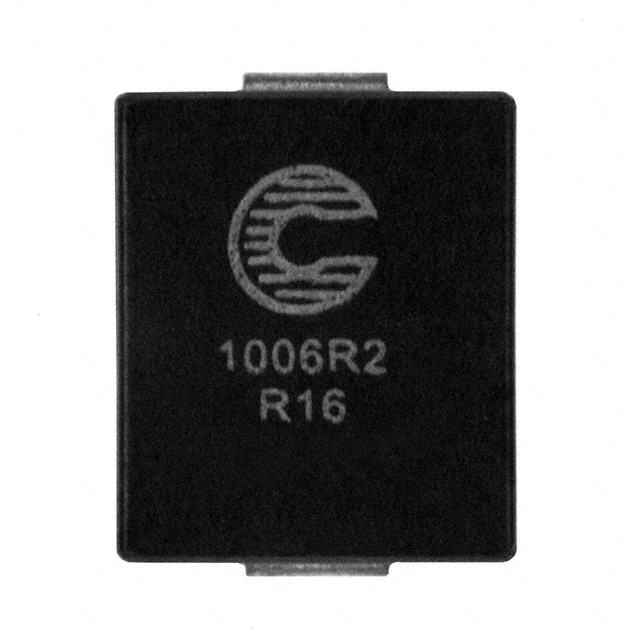

FP1006R2-R16-RFIXED IND 160NH 45A 0.36MOHM SMD |
2,129 |
|
Datasheet | FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 45 A | 55A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
FP1006R2-R22-RFIXED IND 220NH 45A 0.36MOHM SMD |
1,617 |
|
Datasheet | FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 45 A | 38A | Unshielded | 0.36mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.315" W (10.00mm x 8.00mm) | 0.236" (6.00mm) |
|
|
FP2-D047-RFIXED IND 47NH 37A 0.26 MOHM SMD |
1,006 |
|
Datasheet | FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 nH | ±15% | 37 A | 42A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
|
FP2-D082-RFIXED IND 82NH 37A 0.26 MOHM SMD |
1,966 |
|
Datasheet | FLAT-PAC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 nH | ±15% | 37 A | 26A | Unshielded | 0.26mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.283" L x 0.264" W (7.20mm x 6.70mm) | 0.118" (3.00mm) |
|
FP0807R1-R16-RFIXED IND 160NH 49A 0.5 MOHM SMD |
1,813 |
|
Datasheet | FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 160 nH | ±10% | 49 A | 48A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
|
FP0807R1-R18-RFIXED IND 180NH 49A 0.5 MOHM SMD |
2,165 |
|
Datasheet | FLAT-PAC, FP0807 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 49 A | 42A | Unshielded | 0.5mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.291" W (7.60mm x 7.40mm) | 0.276" (7.00mm) |
|
HCM1A1305V2-7R8-RFIXED IND 7.8UH 7.6A 17.3MOHM SM |
2,898 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 7.8 µH | ±20% | 7.6 A | 15A | Shielded | 17.3mOhm Max | - | 10MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
HCM1A1305V2-R22-RFIXED IND 220NH 48A 0.61MOHM SMD |
3,477 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 48 A | 60A | Shielded | 0.61mOhm Max | - | 107MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
|
|
HCM1A1305V2-8R2-RFIXED IND 8.2UH 7.5A 18.5MOHM SM |
3,693 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 7.5 A | 13A | Shielded | 18.5mOhm Max | - | 9MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.197" (5.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
