Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCF1305-1R0-RFIXED IND 1UH 22A 1.9 MOHM SMD |
3,161 |
|
Datasheet | HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 22 A | 24A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
SD25-4R7-RFIXED IND 4.7UH 2.39A 46.7 MOHM |
6,255 |
|
Datasheet | SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.39 A | 1.83A | Shielded | 46.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
FP3-3R3-RFIXED IND 3.3UH 3.63A 30MOHM SMD |
8,512 |
|
Datasheet | FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±15% | 3.63 A | 5.5A | Unshielded | 30mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|

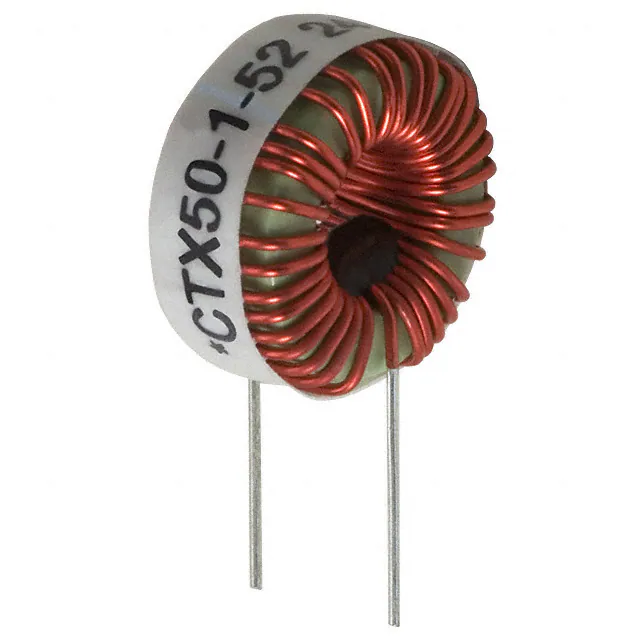

CTX50-1-52-RFIXED IND 50UH 2.6A 71.5 MOHM TH |
1,051 |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 50 µH | ±20% | 2.6 A | 2.7A | Unshielded | 71.5mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.638" Dia x 0.354" W (16.20mm x 9.00mm) | - |
|
HCV1707R1-R48-RFIXED IND 480NH 32A 1.7 MOHM SMD |
6,480 |
|
Datasheet | HCV1707 | Nonstandard, 3 Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 480 nH | ±10% | 32 A | 47A | Unshielded | 1.7mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 3-SMD | 0.681" L x 0.551" W (17.30mm x 14.00mm) | 0.272" (6.90mm) |
|
EXL1V1010-100-RINDUCTOR MOLDED 10UH 14.6A |
339 |
|
Datasheet | EXL1V1010 | Nonstandard | Tape & Reel (TR) | Active | Molded | Alloy Powder | 10 µH | ±20% | 15.5 A | 14.6A | Shielded | 13.75mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.469" L x 0.433" W (11.90mm x 11.00mm) | 0.394" (10.00mm) |
|

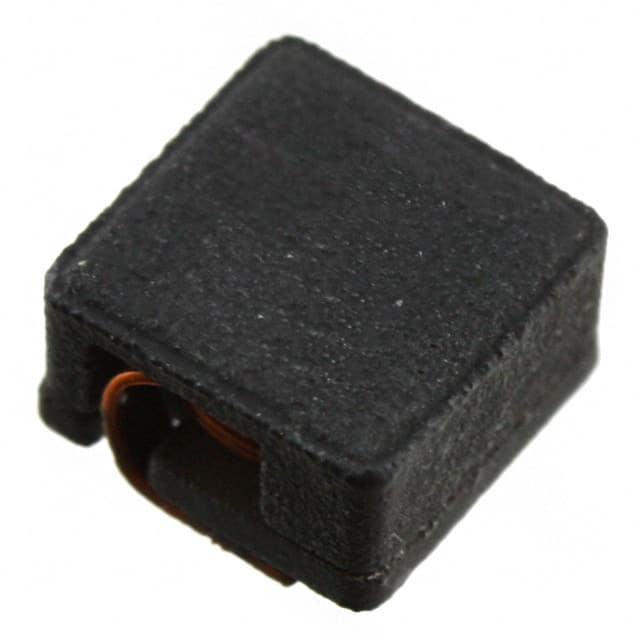

HCP0704-1R0-RFIXED IND 1UH 12A 6.2 MOHM SMD |
1,000 |
|
Datasheet | HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±25% | 12 A | 17A | Shielded | 6.2mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.165" (4.20mm) |
|

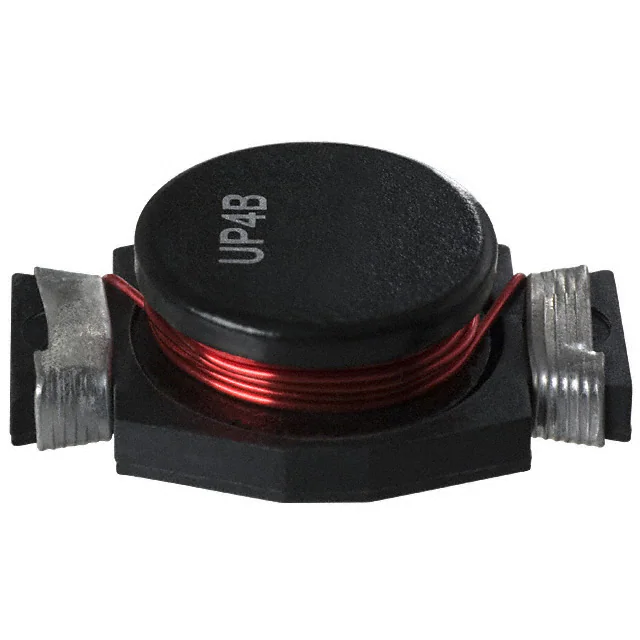

UP4B-101-RFIXED IND 100UH 2A 170 MOHM SMD |
772 |
|
Datasheet | UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 2 A | 3.6A | Unshielded | 170mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
SD3118-2R2-RFIXED IND 2.2UH 1.5A 74 MOHM SMD |
3,641 |
|
Datasheet | SD3118 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 1.5 A | 2A | Shielded | 74mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.071" (1.80mm) |
|

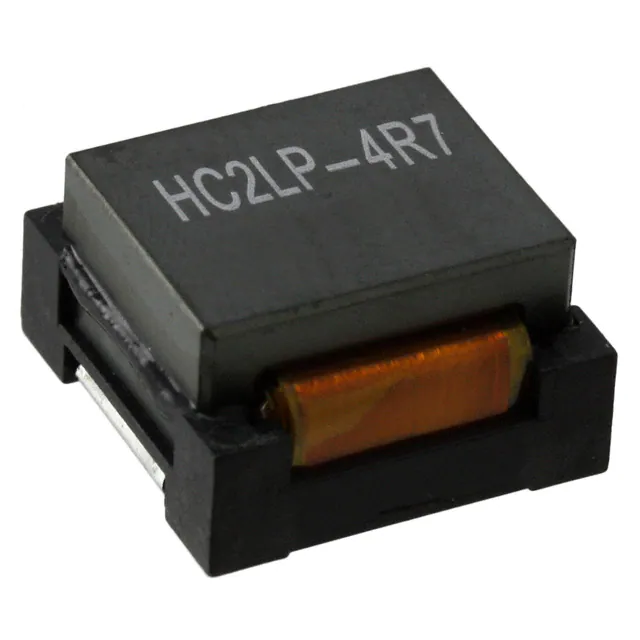

HC2LP-4R7-RFIXED IND 4.7UH 17A 4.6 MOHM SMD |
4,076 |
|
Datasheet | HC2LP | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 17 A | 21.25A | Unshielded | 4.6mOhm Max | - | - | - | -40°C ~ 85°C | 300 kHz | - | Surface Mount | - | 0.756" L x 0.756" W (19.20mm x 19.20mm) | 0.440" (11.18mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
