Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX20-5-52M-RFIXED IND 20UH 7.8A 26 MOHM TH |
1,396 |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 20 µH | ±20% | 7.8 A | 9.3A | Unshielded | 26mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.004" (25.50mm) |
|
|
CTX500-1-52M-RFIXED IND 500UH 1.7A 361 MOHM TH |
3,789 |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 500 µH | ±20% | 1.7 A | 1.9A | Unshielded | 361mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 0.984" (25.00mm) |
|
CTX10-7-52LP-RFIXED IND 10UH 11.4A 8 MOHM TH |
2,302 |
|
Datasheet | CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.012" Dia (25.70mm) | 0.709" (18.00mm) |
|
CTX150-2-52M-RFIXED IND 150UH 4.3A 71.9MOHM TH |
2,216 |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 150 µH | ±20% | 4.3 A | 4A | Unshielded | 71.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 1.280" (32.50mm) |
|

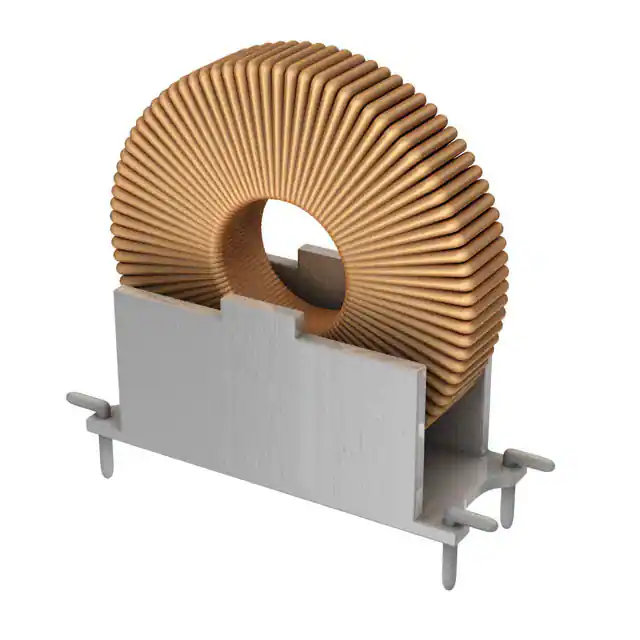

CTX10-7-52M-RFIXED IND 10UH 11.4A 8 MOHM TH |
4,049 |
|
Datasheet | CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.394" L x 0.854" W (35.40mm x 21.70mm) | 1.051" (26.70mm) |
|
CTX22-15557FIXED IND 1MH 1.3A 470 MOHM SMD |
1,737 |
|
Datasheet | PFC | 10-SMD, Gull Wing | Bulk | Obsolete | Toroidal | Ferrite | 1 mH | - | 1.3 A | - | Unshielded | 470mOhm Max | - | - | - | -20°C ~ 105°C | 100 kHz | - | Surface Mount | 10-SMT | 1.252" L x 1.063" W (31.80mm x 27.00mm) | 0.516" (13.10mm) |
|
|
CTX750-1-52LP-RFIXED IND 750UH 1.8A 434 MOHM TH |
4,511 |
|
Datasheet | CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 1.8 A | 2.4A | Unshielded | 434mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 0.685" (17.40mm) |
|

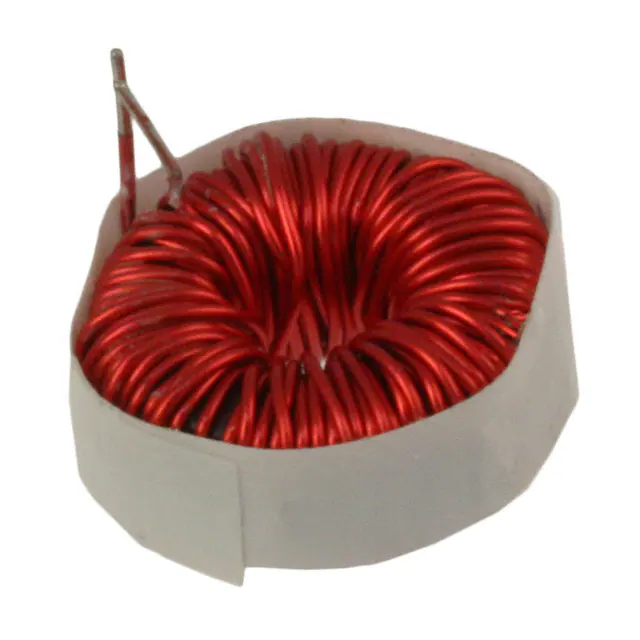

CTX16-18405-RFIXED IND 140UH 3.2A 190 MOHM TH |
4,347 |
|
Datasheet | PFC | Radial, Horizontal, 4 Leads (Open) | Bulk | Obsolete | Toroidal | - | 140 µH | - | 3.2 A | - | Unshielded | 190mOhm Max | - | - | - | -20°C ~ 105°C | - | - | Through Hole | - | 0.827" Dia (21.00mm) | 0.433" (11.00mm) |
|
|
CTX750-1-52-RFIXED IND 750UH 1.8A 434 MOHM TH |
1,325 |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 750 µH | ±20% | 1.8 A | 2.4A | Unshielded | 434mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia x 0.685" W (29.80mm x 17.40mm) | - |
|
|
CTX1000-1-52LPRFIXED IND 1MH 1.5A 638 MOHM TH |
3,883 |
|
Datasheet | CTX | Radial, Horizontal (Open) | Bulk | Active | Toroidal | Iron Powder | 1 mH | ±20% | 1.5 A | 2.1A | Unshielded | 638mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.173" Dia (29.80mm) | 1.228" (31.20mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
