Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPIA2510V2-R47-RFIXED IND 470NH 4.4A 25MOHM SMD |
2,734 |
|
Datasheet | MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 4.4 A | 6A | Shielded | 25mOhm Max | - | 100MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
HCM1A1307V2-100-RFIXED IND 10UH 8.3A 17.2MOHM SMD |
2,734 |
|
Datasheet | HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 10 µH | ±20% | 8.3 A | 13.5A | Shielded | 17.2mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
FP1006R1-R10-RFIXED IND 100NH 53A 0.27MOHM SMD |
3,117 |
|
Datasheet | FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 nH | ±10% | 53 A | 85A | Unshielded | 0.27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.236" (6.00mm) |
|
HCM1103-R36-RFIXED IND 360NH 23A 1.3 MOHM SMD |
4,904 |
|
Datasheet | HCM1103 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 360 nH | ±20% | 23 A | 28A | Shielded | 1.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.437" L x 0.394" W (11.10mm x 10.00mm) | 0.118" (3.00mm) |
|

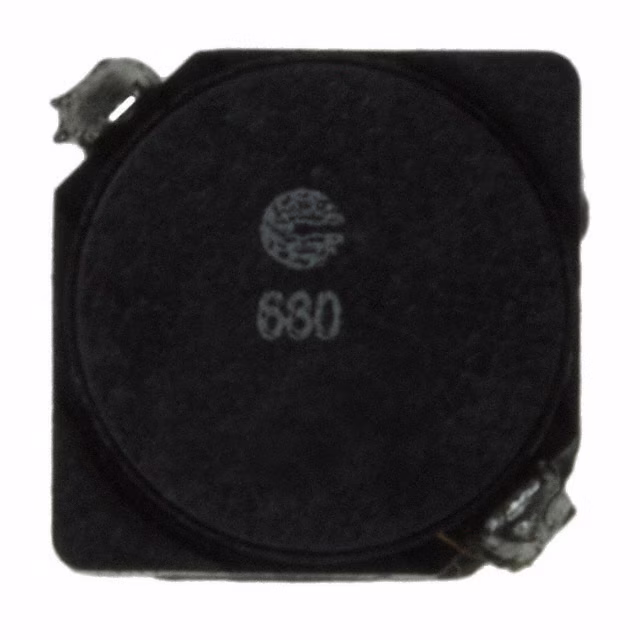

SD7030-680-RFIXED IND 66.6UH 850MA 304 MOHM |
3,091 |
|
Datasheet | SD7030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 66.6 µH | ±30% | 850 mA | 650mA | Shielded | 304mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.276" W (7.00mm x 7.00mm) | 0.118" (3.00mm) |
|
FP1008R4-R150-RFIXED IND 150NH SMD |
4,772 |
|
Datasheet | FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | - | - | - | Unshielded | - | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
DRA125-6R8-RFIXED IND 6.8UH 6.81A 12MOHM SMD |
1,427 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 6.8 µH | ±20% | 6.81 A | 8.74A | Shielded | 12mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
DRA127-820-RFIXED IND 82UH 2.008A 155MOHM SM |
1,329 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 82 µH | ±20% | 2.008 A | 3.84A | Shielded | 155mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA124-151-RFIXED IND 150UH 967MA 454MOHM SM |
2,260 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 150 µH | ±20% | 967 mA | 1.621A | Shielded | 454mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
|
DRA127-681-RFIXED IND 680UH 736MA 1.15OHM SM |
2,788 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 736 mA | 1.33A | Shielded | 1.15Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
