Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LD2-102-HVIND DRUM CORE 1000UH 0.36A |
2,614 |
|
Datasheet | LD2-HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 mH | ±20% | 440 mA | 360mA | Unshielded | 4Ohm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.209" (5.30mm) |
|

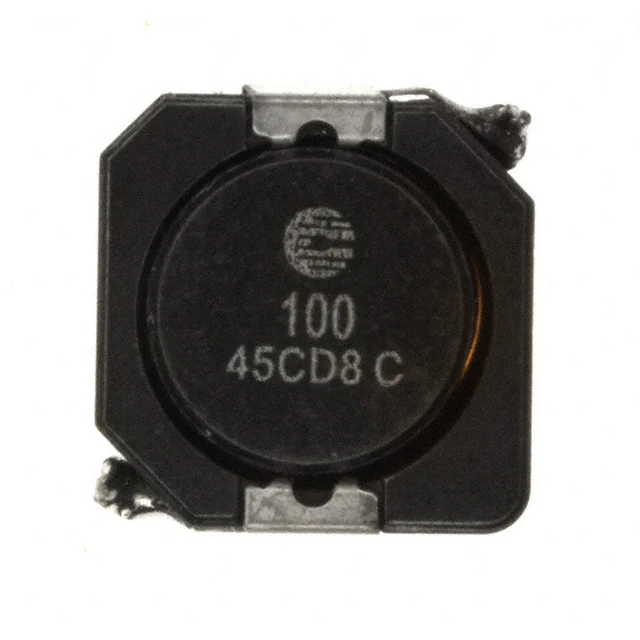

DR1050-100-RFIXED IND 10UH 4.8A 22.5MOHM SMD |
4,763 |
|
Datasheet | DR1050 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4.8 A | 4.58A | Shielded | 22.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.406" W (10.50mm x 10.30mm) | 0.197" (5.00mm) |
|
DR125-680-RFIXED IND 68UH 2.22A 101MOHM SMD |
3,105 |
|
Datasheet | DR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.22 A | 2.7A | Shielded | 101mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
FP1007R6-R39-RFIXED IND 390NH 61A 0.29MOHM SMD |
2,808 |
|
Datasheet | FLAT-PAC, FP1007R6 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 nH | ±10% | 61 A | 28A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.413" L x 0.315" W (10.50mm x 8.00mm) | 0.276" (7.00mm) |
|
FP1507R1-R185-RFIXED IND 185NH 45A 0.52MOHM SMD |
1,924 |
|
Datasheet | FP1507R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 185 nH | ±10% | 45 A | 40A | Shielded | 0.52mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2-SMD | 0.575" L x 0.335" W (14.60mm x 8.50mm) | 0.264" (6.70mm) |
|
HCMA1707-330-RFIXED IND 33UH 9A 37 MOHM SMD |
3,482 |
|
Datasheet | HCMA1707 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 33 µH | ±20% | 9 A | 10A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
FP2207R1-R230-RFIXED IND 230NH 50A 470 MOHM SMD |
4,892 |
|
Datasheet | FP2207 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 230 nH | ±10% | 50 A | 72A | Shielded | 0.47mOhm | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.870" L x 0.311" W (22.10mm x 7.90mm) | 0.285" (7.25mm) |
|
MCL1608V2-3R3-RFIXED IND 3.3NH 500MA 150MOHM SM |
1,982 |
|
Datasheet | MCL1608V2 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 3.3 nH | ±0.3nH | 500 mA | - | Unshielded | 150mOhm Max | 10 @ 100MHz | 6GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
MCL1608V1-R82-RFIXED IND 820NH 100MA 600MOHM SM |
1,518 |
|
Datasheet | MCL1608V1 | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 820 nH | ±20% | 100 mA | - | Unshielded | 600mOhm Max | - | 85MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.039" (1.00mm) |
|
SDCL1V4020-1R0M-RIND 1.0 UH 8.7A SMT |
4,820 |
|
Datasheet | SDCL1V40 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 µH | ±20% | 5.8 A | 8.7A | Shielded | 26mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.079" (2.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
