Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DRA127-4R7-RFIXED IND 4.7UH 8.14A 9.4MOHM SM |
229 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 4.7 µH | ±20% | 8.14 A | 16.5A | Shielded | 9.4mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRA124-1R0-RFIXED IND 1UH 11.65A 3.1MOHM SMD |
1,504 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1 µH | ±20% | 11.65 A | 22A | Shielded | 3.1mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|
FP3-100-RFIXED IND 10UH 2.3A 101 MOHM SMD |
1,247 |
|
Datasheet | FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 10 µH | ±15% | 2.3 A | 3A | Shielded | 101mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
|
DRA124-681-RFIXED IND 680UH 466MA 1.96OHM SM |
750 |
|
Datasheet | DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 466 mA | 759mA | Shielded | 1.96Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.177" (4.50mm) |
|

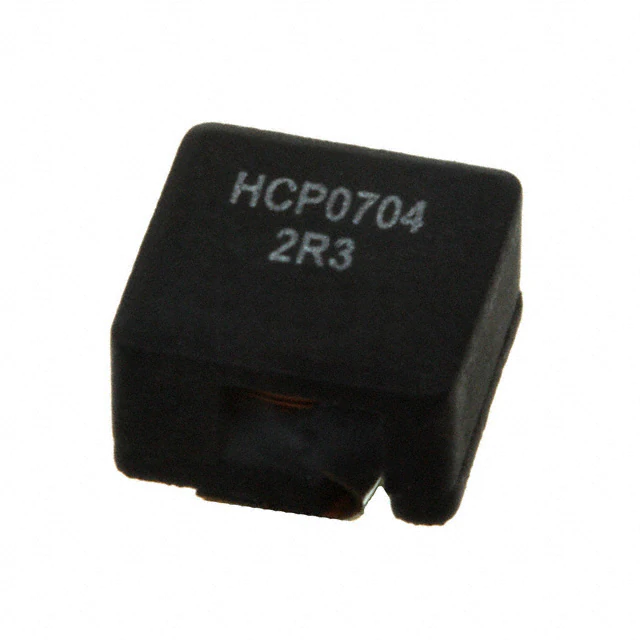

HCP0704-2R3-RFIXED IND 2.3UH 7.5A 16.5MOHM SM |
818 |
|
Datasheet | HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.3 µH | ±25% | 7.5 A | 11.5A | Shielded | 16.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
|
HCV1206-1R5-RFIXED IND 1.5UH 12A 6 MOHM SMD |
535 |
|
Datasheet | HCV1206 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±10% | 12 A | 21A | Unshielded | 6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.386" W (12.20mm x 9.80mm) | 0.201" (5.10mm) |
|
|
UP5S-220-RFIXED IND 22UH 3.15A 45 MOHM SMD |
644 |
|
Datasheet | UNI-PAC™ 5S | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.15 A | 5.05A | Shielded | 45mOhm Max | - | 15MHz | - | -25°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.724" L x 0.591" W (18.40mm x 15.00mm) | 0.295" (7.50mm) |
|
CTX250-1-52-RFIXED IND 250UH 1.9A 221 MOHM TH |
2,100 |
|
Datasheet | CTX | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.9 A | 2.2A | Unshielded | 221mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 0.823" Dia x 0.512" W (20.90mm x 13.00mm) | - |
|
|
FP3-1R0-RFIXED IND 1UH 6.26A 11.2MOHM SMD |
2,094 |
|
Datasheet | FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±15% | 6.26 A | 9.5A | Unshielded | 11.2mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
HCP0805-1R5-RFIXED IND 1.5UH 13.3A 6.8MOHM SM |
400 |
|
Datasheet | HCP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 13.3 A | 18A | Shielded | 6.8mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.291" W (7.70mm x 7.40mm) | 0.197" (5.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
