Fixed Inductors
Explore Fixed Inductors parts from multiple manufacturers, with model information, availability, datasheets and technical specifications for engineering and purchasing.
For parts that are not shown in the list, send the manufacturer part number, quantity or BOM to JIEXIN Electronics. Our team can assist with availability checks and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HK1608R27G-TFIXED INDUCTOR SMD |
1,223 |
|
Datasheet | HK | 0201 (0603 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 270 nH | ±2% | 150 mA | - | Unshielded | 1.9Ohm Max | 8 @ 50MHz | 400MHz | - | -40°C ~ 85°C | 50 MHz | - | Surface Mount | 0201 | 0.024" L x 0.012" W (0.60mm x 0.30mm) | 0.013" (0.33mm) |
|
|
CKP3225N1R0M-TFIXED INDUCTOR SMD |
2,828 |
|
Datasheet | CK, P Type | 1210 (3225 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | 1210 (3225 Metric) | 0.126" L x 0.098" W (3.20mm x 2.50mm) | - |
|
|
HK10052N7C-TFIXED INDUCTOR SMD |
1,471 |
|
Datasheet | HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.7 nH | ±0.2nH | 300 mA | - | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK100515NJ-T8FIXED INDUCTOR SMD |
1,872 |
|
Datasheet | HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 460mOhm Max | 8 @ 100MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK10053N9J-TVFIXED INDUCTOR SMD |
3,949 |
|
Datasheet | HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 3.9 nH | ±5% | 300 mA | - | Unshielded | 210mOhm Max | 8 @ 100MHz | 4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK1005R27H-TFIXED INDUCTOR SMD |
1,128 |
|
Datasheet | HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 270 nH | ±3% | 110 mA | - | Unshielded | 4.8Ohm Max | 8 @ 100MHz | 400MHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK100568NH-TVFIXED INDUCTOR SMD |
4,793 |
|
Datasheet | HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 68 nH | ±3% | 180 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 750MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
|
HK10052N2C-TFIXED INDUCTOR SMD |
3,582 |
|
Datasheet | HK | 01005 (0402 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | Ceramic | 2.2 nH | ±0.2nH | 300 mA | - | Unshielded | 130mOhm Max | 8 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 01005 | 0.016" L x 0.008" W (0.40mm x 0.20mm) | 0.009" (0.22mm) |
|
MDRH6045S1681MFIXED IND 680UH 3.7 OHM SMD |
2,529 |
|
Datasheet | - | - | Tape & Reel (TR) | Active | Molded | - | 680 µH | - | - | 0.40mA | - | 3.7Ohm | - | - | - | -40°C ~ 125°C | - | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.177" (4.50mm) |
|
|
AISC-0402F-R13M-TFIXED INDUCTOR |
4,903 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 130 nH | ±20% | 640 mA | - | Unshielded | 230mOhm Max | - | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-R13K-TFIXED INDUCTOR |
3,929 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 130 nH | ±10% | 640 mA | - | Unshielded | 230mOhm Max | - | 1GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-48NM-TFIXED INDUCTOR |
3,936 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 48 nH | ±20% | 1.1 A | - | Unshielded | 78mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-18NM-TFIXED INDUCTOR |
2,891 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 nH | ±20% | 1.4 A | - | Unshielded | 46mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-48NK-TFIXED INDUCTOR |
1,650 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 48 nH | ±10% | 1.1 A | - | Unshielded | 78mOhm Max | - | 1.4GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-18NK-TFIXED INDUCTOR |
2,575 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 18 nH | ±10% | 1.4 A | - | Unshielded | 46mOhm Max | - | 3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-70NK-TFIXED INDUCTOR |
2,928 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 70 nH | ±10% | 820 mA | - | Unshielded | 120mOhm Max | - | 1.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402F-70NM-TFIXED INDUCTOR |
1,915 |
|
Datasheet | AISC-0402F | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 70 nH | ±20% | 820 mA | - | Unshielded | 120mOhm Max | - | 1.3GHz | - | -40°C ~ 85°C | 100 MHz | - | Surface Mount | 0402 | 0.043" L x 0.024" W (1.10mm x 0.60mm) | 0.028" (0.70mm) |
|
|
AISC-0402-1N2J-TFIXED INDUCTOR 0402 SMD |
3,791 |
|
Datasheet | AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 1.2 nH | ±5% | 1.3 A | - | Unshielded | 60mOhm Max | 13 @ 250MHz | 12GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|
|
AISC-0402-2N7J-TFIXED INDUCTOR 0402 SMD |
4,210 |
|
Datasheet | AISC-0402 | 0402 (1005 Metric) | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ceramic | 2.7 nH | ±5% | 640 mA | - | Unshielded | 120mOhm Max | 13 @ 250MHz | 10.4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0402 | 0.047" L x 0.025" W (1.19mm x 0.64mm) | 0.026" (0.66mm) |
|

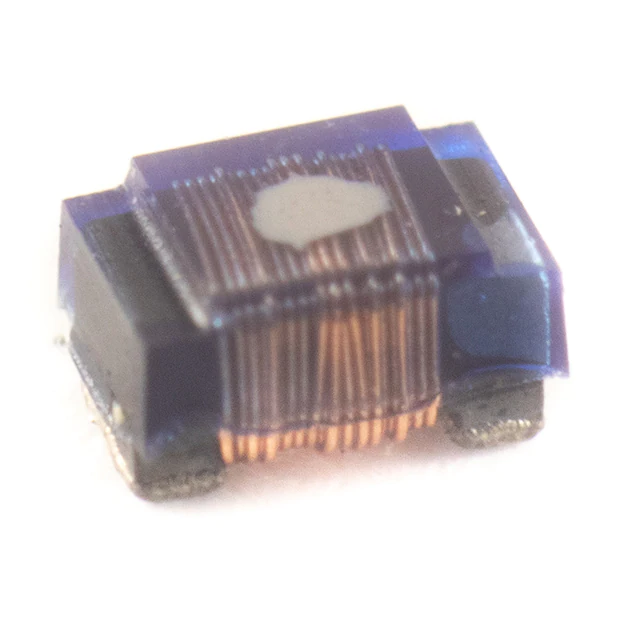

LS03-R47J-RC.47UH +/- 5% SMD INDUCTOR |
4,676 |
|
Datasheet | - | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±5% | 1.05 A | - | Unshielded | 620mOhm Max | 17 @ 7.9MHz | 720MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.040" (1.02mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
