Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S4924-334KFIXED IND 330UH 218MA 6.4OHM SMD |
2,798 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 330 µH | ±10% | 218 mA | 55mA | Shielded | 6.4Ohm Max | 55 @ 790kHz | 6.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-394KFIXED IND 390UH 203MA 7.4OHM SMD |
3,000 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 390 µH | ±10% | 203 mA | 46mA | Shielded | 7.4Ohm Max | 60 @ 790kHz | 6.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-474KFIXED IND 470UH 178MA 9.5OHM SMD |
1,606 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 470 µH | ±10% | 178 mA | 43mA | Shielded | 9.5Ohm Max | 60 @ 790kHz | 5.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-564KFIXED IND 560UH 171MA 10.5OHM SM |
2,032 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 560 µH | ±10% | 171 mA | 40mA | Shielded | 10.5Ohm Max | 60 @ 790kHz | 4.7MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|

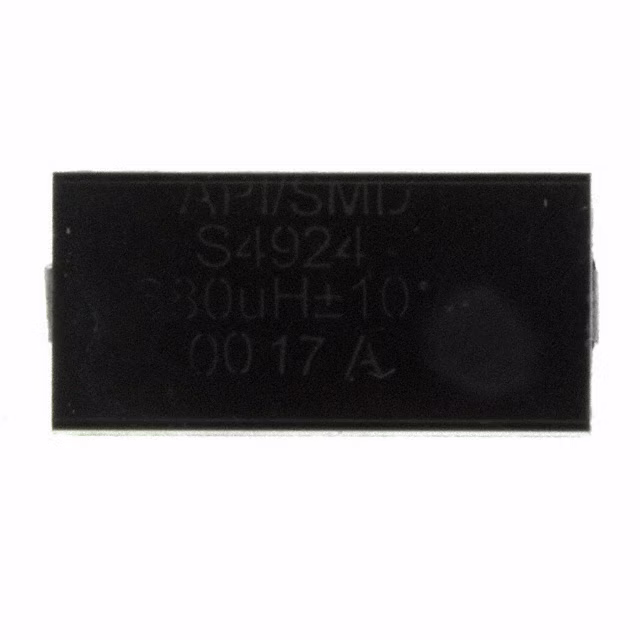

S4924-684KFIXED IND 680UH 160MA 11.8OHM SM |
4,344 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±10% | 160 mA | 38mA | Shielded | 11.8Ohm Max | 60 @ 790kHz | 4.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-824KFIXED IND 820UH 152MA 13 OHM SMD |
2,621 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 820 µH | ±10% | 152 mA | 33mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924-105KFIXED IND 1MH 134MA 17.5 OHM SMD |
3,076 |
|
Datasheet | S4924 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1 mH | ±10% | 134 mA | 29mA | Shielded | 17.5Ohm Max | 60 @ 790kHz | 3.8MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.220" (5.58mm) |
|
|
S4924R-101KFIXED IND 100NH 3.9A 25 MOHM SMD |
2,517 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Phenolic | 100 nH | ±10% | 3.9 A | 3.9A | Shielded | 25mOhm Max | 50 @ 25MHz | 450MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-102KFIXED IND 1UH 2.32A 70 MOHM SMD |
2,359 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 1 µH | ±10% | 2.32 A | 2.32A | Shielded | 70mOhm Max | 44 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
S4924R-103KFIXED IND 10UH 485MA 1.62OHM SMD |
3,245 |
|
Datasheet | S4924R | Nonstandard | Tape & Reel (TR) | Active | - | Iron | 10 µH | ±10% | 485 mA | 485mA | Shielded | 1.62Ohm Max | 50 @ 7.9MHz | 46MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
