Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2474R-23LFIXED IND 68UH 1.56A 145 MOHM TH |
3,650 |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 68 µH | ±15% | 1.56 A | 770mA | Unshielded | 145mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
S1008R-471KFIXED IND 470NH 815MA 170MOHM SM |
1,903 |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 470 nH | ±10% | 815 mA | - | Shielded | 170mOhm Max | 40 @ 25MHz | 255MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
DC780R-333KFIXED IND 33UH 5.5A 29 MOHM TH |
2,034 |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 5.5 A | 19A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
1025R-32KFIXED IND 3.3UH 285MA 850MOHM TH |
4,986 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 3.3 µH | ±10% | 285 mA | - | Unshielded | 850mOhm Max | 45 @ 7.9MHz | 90MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
1812R-152JFIXED IND 1.5UH 578MA 600MOHM SM |
4,584 |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 1.5 µH | ±5% | 578 mA | - | Unshielded | 600mOhm Max | 50 @ 7.9MHz | 70MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
S1812R-684KFIXED IND 680UH 79MA 32 OHM SMD |
3,223 |
|
Datasheet | S1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 µH | ±10% | 79 mA | - | Shielded | 32Ohm Max | 40 @ 790kHz | 2.6MHz | - | -55°C ~ 125°C | 790 kHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
SPD127R-103MFIXED IND 10UH 5.4A 40 MOHM SMD |
2,389 |
|
Datasheet | SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.4 A | 5.4A | Shielded | 40mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

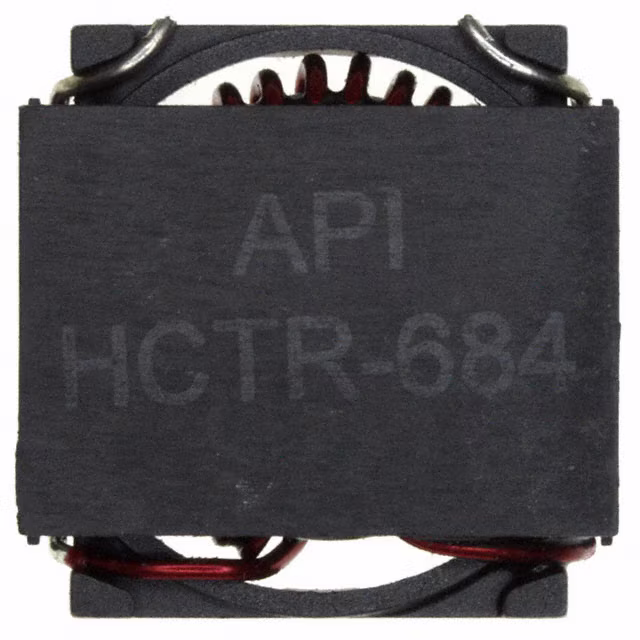

HCTR-684FIXED IND 29UH 6.57A 25 MOHM SMD |
3,221 |
|
Datasheet | HCTR | Nonstandard | Bulk | Active | Toroidal | Iron Powder | 29 µH | ±25% | 6.57 A | - | Shielded | 25mOhm Max | 30 @ 100kHz | 16MHz | - | -30°C ~ 130°C | 100 kHz | - | Surface Mount | - | 0.945" L x 0.940" W (24.00mm x 23.88mm) | 0.400" (10.16mm) |
|
2500R-28JFIXED IND 1MH 88MA 16.5 OHM TH |
2,540 |
|
Datasheet | 2500R | Axial | Tape & Reel (TR) | Active | Molded | Iron | 1 mH | ±5% | 88 mA | - | Unshielded | 16.5Ohm Max | 60 @ 790kHz | 2.8MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
1025R-06KFIXED IND 270NH 975MA 160MOHM TH |
1,890 |
|
Datasheet | 1025R | Axial | Tape & Reel (TR) | Active | Molded | Phenolic | 270 nH | ±10% | 975 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
