Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1641R-824KFIXED IND 820UH 80MA 13 OHM TH |
210 |
|
Datasheet | 1641R | Axial | Bulk | Active | Molded | Ferrite | 820 µH | ±10% | 80 mA | 45mA | Shielded | 13Ohm Max | 60 @ 790kHz | 4.2MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
5500R-273KFIXED IND 27UH 6.3A 25 MOHM SMD |
600 |
|
Datasheet | 5500R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 27 µH | ±10% | 6.3 A | 3.38A | Unshielded | 25mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 1.050" L x 0.495" W (26.67mm x 12.57mm) | 0.520" (13.21mm) |
|
ER1025-06KSFIXED IND 270NH 960MA 160MOHM TH |
1,250 |
|
Datasheet | Military, MIL-PRF-39010/08, ER1025 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 270 nH | ±10% | 960 mA | - | Unshielded | 160mOhm Max | 33 @ 25MHz | 430MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|

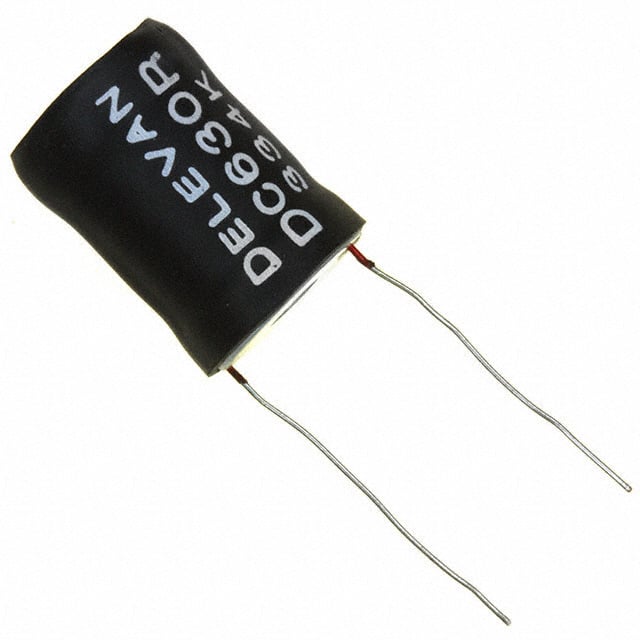

DC630R-334KFIXED IND 330UH 1.72A 315MOHM TH |
362 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±10% | 1.72 A | 3.8A | Unshielded | 315mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
4501R-128MFIXED IND 100UH 650MA 400MOHM SM |
562 |
|
Datasheet | 4501R | Nonstandard | Tape & Reel (TR) | Active | Toroidal | Ferrite | 100 µH | ±20% | 650 mA | 650mA | Shielded | 400mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.360" L x 0.360" W (9.14mm x 9.14mm) | 0.210" (5.33mm) |
|
ER1641-222KSFIXED IND 2.2UH 650MA 190MOHM TH |
463 |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 2.2 µH | ±10% | 650 mA | - | Unshielded | 190mOhm Max | 44 @ 7.9MHz | 100MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-472KSFIXED IND 4.7UH 380MA 550MOHM TH |
433 |
|
Datasheet | Military, MIL-PRF-39010/02, ER1641 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 380 mA | - | Unshielded | 550mOhm Max | 44 @ 7.9MHz | 70MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
ER1641-221JSFIXED IND 220NH 1.1A 67 MOHM TH |
454 |
|
Datasheet | Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 220 nH | ±5% | 1.1 A | - | Unshielded | 67mOhm Max | 49 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
|
ER1641-181JSFIXED IND 180NH 1.3A 47 MOHM TH |
437 |
|
Datasheet | Military, MIL-PRF-39010/01, ER1641 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 180 nH | ±5% | 1.3 A | - | Unshielded | 47mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 105°C | 25 MHz | - | Through Hole | - | 0.162" Dia x 0.410" L (4.11mm x 10.41mm) | - |
|
HRSPD127-154MFIXED IND 150UH 1.4A 294MOHM SMD |
250 |
|
Datasheet | HRSPD127 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 µH | ±20% | 1.4 A | 1.4A | Shielded | 294mOhm Max | - | - | - | -55°C ~ 130°C | 10 kHz | - | Surface Mount | - | 0.475" L x 0.475" W (12.07mm x 12.07mm) | 0.355" (9.02mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
