Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
S1008R-681KFIXED IND 680NH 750MA 200MOHM SM |
2,603 |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 680 nH | ±10% | 750 mA | - | Shielded | 200mOhm Max | 40 @ 25MHz | 186MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-682KFIXED IND 6.8UH 250MA 1.8OHM SMD |
2,153 |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 6.8 µH | ±10% | 250 mA | - | Shielded | 1.8Ohm Max | 30 @ 7.9MHz | 38MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|
|
S1008R-222KFIXED IND 2.2UH 375MA 800MOHM SM |
355 |
|
Datasheet | S1008R | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 375 mA | - | Shielded | 800mOhm Max | 30 @ 7.9MHz | 60MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.115" L x 0.105" W (2.92mm x 2.66mm) | 0.095" (2.41mm) |
|

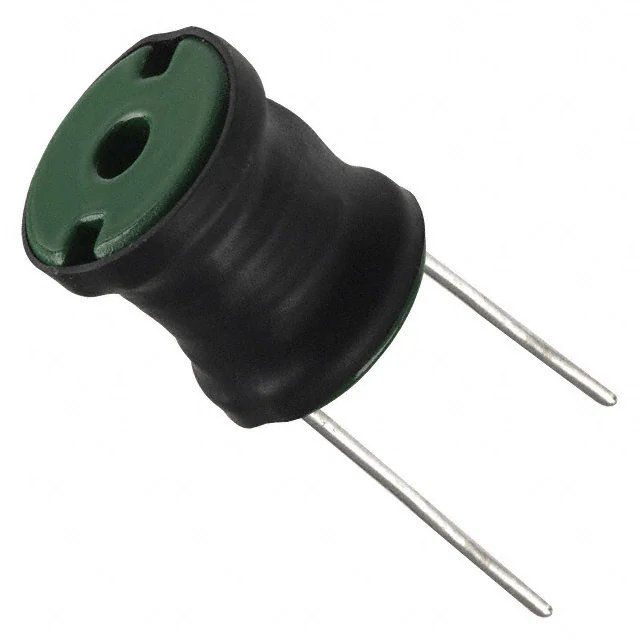

DC780R-822LFIXED IND 8.2UH 11.4A 7 MOHM TH |
563 |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±15% | 11.4 A | 38A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
|
DC780R-225KFIXED IND 2.2MH 800MA 1.54OHM TH |
180 |
|
Datasheet | DC780R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±10% | 800 mA | 2.3A | Unshielded | 1.54Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.772" Dia (19.60mm) | 0.831" (21.10mm) |
|
S1210-222KFIXED IND 2.2UH 470MA 730MOHM SM |
1,000 |
|
Datasheet | S1210 | 1210 (3225 Metric) | Tape & Reel (TR) | Active | - | Ferrite | 2.2 µH | ±10% | 470 mA | - | Shielded | 730mOhm Max | 40 @ 7.9MHz | 80MHz | - | -55°C ~ 125°C | 7.9 MHz | - | Surface Mount | 1210 | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 0.101" (2.57mm) |
|

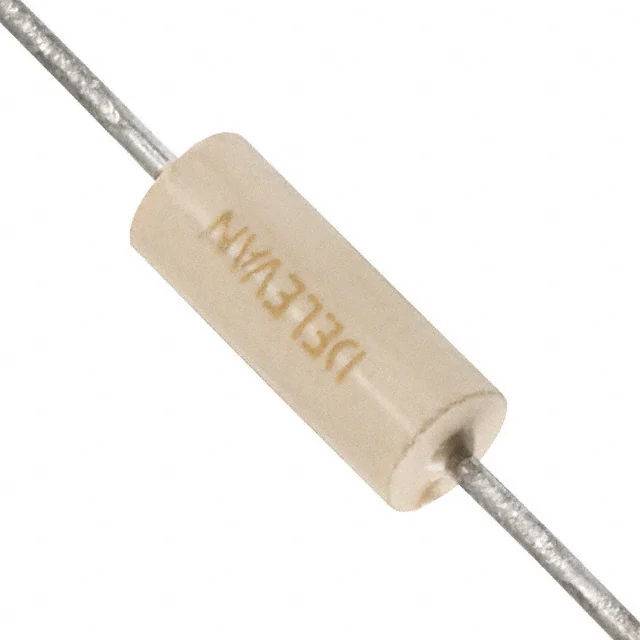

1025R-44KFIXED IND 10UH 144MA 3.3 OHM TH |
795 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 10 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 55 @ 7.9MHz | 50MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-28KFIXED IND 2.2UH 415MA 400MOHM TH |
2,379 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 2.2 µH | ±10% | 415 mA | - | Unshielded | 400mOhm Max | 30 @ 7.9MHz | 115MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-08KFIXED IND 330NH 830MA 220MOHM TH |
1,444 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Phenolic | 330 nH | ±10% | 830 mA | - | Unshielded | 220mOhm Max | 30 @ 25MHz | 410MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-42KFIXED IND 8.2UH 160MA 2.7 OHM TH |
883 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 8.2 µH | ±10% | 160 mA | - | Unshielded | 2.7Ohm Max | 55 @ 7.9MHz | 55MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
