Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

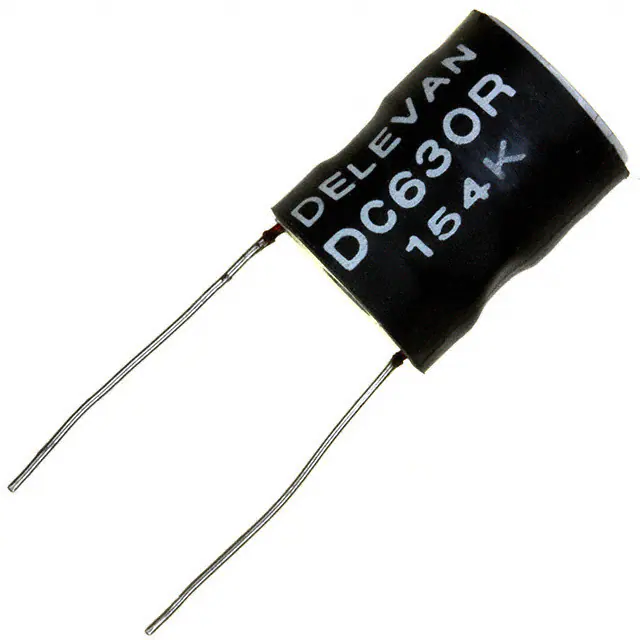

DC630R-154KFIXED IND 150UH 2.97A 111MOHM TH |
248 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±10% | 2.97 A | 5.6A | Unshielded | 111mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|
4590R-683KFIXED IND 68UH 3.355A 59 MOHM TH |
452 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 3.355 A | 2.1A | Unshielded | 59mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-684KFIXED IND 680UH 1.08A 570MOHM TH |
420 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 1.08 A | 670mA | Unshielded | 570mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
4590R-124KFIXED IND 120UH 2.43A 113MOHM TH |
231 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 2.43 A | 1.6A | Unshielded | 113mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
ER1840-22KSFIXED IND 4.7UH 745MA 210MOHM TH |
218 |
|
Datasheet | Military, MIL-PRF-39010/05, ER1840 | Axial | Tape & Reel (TR) | Active | - | Iron | 4.7 µH | ±10% | 745 mA | - | Unshielded | 210mOhm Max | 30 @ 7.9MHz | 60MHz | - | -55°C ~ 105°C | 7.9 MHz | - | Through Hole | - | 0.187" Dia x 0.437" L (4.75mm x 11.10mm) | - |
|
2474R-33LFIXED IND 470UH 590MA 1.03OHM TH |
408 |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 470 µH | ±15% | 590 mA | 290mA | Unshielded | 1.03Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
|
4590R-825KFIXED IND 8.2MH 320MA 6.44OHM TH |
387 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 8.2 mH | ±10% | 320 mA | 200mA | Unshielded | 6.44Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
|
2474R-41LFIXED IND 2.2MH 280MA 4.4 OHM TH |
5,138 |
|
Datasheet | 2474R | Axial | Bulk | Active | Molded | Ferrite | 2.2 mH | ±15% | 280 mA | 140mA | Unshielded | 4.4Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.240" Dia x 0.740" L (6.10mm x 18.80mm) | - |
|
4922R-47LFIXED IND 6.8MH 80MA 62 OHM SMD |
792 |
|
Datasheet | 4922R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 mH | ±15% | 80 mA | 80mA | Unshielded | 62Ohm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.505" L x 0.240" W (12.82mm x 6.09mm) | 0.230" (5.84mm) |
|
SPD127R-154MFIXED IND 150UH 1.4A 320MOHM SMD |
1,466 |
|
Datasheet | SPD127R | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.4 A | 1.4A | Shielded | 320mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
