Fixed Inductors
Review Fixed Inductors Inductors, Coils, Chokes components in this filtered selection. Compare manufacturer information, availability, pricing, datasheets and key specifications to narrow down suitable parts for your application.
If the exact part or specification you need is not listed, send the manufacturer part number, target parameters and quantity to JIEXIN Electronics for sourcing and quotation support.
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Type | Material - Core | Inductance | Tolerance | Current Rating (Amps) | Current - Saturation (Isat) | Shielding | DC Resistance (DCR) | Q @ Freq | Frequency - Self Resonant | Ratings | Operating Temperature | Inductance Frequency - Test | Features | Mounting Type | Supplier Device Package | Size / Dimension | Height - Seated (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

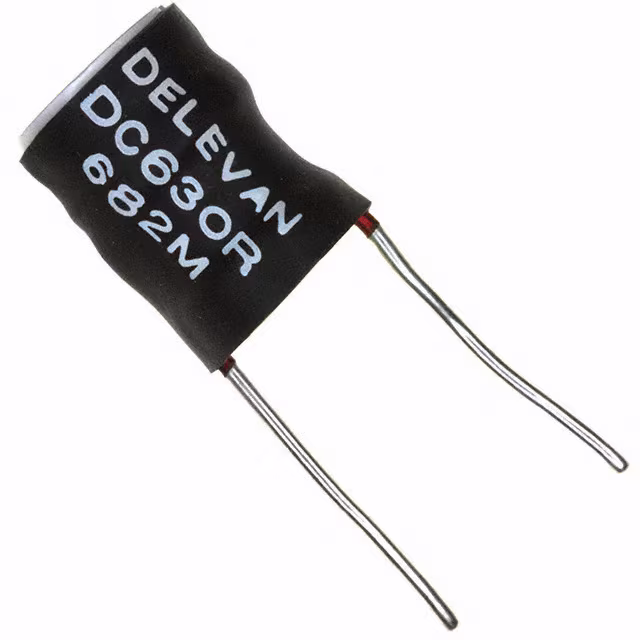

DC630R-682MFIXED IND 6.8UH 10.5A 8 MOHM TH |
1,615 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 10.5 A | 26A | Unshielded | 8mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
|

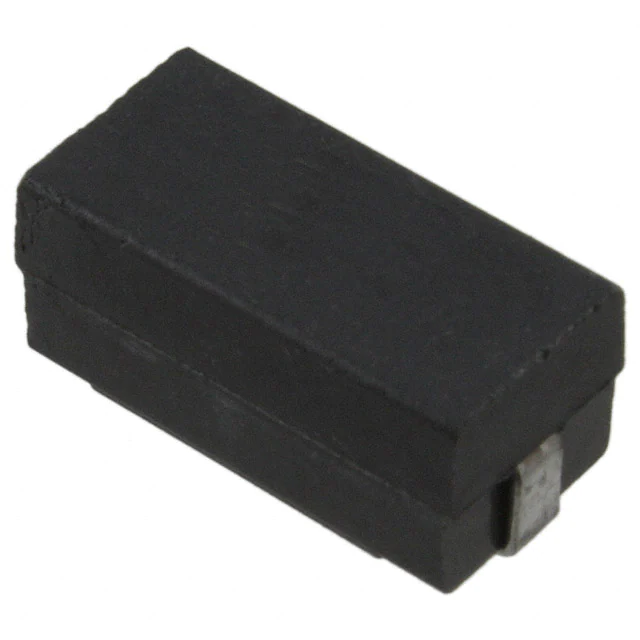

M27/367-21FIXED IND 10UH 2.36A 71 MOHM SMD |
483 |
|
Datasheet | Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 10 µH | ±15% | 2.36 A | 2.36A | Unshielded | 71mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
|
M27/367-12FIXED IND 1.8UH 4.34A 21MOHM SMD |
217 |
|
Datasheet | Military, MIL-PRF-27/367, MIL4922 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 1.8 µH | ±15% | 4.34 A | 4.34A | Unshielded | 21mOhm Max | - | - | - | -55°C ~ 130°C | 1 kHz | - | Surface Mount | - | 0.520" L x 0.250" W (13.21mm x 6.35mm) | 0.230" (5.84mm) |
|
DC630R-473KFIXED IND 47UH 3.98A 62 MOHM TH |
195 |
|
Datasheet | DC630R | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±10% | 3.98 A | 10A | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.630" Dia (16.00mm) | 0.830" (21.08mm) |
.JPG "ER1025-52KR")
|
ER1025-52KRFIXED IND 22UH 140MA 3.3 OHM TH |
202 |
|
Datasheet | Military, MIL-PRF-39010/09, ER1025 | Axial | Tape & Reel (TR) | Active | - | Iron | 22 µH | ±10% | 140 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
ER1537-08KRFIXED IND 680NH 1.1A 150 MOHM TH |
3,351 |
|
Datasheet | Military, MIL-PRF-39010/06, ER1537 | Axial | Tape & Reel (TR) | Active | - | Phenolic | 680 nH | ±10% | 1.1 A | - | Unshielded | 150mOhm Max | 50 @ 25MHz | 250MHz | - | -55°C ~ 125°C | 25 MHz | - | Through Hole | - | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | - |
|
4590R-564KFIXED IND 560UH 1.15A 504MOHM TH |
2,470 |
|
Datasheet | 4590R | Axial | Bulk | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±10% | 1.15 A | 740mA | Unshielded | 504mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.455" Dia x 0.900" L (11.55mm x 22.86mm) | - |
|
1812R-221KFIXED IND 220NH 708MA 400MOHM SM |
734 |
|
Datasheet | 1812R | 1812 (4532 Metric) | Tape & Reel (TR) | Active | - | Iron | 220 nH | ±10% | 708 mA | - | Unshielded | 400mOhm Max | 30 @ 25MHz | 350MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 0.134" (3.40mm) |
|
1025R-52KFIXED IND 22UH 144MA 3.3 OHM TH |
1,500 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 22 µH | ±10% | 144 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
|
|
1025R-54KFIXED IND 27UH 140MA 3.5 OHM TH |
498 |
|
Datasheet | 1025R | Axial | Bulk | Active | Molded | Iron | 27 µH | ±10% | 140 mA | - | Unshielded | 3.5Ohm Max | 50 @ 2.5MHz | 20MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | - |
Frequently Asked Questions
What are Fixed Inductors components used for?
Fixed Inductors components are used in a wide range of electronic equipment and systems. Their exact function depends on the device, circuit design and technical requirements of the application.
How do I choose the right Fixed Inductors part?
Compare the manufacturer part number, key specifications, package type, operating conditions, availability and datasheet information. For replacement projects, always verify the critical electrical and mechanical parameters before selecting an alternative.
Can JIEXIN Electronics help source obsolete or hard-to-find Fixed Inductors parts?
Yes. Send us the required manufacturer part number, quantity or BOM. Our sourcing team can help check stock availability, lead time, alternative sourcing options and quotation details.
How can I request pricing and availability?
Submit the part number, manufacturer and required quantity through our RFQ form. JIEXIN Electronics will review your request and provide available stock, pricing and sourcing information.
